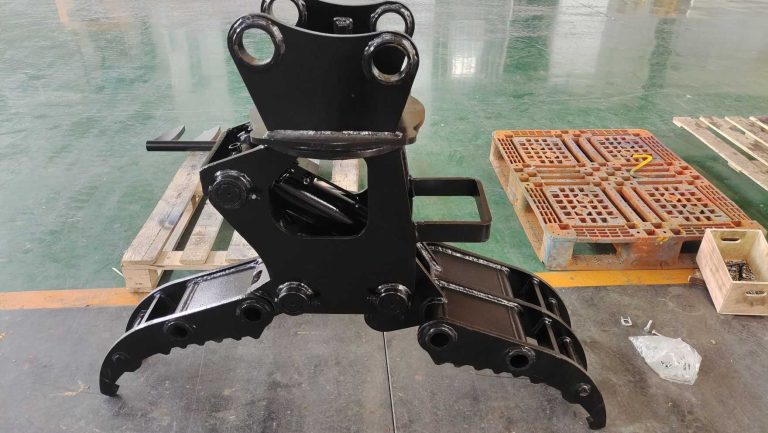

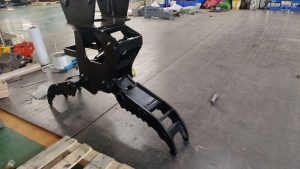

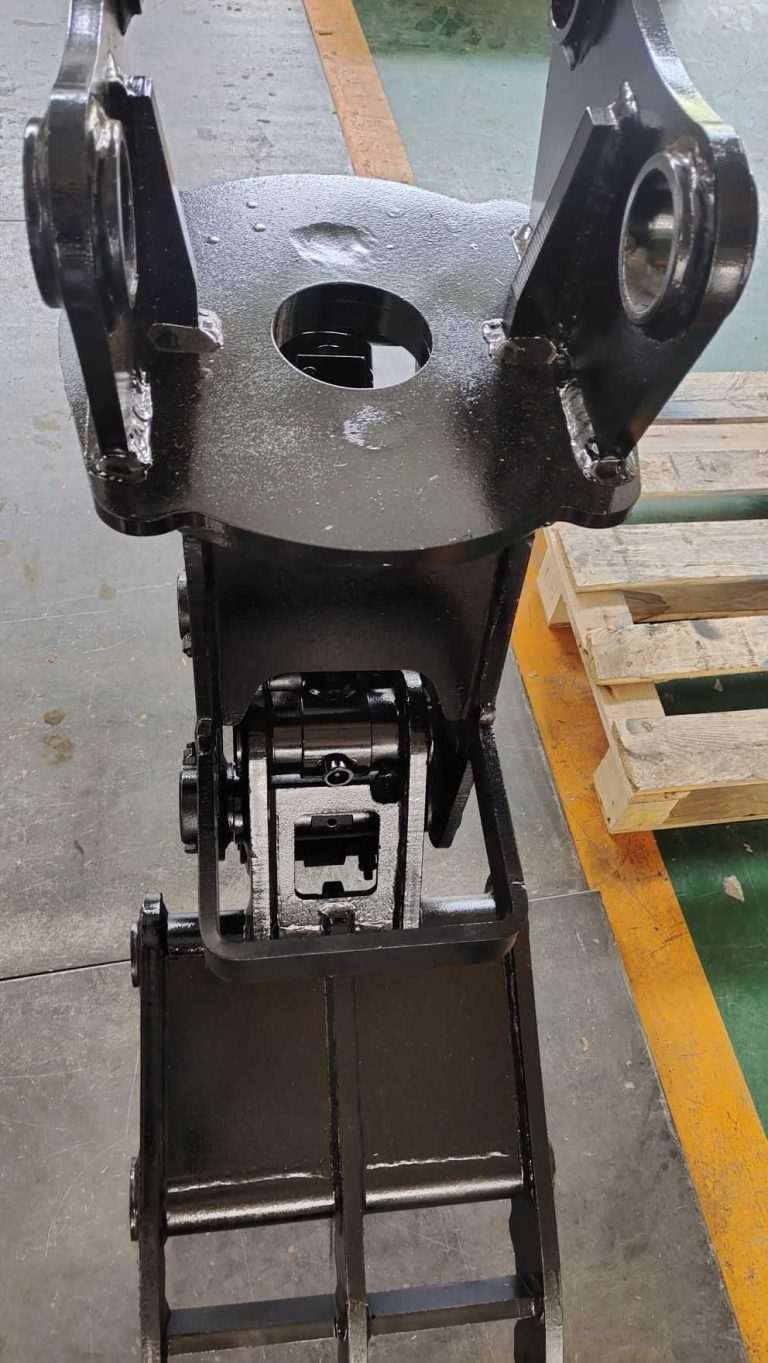

DM03 Japan Type grapple

Experts recommend：

METDEEM Japan rock grapples are available with open or closed shells/tines depending on the job and the type of material to be handled. Manufactured of high quality Q355Mn steel, all bearings are heavy-duty and sealed for high performance. .

Chat Now

Chat Now

Main features of METDEEM Japan Type Grapple

1.Light weight design, maximum opening size.

2.Q355B MN steel material, high strength.

3.Pin and bush heat-treated, increase strength and wear-resistance.

4.Welders with ten years of experience, the welding process removes the hard force, and there will be no welding cracks for our hydraulic steel grapple.Designed and built to meet your needs and specifications.

METDEEM brand Japan grapples has a large jaw opening that allows it to pick up large materials, and the hydraulic design of the grapple give it better grip, so it can grab large and uneven loads, increasing productivity and efficiency in loading cycles.

Category	Unit	DM01-B1	DM03-B	DM04-B	DM06-B	DM08-B
Max.Opening	mm	804	1284	1671	1900	2263
Weight	Kg	75	243	417	710	1120
WorkingPressure	Bar	120-150	1632	160-180	180-200	200-220
WorkingFlow	Lpm	20-30	20-30	20-30	30-45	50-70
ClowLength	mm	407	730	905	1075	1260
Excavator	Ton	1-3	3-5	6-8	12-15	18-24

♥ The Specifications of this equipment are subject to change for improvements.

Our Services

1.We can offer a comprehensive range of hydraulic grapple, Eccentric Pin hydraulic grapple, stone grapple, 360 degrees rotating log grapple etc…

2.You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.

3.We will keep your business information confidential.

4.We promise to reply to you upon receipt of your inquiry within 12 hours.

5.The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.

6. OEM/ODM，Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty

METDEEM Japan grapples are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
