Gross Power – SAE J1995:2014：50.1 kW
Rated Operating Capacity：705 kg
Operating Weight：2653 kg
Experts recommend：
Comfortable. Performance. Smart.

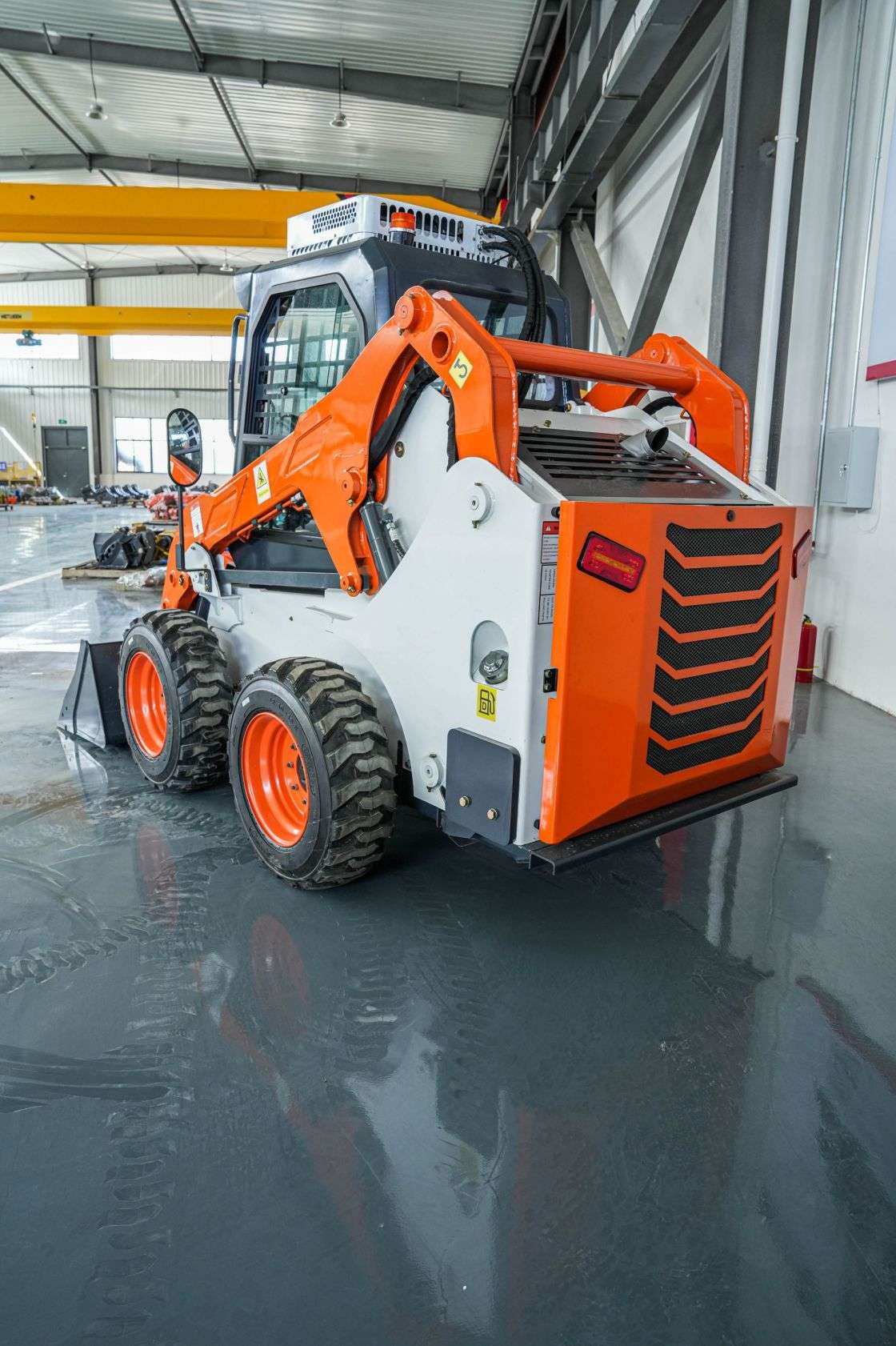

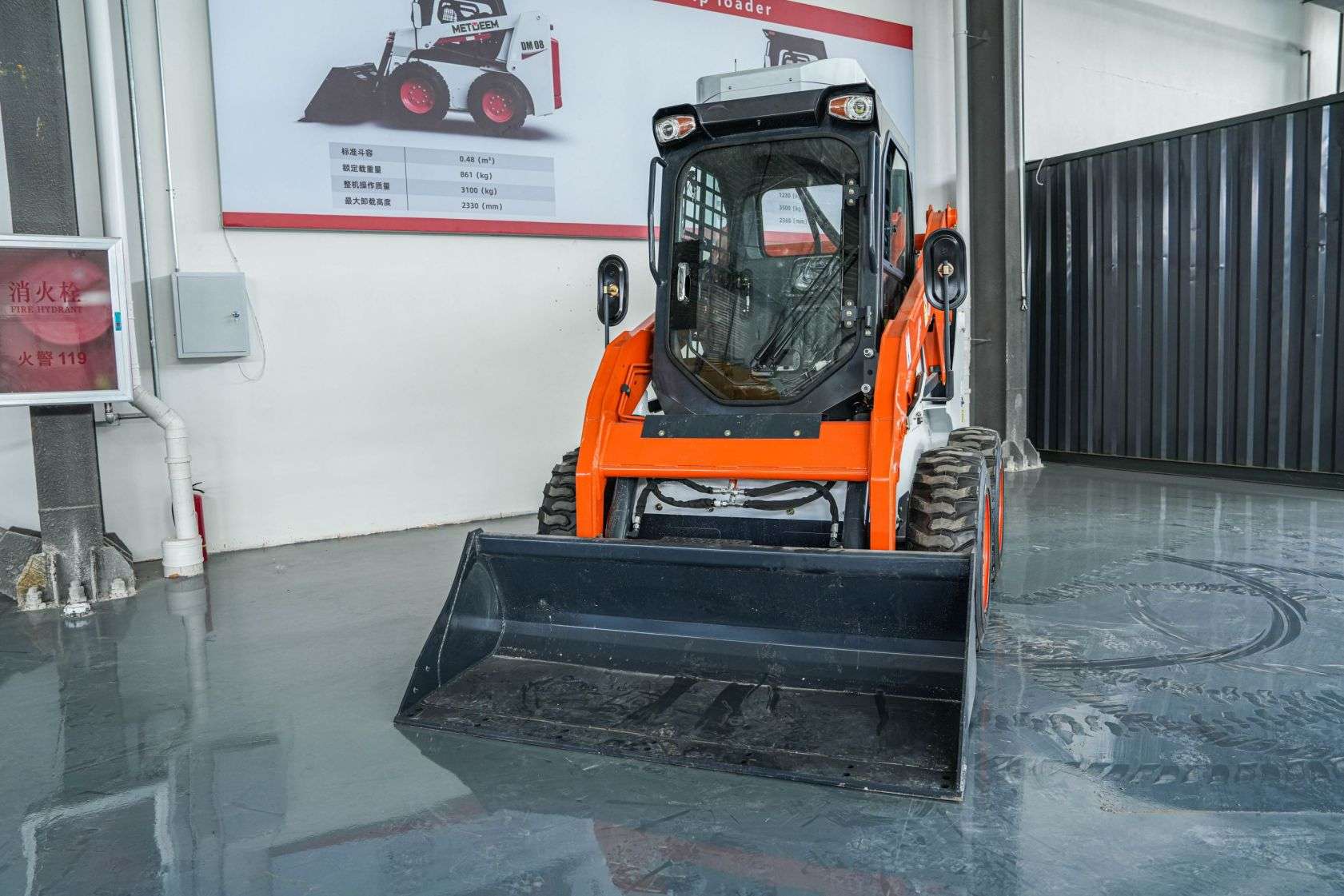

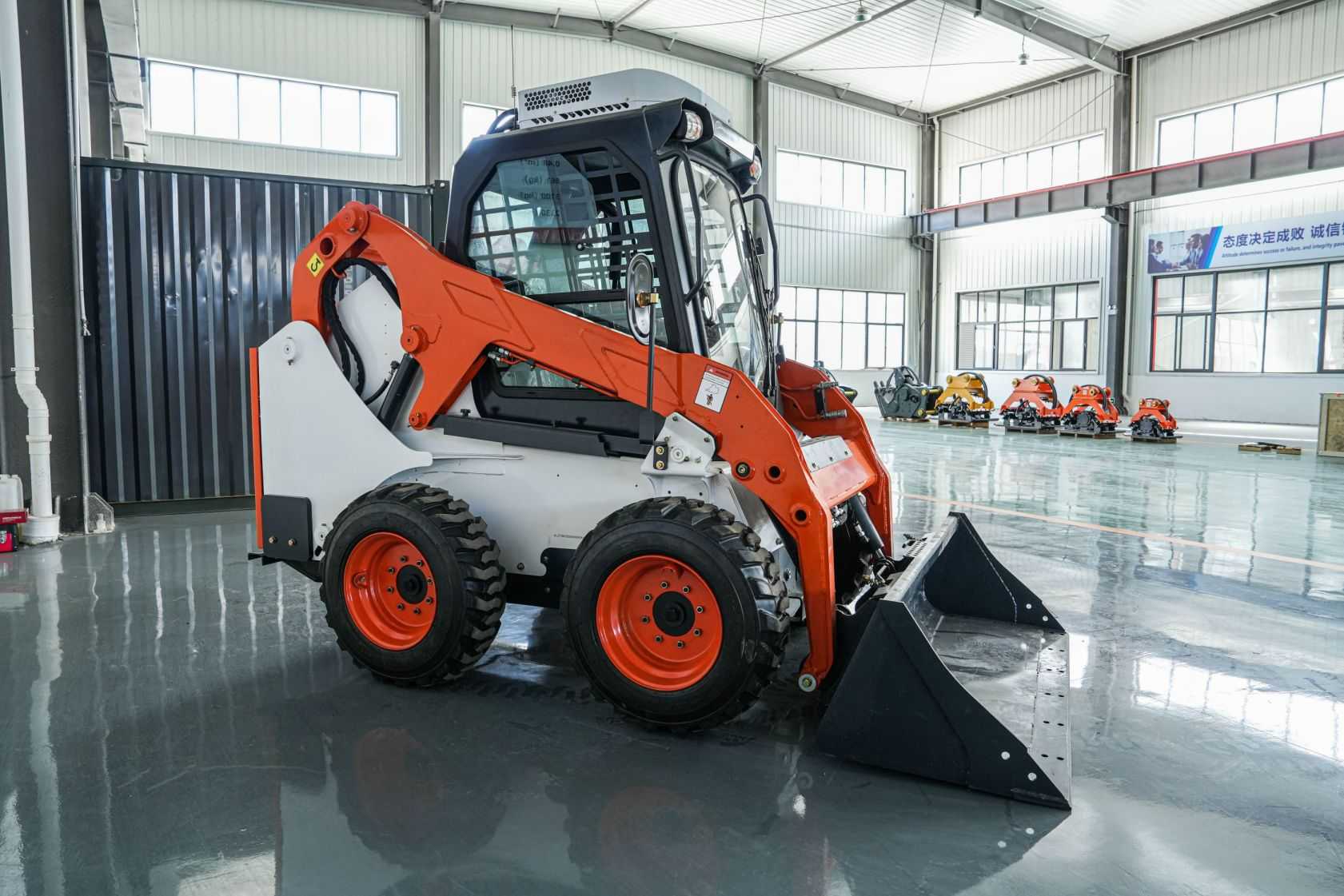

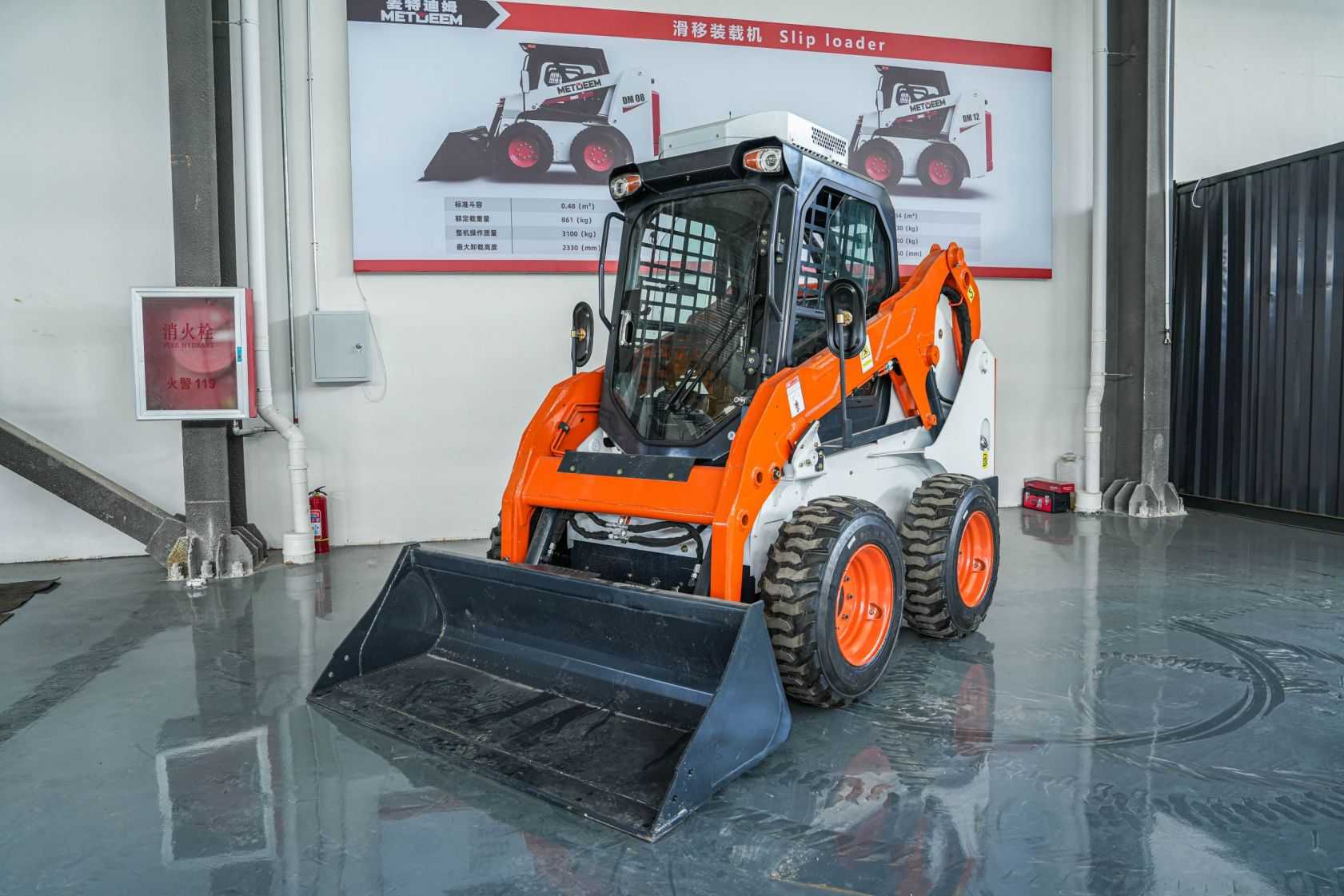

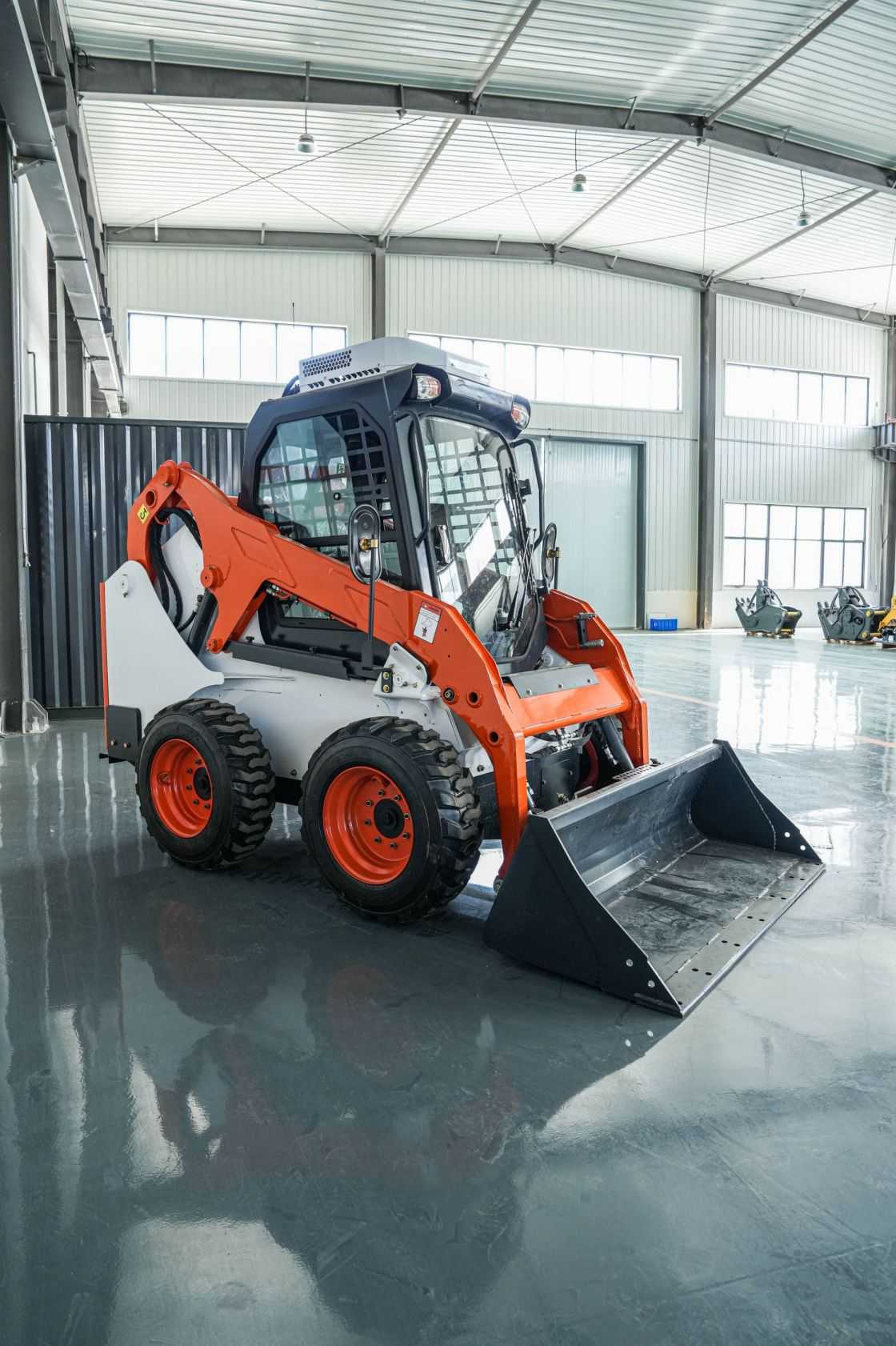

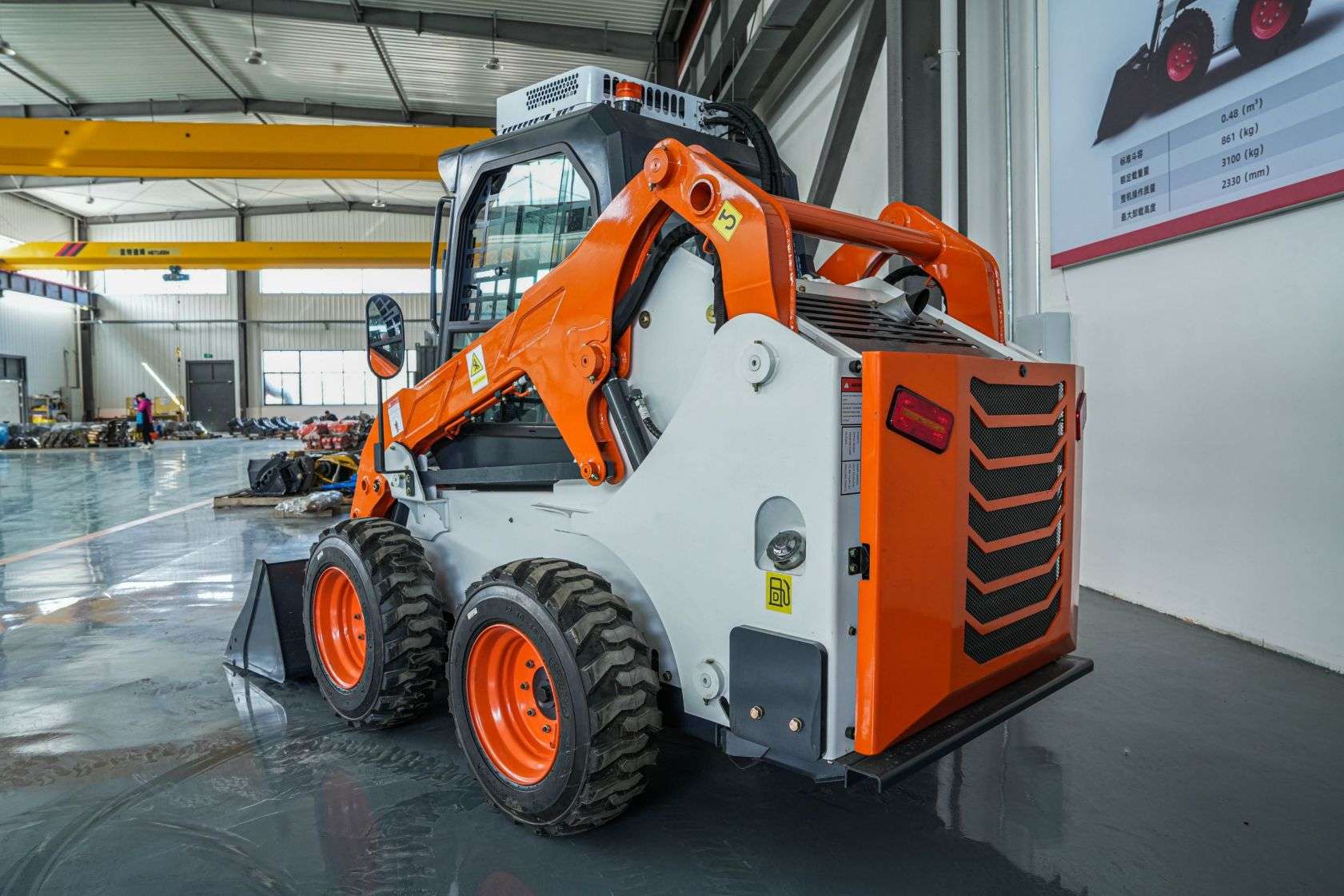

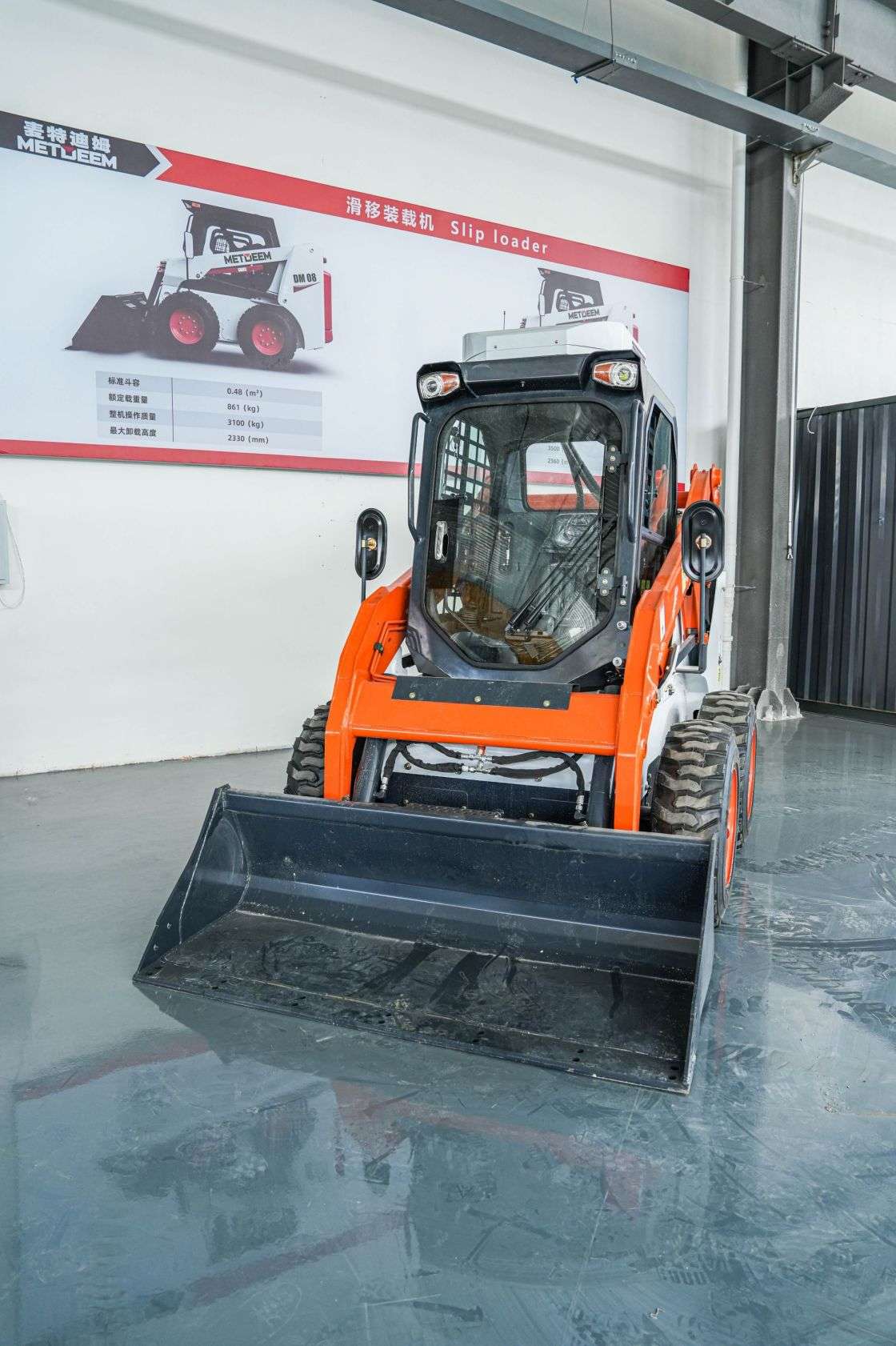

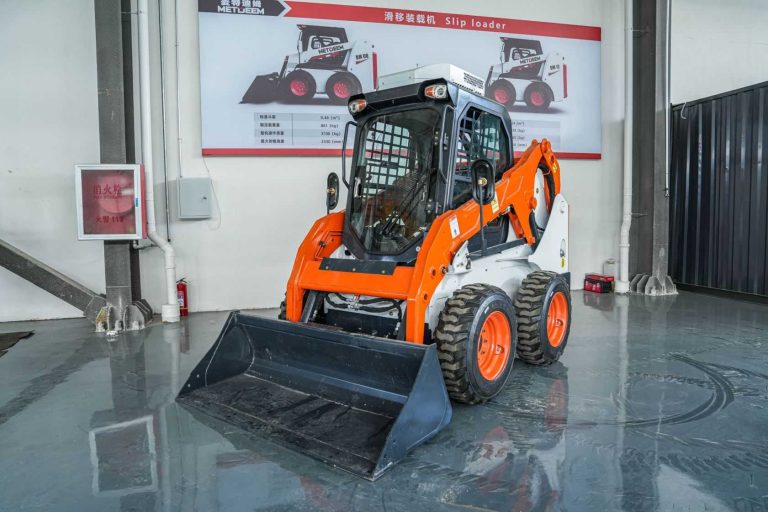

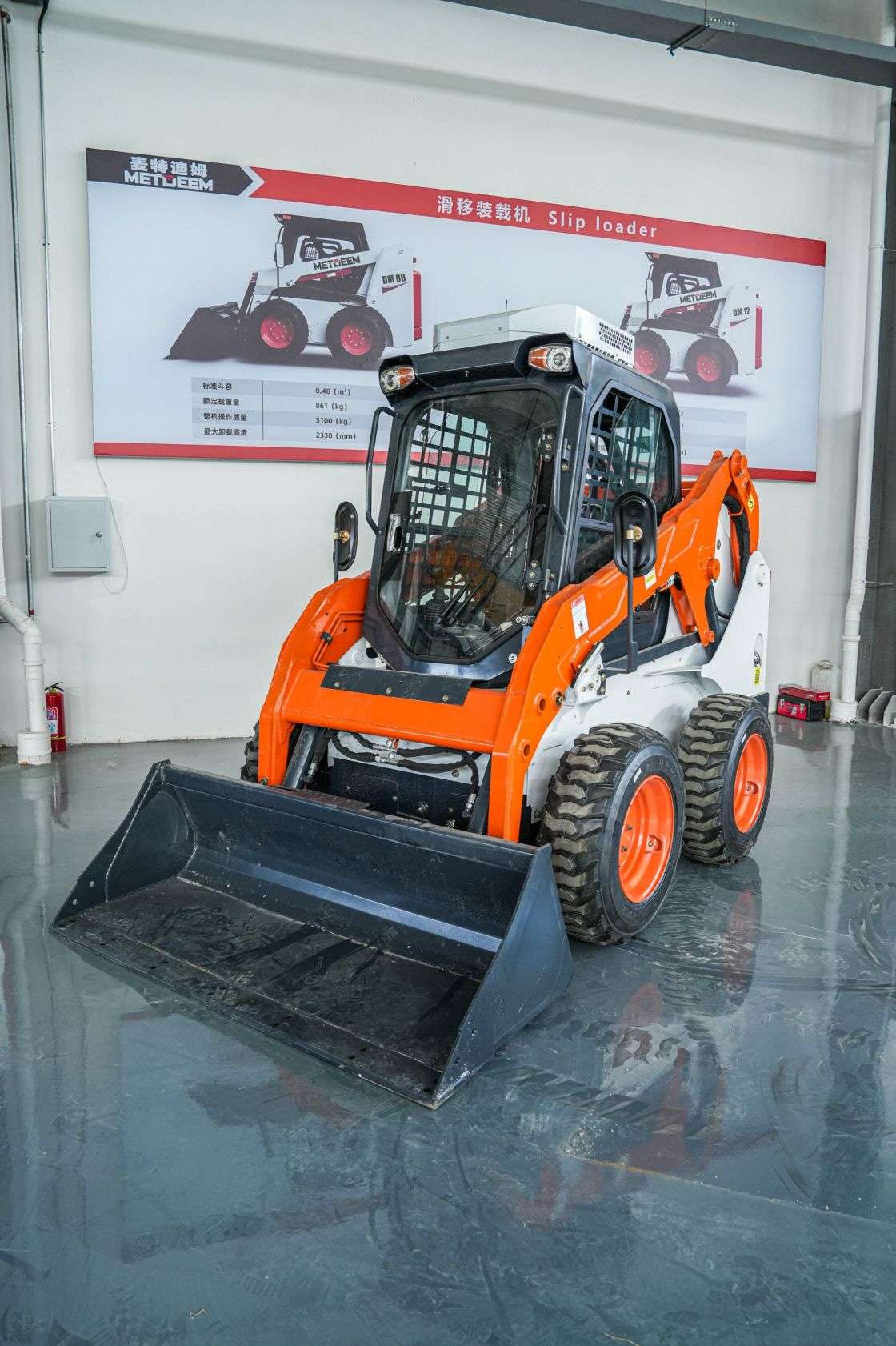

The METDEEM® 08 Skid Steer Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power.
Quiet And Comfortable
The industry leading sealed cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. premium 360-degree visibility and a standard suspended seat for enhanced comfort. also includes as standard, seat mounted adjustable joystick controls for operator comfort.
Maximum Performance
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Making Your Job Easier
World-class hydraulic components offer boom lif ting, leveling, stepless speed control, and intelligent tool management.
Optimized Machine Capability
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control.
Sustainability
Automatic leveling Keeps attachments balanced, improving efficiency, precision, and safety while reducing operator fatigue.
DA (Displacement Adjustment): Adjusts hydraulic displacement to main tain constant power, optimizing performance across varying work conditions.
| Gross Power – SAE J1995:2014 | 50.1 kW |
| Net Power – SAE 1349 | 49.1 kW |
| Displacement | 2.2 l |
| Stroke | 100 mm |
| Bore | 84 mm |
| Engine Model | Cat C2.2 CRDI |
| Peak Torque – 1,500 rpm – SAE J1995 | 208 N·m |
| Net Power – ISO 9249 | 49.6 kW |
| Rated Operating Capacity | 705 kg |
| Rated Operating Capacity with Optional Counterweight | 750 kg |
| Tipping Load | 1410 kg |
| Breakout Force – Tilt Cylinder | 1781 kg |
| Operating Weight | 2653 kg |
| Wheel Base | 1054 mm |
| Length – With Bucket on Ground | 3234 mm |
| Length – Without Bucket | 2524 mm |
| Height – Top of Cab | 2028 mm |
| Vehicle Width over Tires | 1497 mm |
| Maximum Overall Height | 3652 mm |
| Bucket Pin Height – Maximum Lift | 2818 mm |
| Bucket Pin Height – Carry Position | 215 mm |
| Reach – Maximum Lift/Dump | 533 mm |
| Clearance at Maximum Lift and Dump | 2077 mm |
| Ground Clearance | 175 mm |
| Departure Angle | 27.9° |
| Maximum Dump Angle | 46.7° |
| Rack Back Angle – Maximum Height | 88.9° |
| Bumper Overhang – Behind Rear Axle | 8944 mm |
| Turning Radius from Center – Bucket | 1977 mm |
| Maximum Reach – With Arms Parallel to Ground | 1288 mm |
| Turning Radius from Center – Machine Rear | 1513 mm |
| Turning Radius from Center – Coupler | 1104 mm |
| Hydraulic Flow – Standard – Loader Hydraulic Pressure | 23000 kPa |
| Hydraulic Flow – High Flow – Maximum Loader Hydraulic Pressure | 23000 kPa |
| Hydraulic Flow – Standard – Hydraulic Power (Calculated) | 26.5 kW |
| Hydraulic Flow – High Flow – Hydraulic Power (Calculated) | 38 kW |
| Hydraulic Flow – Standard – Loader Hydraulic Flow | 69 l/min |
| Hydraulic Flow – High Flow – Maximum Loader Hydraulic Flow | 99 l/min |
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Travel Speed – Forward or Reverse – One Speed | 12.3 km/h |
| Travel Speed – Forward or Reverse – Two Speed Option | 17.8 km/h |
| Chain Box – Each Side | 7 l |
| Cooling System | 12 l |
| Engine Crankcase | 10 l |
| Fuel Tank | 57 l |
| Hydraulic System | 45 l |
| Hydraulic Tank | 34 l |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
