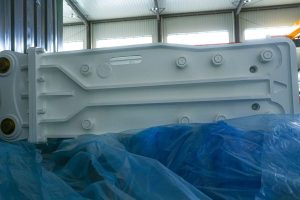

DM190 Hydraulic breaker Top Type

DM190 Hydraulic breaker Top Type

Experts recommend：

Hydraulic breaker(pecker) hammers are used for mining, demolition, construction, quarry.They can be mounted on all common hydraulic excavators as well as mini-excavator and other carriers like skid steer loader, backhoe loader, crane, telescopic handler, wheel loader, and other machinery.

Chat Now

Chat Now

1.12 months warranty;

2.offers maximum output with minimum Maintenance.

3.Noise reductions and reduced vibration make the FXJ operator friendly and benefit the public and surrounding environment.

4.Modern in design and increased power in a carefully thought through physical structure.

5.DM190hydraulic rock and concrete breaker offer speed, high productivity, low cost maintenance and a long service life.

ETDEEM brand Soosan Series Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Please check the following specifications to choose the right hydraulic breaker hammer model.

Hydraulic Breakers hammers for Excavators
Model No.	Body Weight	Working Flow Rate	Working Pressure	Impact Rate	Hose Dia.	Chisel Dia.	Excavator Weight
Model No.	(kg)	(L/min)	(bar)	(bpm)	(inch)	(mm)	(ton)
Light Type Hydraulic Breaker(pecker) for diggers
DM40	50	20-40	90-120	700-1200	1/2	40	0.8-2
DM45	70	20-40	90-120	700-1200	1/2	45	1.2-3
DM53	90	25-45	90-120	500-1100	1/2	53	2.5-3
DM68	155	36-60	110-140	500-900	1/2	68	3-7
DM75	210	50-90	120-170	400-800	1/2	75	6-9
DM85	280	45-85	127-147	400-800	1/2	85	7-14
DM100	480	80-120	150-170	400-650	3/4	100	10-15
Medium Type Hydraulic Hammers
DM135	846	130-170	160-185	400-650	1	135	18-25
DM140	920	150-190	165-195	400-800	1	140	20-30
DM155	1092	150-230	170-200	250-400	1	155	27-36
Heavy Type Hydraulic Rock Hammers
DM165	1442	200-260	180-200	250-400	1.1/4	165	30-45
DM175	1930	210-280	180-200	250-350	1.1/4	175	40-50
DM180	2295	280-350	190-210	230-320	1.1/4	180	45-55
DM190	2520	280-350	190-210	230-320	1.1/4	190	50-60

The listed Hydraulic breaker excavator productivity is based on 8-hour shifts. The above figures are for general estimation purposes only. The actual work results may depend on the quality and structure of the broken material, the material reduction size reduction, installation, carrier conditions, job site conditions, transportation, operator skills, etc.

Our Services

We can offer a comprehensive range of excavator attachments such as excavator hammer, mini-excavator hammer, rock breaker hammer, hydraulic hammer for backhoe, quick hitch, log grapples, plate compactor, earth drill auger, orange peel grab, demolition grapple, grab bucket, ripper, etc…
You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.
We will keep your business information confidential.
We promise to reply to you upon receipt of your inquiry within 12 hours.
The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.
OEM/ODM，Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty

METDEEM Excavator Hydraulic hammers are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
