Loader Bucket Capacity: 1.5 m³
Excavator Bucket Capacity: 0.3 m³
Gross Power: 85kW/2200rpm
Experts recommend：

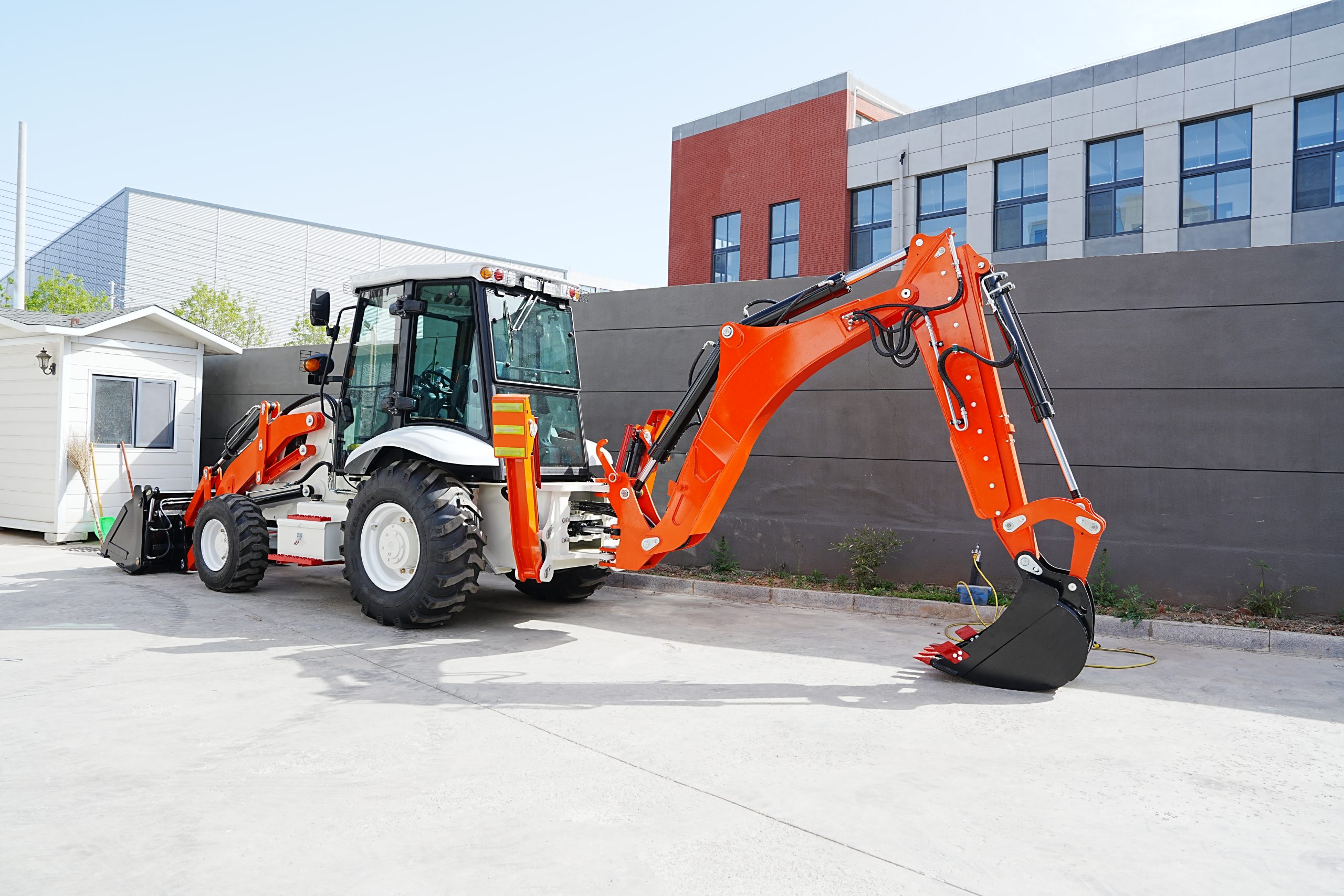

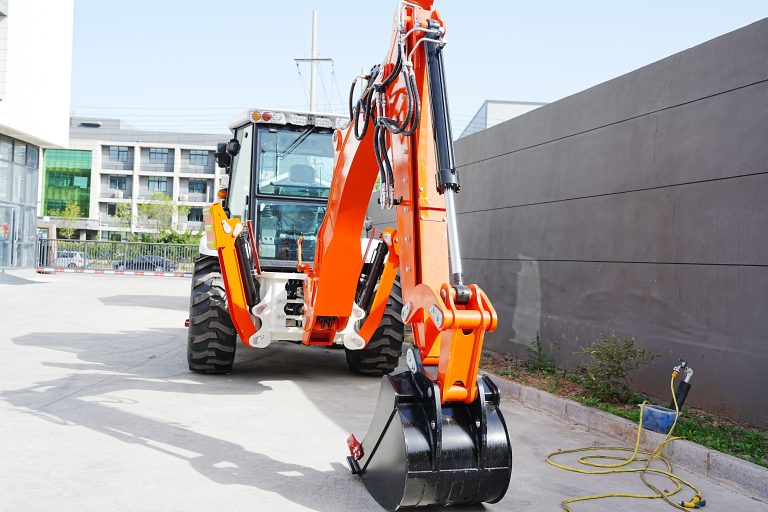

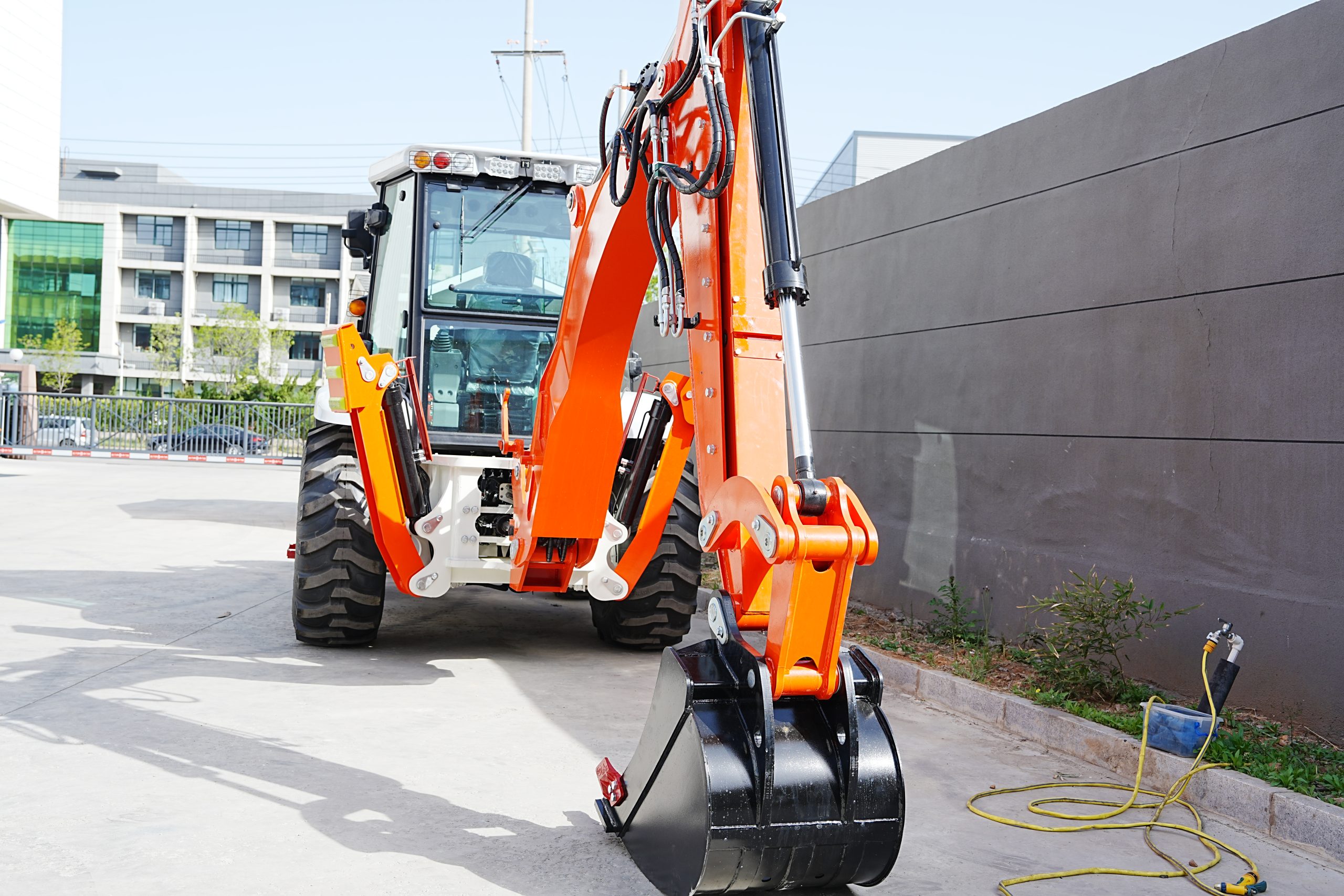

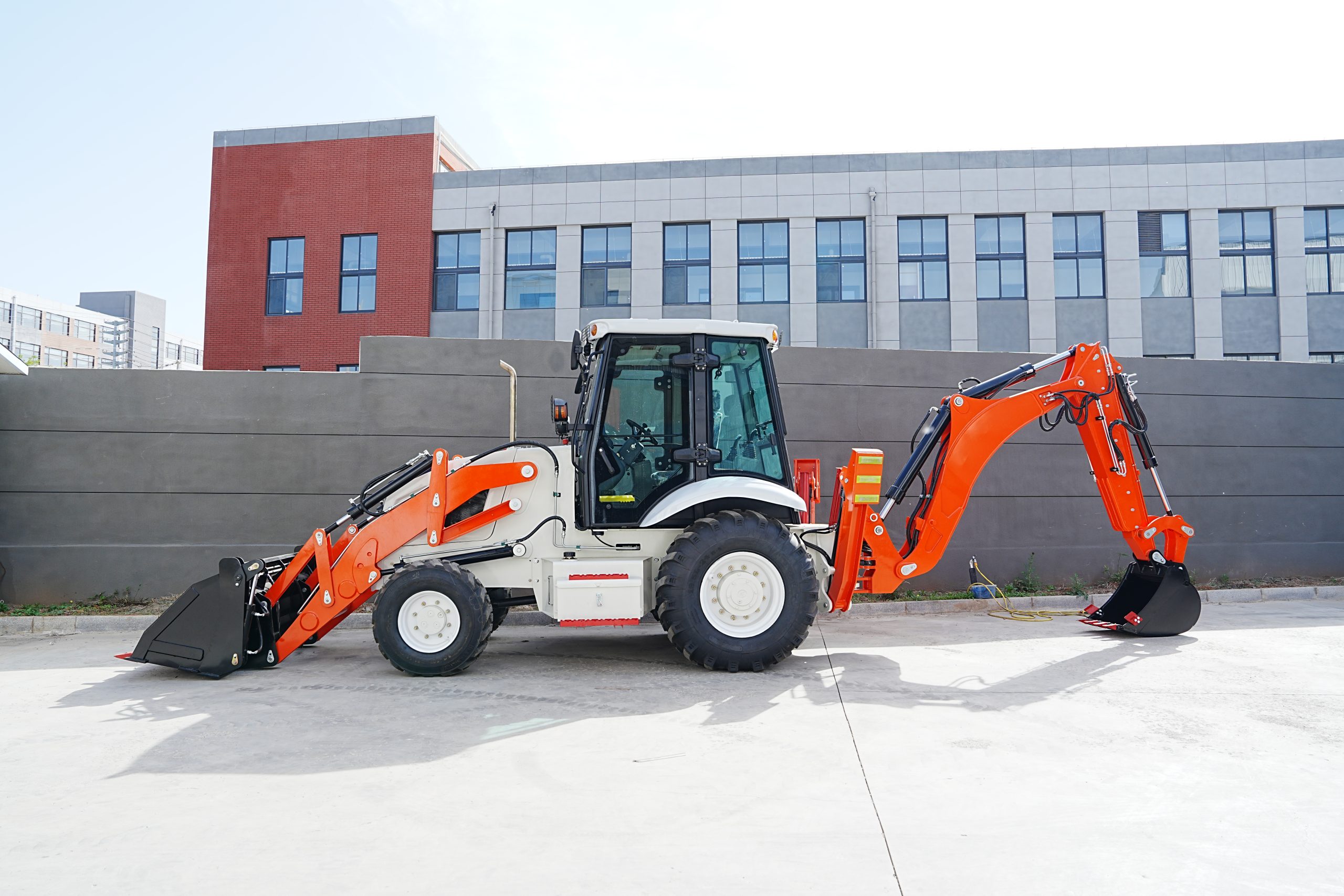

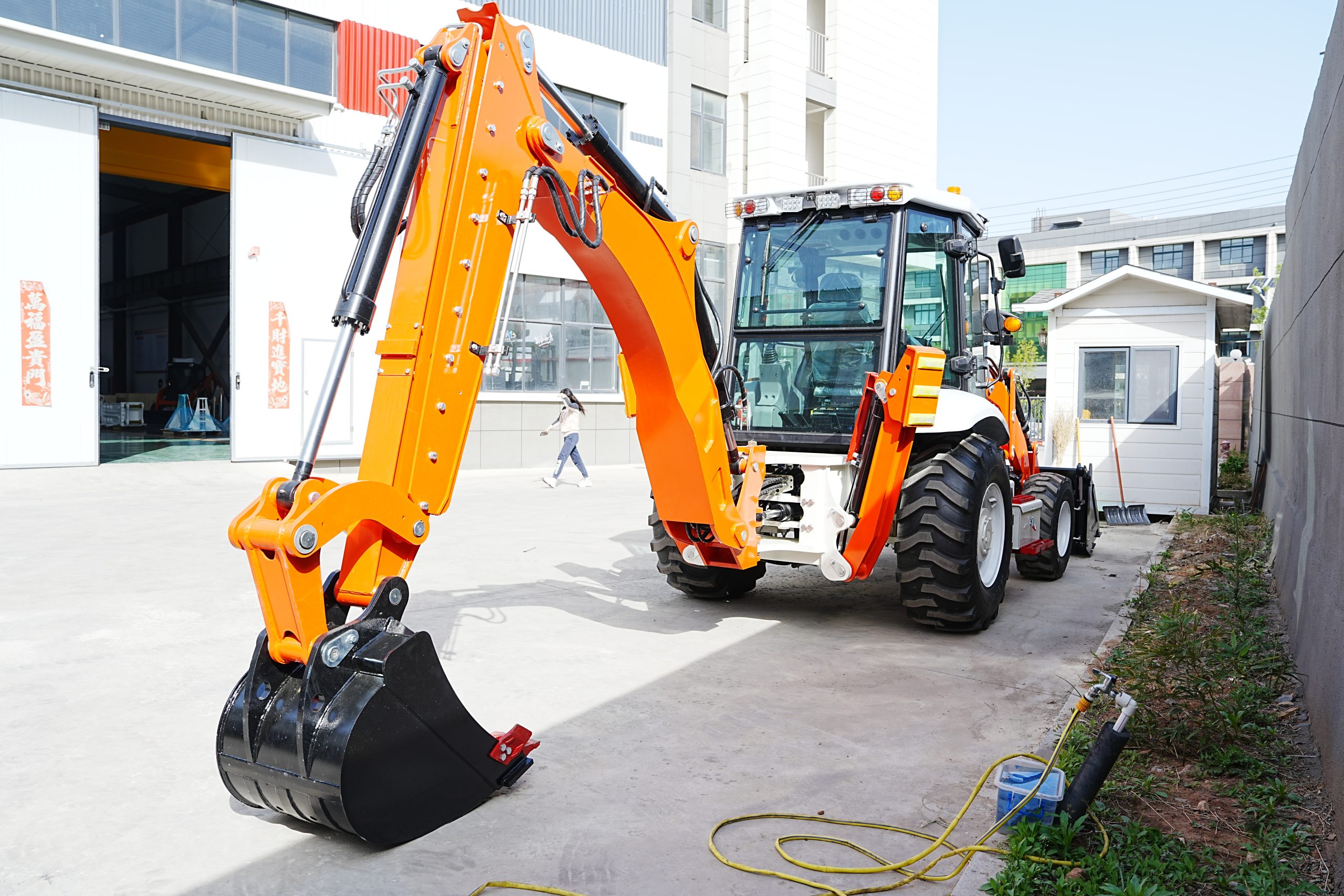

The METDEEM DM40-28 Backhoe Loader Equipped with an efficient load sensing hydraulic system. The pilot controls provide precise operation , The efficient, strong, high torque engine provides power and responsiveness for both travel and multi-function hydraulic system operation
Ergonomic Operator Station
Ample legroom inside the cab makes rotating the seat simple. The Adjustable Mechanical Suspension seat provides comfort to the operator while roading.
Complete Machine Control
The METDEEM DM40-28 Backhoe Loader offers dual differential lock control. In adverse conditions, the operator has the option of engaging the differential lock from the floor mounted pedal or by using the push button on the loader joystick.
Simple Controls
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precise operation is possible from easy to use controls allowing all skill levels to be productive with little practice.
Machine Performance
The following four engines can be optionally installed:
YUCHAI/YCD4T33T6-115(90KW）
CUMMINS 74KW 4BT3.9-C100
CUMMINS EURO3 75KW QSB3.9-C100
EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine
They are all advanced, reliable, powerful, efficient, fuel-efficient, quiet, comfortable, intelligent and environmentally friendly.
Versatility
A large portfolio of Attachments, including but not limited to assorted Buckets, Brooms, Snow Pushes and Brooms are for field installation..
| The Technical Parameter of DM40-28 Backhoe Loader
|
|
| Overall Operating Weight | 9500KG |
| Transport Dimension | |
| L*W*H | 7600×2260×2890mm |
| 轴Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |
| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4100mm |
| Optional Digging Depth | 5000mm(Telescopic boom belt) |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Brand/Model | YUCHAI YCD4J22T-115 Turbo engine |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 85KW |
| 可Optional Engine | YUCHAI/YCD4T33T6-115(国三90KW）
CUMMINS 74KW 4BT3.9-C100 CUMMINS EURO3 75KW QSB3.9-C100 EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENG YUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| 冷却方式Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 30Km/h |
| Tyre | |
| Model | （F）14-17.5
（R）19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake
|
Air Over Oil Caliper Brake |
| External Type | |
| 自Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
| Packing Quantity（1*40HC） | 2Units(Remove the tire/dig the arm/bucket, and pack the box with the process wheel) |
| Standard configuration Front shovel with bucket, rear excavator with bucket, luxurious cab with interior/fan /LED light/large reflection/broken window hammer/fire extinguisher/sliding window/sunroof, warm air, luxurious adjustable rotating seat, adjustable instrument panel, LCD display, hydraulic pilot operation, Yuchai 85KW engine, 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires Specially designed 280 integral dual high and low speed transmission, front wheel Yunyu steering drive axle, four-wheel drive, A-shaped outriggers. | |
| The parameters or configuration are subject to change without notice. | |
Ergonomic Operator Station
Ample legroom inside the cab makes rotating the seat simple. The Adjustable Mechanical Suspension seat provides comfort to the operator while roading.
Complete Machine Control
The METDEEM DM40-28 Backhoe Loader offers dual differential lock control. In adverse conditions, the operator has the option of engaging the differential lock from the floor mounted pedal or by using the push button on the loader joystick.
Simple Controls
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precise operation is possible from easy to use controls allowing all skill levels to be productive with little practice.
Machine Performance
The following four engines can be optionally installed:
YUCHAI/YCD4T33T6-115(90KW）
CUMMINS 74KW 4BT3.9-C100
CUMMINS EURO3 75KW QSB3.9-C100
EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine
They are all advanced, reliable, powerful, efficient, fuel-efficient, quiet, comfortable, intelligent and environmentally friendly.
Versatility
A large portfolio of Attachments, including but not limited to assorted Buckets, Brooms, Snow Pushes and Brooms are for field installation..
| The Technical Parameter of DM40-28 Backhoe Loader
|
|
| Overall Operating Weight | 9500KG |
| Transport Dimension | |
| L*W*H | 7600×2260×2890mm |
| 轴Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |
| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |
| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4100mm |
| Optional Digging Depth | 5000mm(Telescopic boom belt) |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Brand/Model | YUCHAI YCD4J22T-115 Turbo engine |
| Type | In Line，Direct injection，Four-Stroke，Water Cooling |
| Rated Power | 85KW |
| 可Optional Engine | YUCHAI/YCD4T33T6-115(国三90KW）
CUMMINS 74KW 4BT3.9-C100 CUMMINS EURO3 75KW QSB3.9-C100 EURO5 81KW YUCHAI or EPA4 CUMMINS 74KW engine |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | FEICHENG YUNYU |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/18.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| 冷却方式Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Four Gears Ahead, Four Gears Astern |
| Max.Speed | 30Km/h |
| Tyre | |
| Model | （F）14-17.5
（R）19.5L-24 |
| Pressure of Front wheel | 0.22 Mpa |
| Pressure of Back Wheel | 0.22 Mpa |
| Brake System | |
| Service Brake
|
Air Over Oil Caliper Brake |
| External Type | |
| 自Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
| Packing Quantity（1*40HC） | 2Units(Remove the tire/dig the arm/bucket, and pack the box with the process wheel) |
| Standard configuration Front shovel with bucket, rear excavator with bucket, luxurious cab with interior/fan /LED light/large reflection/broken window hammer/fire extinguisher/sliding window/sunroof, warm air, luxurious adjustable rotating seat, adjustable instrument panel, LCD display, hydraulic pilot operation, Yuchai 85KW engine, 14-17.5 vacuum front tires, 19.5L-24 vacuum rear tires Specially designed 280 integral dual high and low speed transmission, front wheel Yunyu steering drive axle, four-wheel drive, A-shaped outriggers. | |
| The parameters or configuration are subject to change without notice. | |
