DM4000 Auger Drill

Experts recommend：

METDEEM earth auger application in Landscaping, Tree planting, Well boring, Foundation piles, Screw pile installations, Ground source heat pumps, Pole and Mast Installations, Solar energy piling, Bridge pier drilling etc.

Chat Now

Chat Now

Main features of METDEEM Auger Drill

1.Huge range of earth drill to suit 1-50T excavators.

2.High quality Imported Hydraulic motors.

3.Heavy duty Planetary Reductions Gearbox with massive Diameter Output Bearing, Specially researched Gearbox design and heat-treating skills to make auger with massive torque.

4.Non-dislodgement output shaft.

5.Specially designed auger flight for more earth removal.

METDEEM brand narrow bucket is suitable for 0.5-11 ton excavators, catering to a broad range of construction machinery needs. The product’s versatility makes it an ideal choice for various construction projects.

Please check the following specifications to choose the right Excavator Auger model.

Hydraulic Earth Drill Auger For Excavators
Parameter	Model No.	DMmini	DM02	DM04	DM06	DM06S	DM08	DM08S
	Excavator Weight (ton)	2.5-4.5	4.5-6	5-8	13-17	15-17	15-20	17-30
	Measurement (mm)	φ200X585	φ270X850	φ270X850	φ300X945	φ300X945	φ345X1155	φ345X1155
	Weight(kg)	60	100	152	170	175	265	272
	Working Pressure(bar)	205	205	205	205	205	205	205
	Max Pressure(bar)	310	310	310	310	310	310	310
	Max Torque(nm)	3760	7300	8240	12300	15200	19800	24920
	Rated Oil Flow(lpm)	150	150	150	150	150	150	150
	Max Oil Flow(lpm)	210	225	225	170	210	210	225
	Diameter of Oil Pipe	G1/2”	G1/2”	G1/2”	G3/4”	G3/4”	G3/4”	G1”
Digging Function	φ150-250 mm	3m	10m	10m	10m	10m	10m	10m
	φ300-400 mm		8m	10m	10m	10m	10m	10m
	φ450-550 mm		6m	8m	10m	10m	10m	10m
	φ600-700 mm			6m	10m	10m	10m	10m
	φ750-850 mm				10m	10m	10m	10m
	φ900-1000 mm					10m	10m	10m

♣The company has been developed to meet the high standards of the current market.♣These specifications are subject to change without prior notice for the improvement of quality.

♣The demand for high durability and low maintenance costs on hydraulic equipment are combined in the total design of our Excavator Auger Drill Attachment.

Our Services

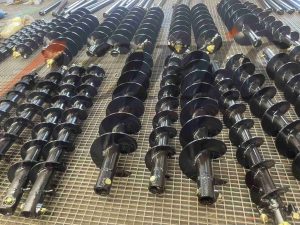

1.We can offer a comprehensive range of auger drives, auger drills, extension bars, cradle hitch, etc…

2.You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.

3.We will keep your business information confidential.

4.We promise to reply to you upon receipt of your inquiry within 12 hours.

5.The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.

6. OEM/ODM，Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty

METDEEM Excavator Auger Drills are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
