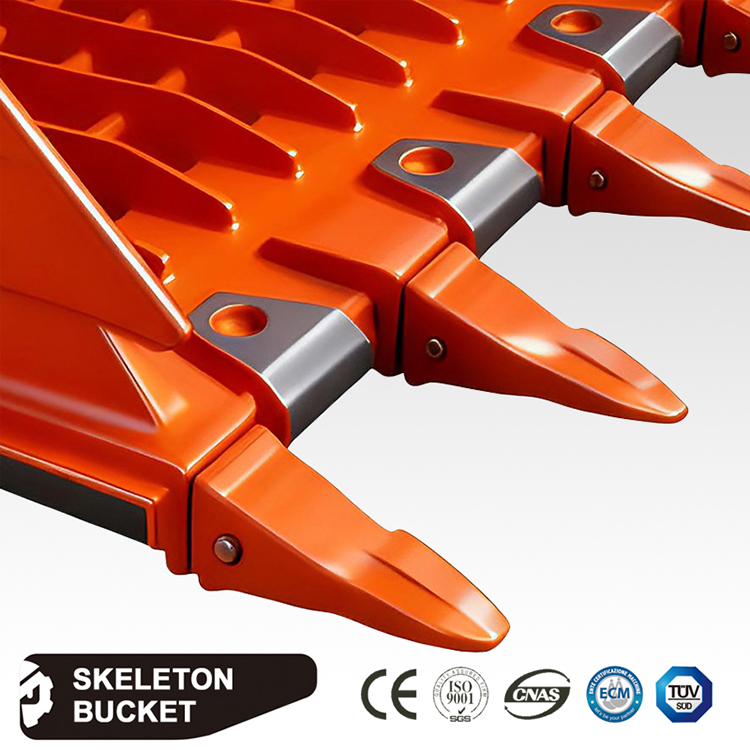

METDEEM DM06 Skeleton Bucket for CAT PC Excavator

METDEEM DM06 Skeleton Bucket for CAT PC Excavator

Experts recommend：

The most attractive core advantage of METDEEM grid Bucket lies in its pioneering “digging and filtering synchronization” capability.
It can dig and load as efficiently as a common bucket, and automatically complete the material screening during the lifting process – fine soil and mud water are filtered out in real time, leaving only the target stones or garbage.
This design fundamentally changes the traditional cumbersome process of “digging first and then screening”, combining multiple procedures into one step.
In scenarios such as river dredging, stone material screening, and construction waste sorting, it can directly reduce equipment mobilization and operation time by more than 50%, achieving a disruptive optimization in efficiency and cost.

Chat Now

Chat Now

Main features of Metdeem Skeleton Bucket

Dual functions in one machine, enhancing work efficiency: Integrating the functions of excavation, loading and screening separation, it can complete all tasks simultaneously in a single operation, significantly shortening the construction period and greatly improving the overall work efficiency.
Precise separation, clean and environmentally friendly: The unique grid design can efficiently separate fine components from mixed materials such as soil, stones, and construction waste, making the retained substances purer. It is particularly suitable for environmental protection operations such as river dredging and garbage classification.
Durable, reliable and long-lasting: The main structure is made of high-strength steel plates, and key parts are equipped with cast wear-resistant guard plates and guard blocks, which are strengthened by special processes to ensure impact resistance and wear resistance in hard working conditions containing crushed stones and gravel, with a long service life.
Wide application and strong adaptability: It is suitable for various engineering fields such as municipal, agricultural, forestry, water conservancy and earthwork, and is an ideal multi-functional attachment for handling loose mixed materials and conducting primary classification of materials.
Easy operation and cost-saving: The working principle is intuitive, just like operating a regular bucket, without the need for complex training. By reducing the demand for equipment conversion and secondary processing of materials, the costs of labor, fuel and equipment input can be effectively lowered.

Metdeem Skeleton Bucket is used for Loose material excavation &separation (municipal/agricultural/forestry/water projects).

Tonnage matching principle

It is recommended to choose a grid bucket model with a capacity similar to that of the excavator’s standard bucket

The weight of the equipment should not exceed 80% of the lifting capacity of the excavator

The flow rate of the hydraulic system must be within the range required by the equipment

Gap selection criteria

– Conventional soil-rock separation: 50-80mm gap

– River dredging: 30-50mm gap

– Construction waste classification: 80-120mm gap

– Mine screening: 100-150mm gap

Special working condition configuration

– Working conditions with hard stone materials: Reinforced grid strips and wear-resistant protective teeth need to be configured

– Damp and sticky materials: It is recommended to choose a wide gap anti-clogging design

– Corrosive environment: Galvanizing or special coating treatment is optional

Suggestions for efficiency optimization

– When used in conjunction with the shaking function of an excavator, it can increase the screening efficiency by 30%

-Regularly clean the grid gaps to prevent blockage

– Adjust the working Angle according to the moisture content of the material

Our Services–Pre-sale and Transaction Services

Professional selection consultation: We offer online advisory services. Based on your excavator model and specific working conditions, we recommend the most suitable grid bucket specifications and grid clearances.
Customized services: Support for customizing the grid gap size and bucket capacity based on the separation requirements of special materials.
Transparent trade support: Provide clear product specifications, EXW/FOB/CIF quotations, etc., and assist in handling export documents and logistics arrangements.

Warranty–After-sales Guarantee Policy

Quality Guarantee period: The product is entitled to a 12-month quality guarantee from the date of manufacture, covering material and manufacturing process defects.
Global spare parts supply: We always keep inventory of high-wear components such as grating plates, side blades, and wear-resistant guards, and ensure rapid supply through an international logistics network.
Technical Support: We offer free lifetime technical consultation and provide remote guidance on installation, usage and daily maintenance via email, phone or online tools.
Warranty Service: During the warranty period, for faults confirmed to be quality issues, free repair or component replacement services will be provided (not due to human damage or improper use).
Long-term Service Commitment: We promise to provide long-term spare parts supply and technical support services for sold models to ensure the long-term effectiveness of your investment.
