METDEEM Flexible in Angle DM02 Tilt Bucket Flexible multi-angle Operation for SANY XCMG Excavator

Experts recommend：

METDEEM tilting bucket is the “smart arm” for terrain trimming.
Its greatest advantage is that it enables the bucket to swing flexibly left and right, thus achieving the goal of “the bucket motor remaining stationary”.
When trimming slopes, river channels or conducting fine leveling , there is no need to frequently move the large machine body.
This not only reduces equipment wear and fuel consumption significantly , but also achieves unprecedented operational accuracy and efficiency.
It is sturdy and durable, widely adaptable, making complex terrain operations simple, economical and efficient.

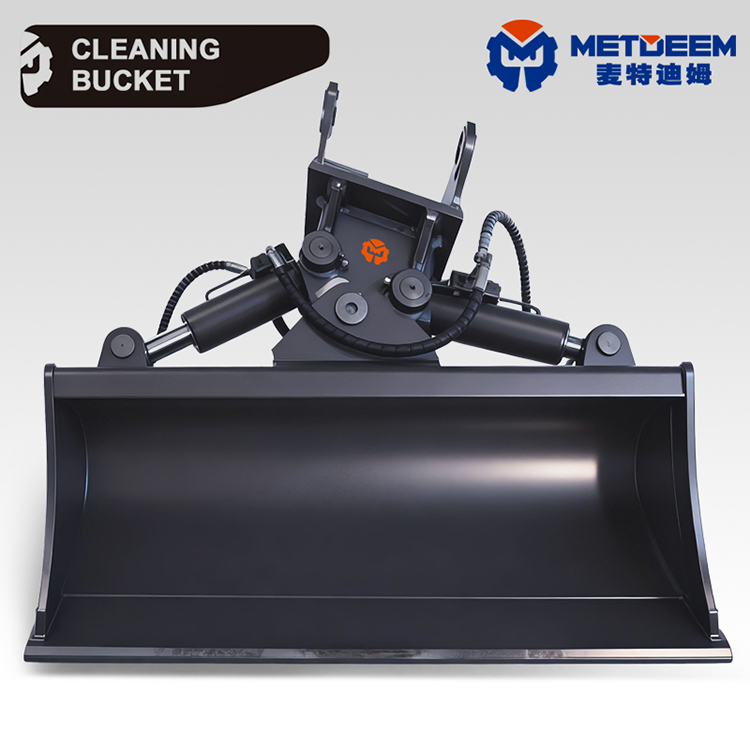

Main features of METDEEM Hydraulic tilt bucket

The bucket can swing flexibly left and right with a swing Angle of 26 degrees. When building slopes or digging ditches, simply rotate the bucket to precisely fit the working surface, making the operation flexible.
It is applicable to complex terrain operations such as slope trimming, river channel trimming, pipe trench excavation, and fine site leveling, and has obvious advantages in narrow or irregular Spaces.
Due to the reduced movement and rotation of the excavator body, the wear and fuel consumption of the excavator itself decrease accordingly. And the continuity of operation is stronger, and the overall working efficiency is significantly improved.
It is sturdy and durablebecause of made of high-strength alloy steel . It is compatible with various common excavator models ranging from 4 tons to 30 tons.
The standard tilt Angle can already meet most demands. If there are special engineering requirements, a bucket with a larger tilt Angle can be customized, which is very flexible.

METDEEM brand tilt bucket is made from durable materials, ensuring exceptional strength and resistance to wear and tear.

Check the product parameters of the inclined bucket, confirm the tonnage range of the excavator it is applicable to, and verify whether the connection dimensions such as the shaft diameter and the opening gear match the large and small arms of the excavator.

Choose the appropriate capacity based on the type of material you mainly excavate to balance the efficiency and operability of the excavator.
The standard inclination Angle is usually ±26 degrees. If the project has special requirements, it is necessary to consult and customize products with a larger Angle.
In narrow Spaces, a relatively narrower bucket can be chosen to increase flexibility.
It is recommended to refer to the parameter table provided by the manufacturer or offer the model and working conditions of the excavator to the salesperson for recommendation.

Tilt Bucket for Excavators/Backhoes
Category	Unit	DM-mini	DM-02	DM-04	DM-06	DM-08
Rotation angle			360	360	360	360
Oil pressure	bar	80-120	110-140	120-160	150-170	160-180
Operating flow	lpm	25-40	30-55	50-100	90-110	100-140
Excavator weight	ton	1.5-3	4-6	6-9	12-16	17-23
Weight	kg	120	163	240	730	1260

♥ The Specifications of this equipment are subject to change for improvements.

Our Services-Manufacturer Service

1. Please tell us the model of our excavator and its main job content, and we will recommend the most suitable tilting bucket model for you.

Besides the standard Angle of ±26 degrees, if you need a larger tilt Angle or special dimensions, we can customize them for you.
We are responsible for the entire export process from the Chinese factory to the port you specify, including sea transportation, customs declaration and all necessary trade documents.
Provide easy-to-understand product installation diagrams, operation videos or instruction manuals to help you get started quickly.

Warranty

METDEEM products are covered by a one-year quality warranty for core structural components from the time of manufacture, ensuring that there are no defects in materials and craftsmanship.
We always keep key and vulnerable parts such as cylinder seals and pins in stock to ensure that you can quickly purchase and replace them when needed, reducing waiting time.
If you encounter any installation or operation questions during use, you can contact us via email or online tools to obtain technical support.
We will continuously optimize product design based on feedback from global users and share important improvement information with customers.
