Fuel-efficient and powerful engine Compact crawler bulldozer METDEEM DM16

Fuel-efficient and powerful engine Compact crawler bulldozer METDEEM DM16

Brand: METDEEM DM16 Bulldozer,
Origin: Produced in Yantai, Shandong Province, China. It is a piece of equipment dedicated to efficient earthwork operations.

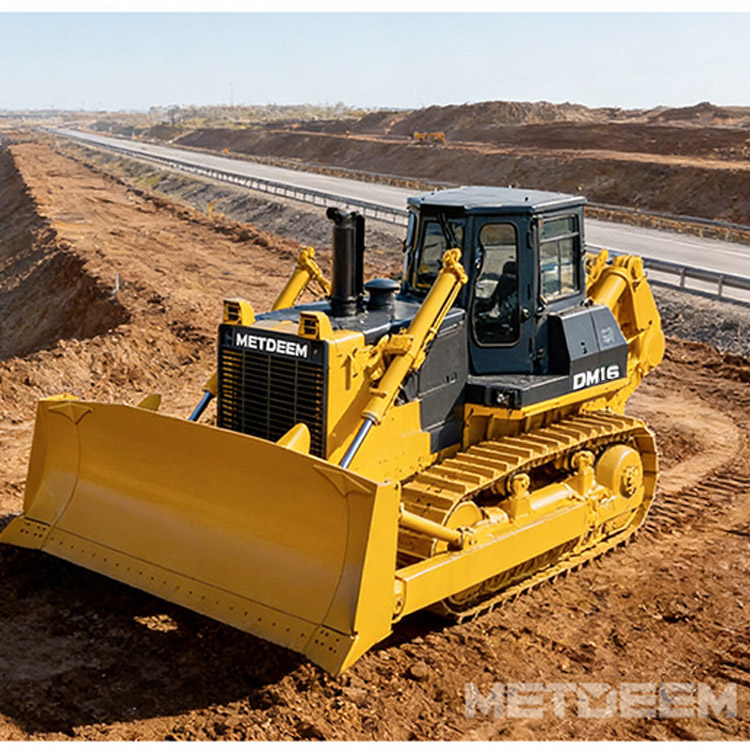

Application scenarios:Used for mining material excavation and transportation, spoil dump construction, site leveling, and foundation excavation and other projects.
Customization: We support customization based on your specific working conditions.
After-sales: Sufficient spare parts, global after-sales support, 724-hour online customer service.

Chat Now

Chat Now

Fuel-efficient and powerful engine Compact crawler bulldozer METDEEM DM16

Technical features

Powerful, energetic in work

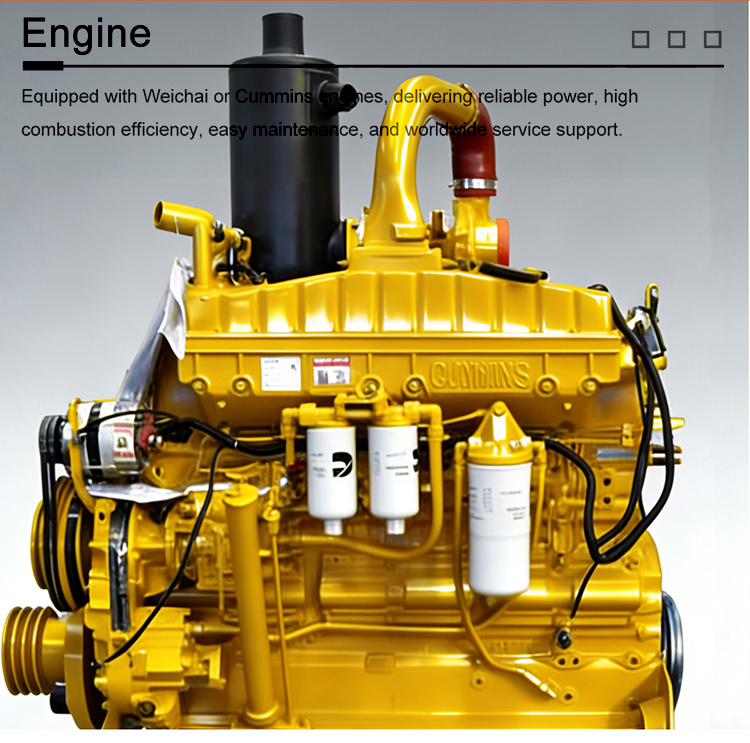

Equipped with Weichai engine, it can continuously output strong power.
The engine has high combustion efficiency, not only providing sufficient power, but also is simple and convenient to maintain, and the daily maintenance is worry-free.

Smooth transmission, flexible operation

With three gears for forward and reverse, it adopts a planetary gear automatic transmission box.
Combined with hydraulic transmission, the operation feels smooth and gentle, and the gear shifting is effortless.

Even during long-term operation, one will not feel tired.

The frame is sturdy and durable.

The entire vehicle adopts a box-type welded frame, which is structurally solid and reliable.
This design enables the body to withstand strong impacts and torsional deformations, ensuring the machine’s reliability and overall lifespan in harsh working conditions over a long period.

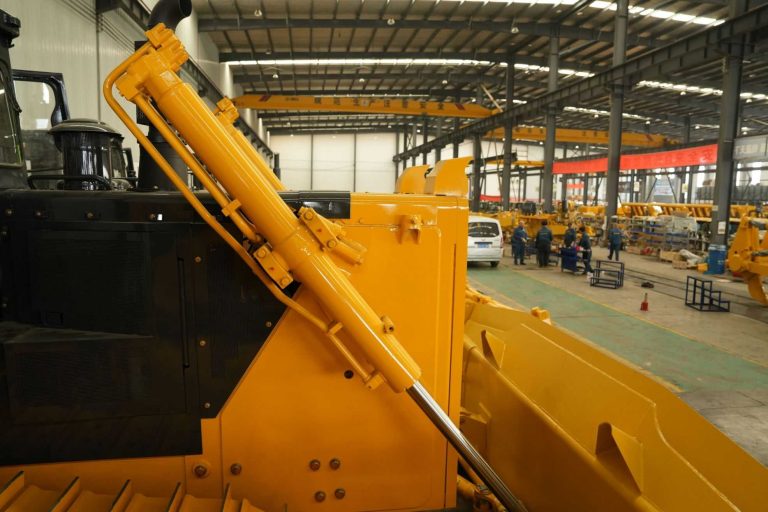

Highly efficient and stable, reliable hydraulic system

The working pressure of the hydraulic system reaches 14 MPa, and the power output is stable and reliable.
The system is equipped with overload protection function, which effectively reduces the occurrence rate of faults and ensures a smooth and uninterrupted construction process.

Due to its excellent performance and adaptability to various terrains

The chassis adopts a floating balanced beam structure, combined with a 510mm wide track plate, resulting in a ground pressure as low as 0.067 MPa.
This enables it to have excellent passability and stability even on soft, muddy or uneven roads.

Product Specifications, After-sales Service, Company Qualifications

Core Specifications

The overall dimensions of the DM16 vehicle are 5140×3388×3032 mm, and its working weight is approximately 17 tons.
The core power comes from the Wuxi 6-cylinder direct injection engine.
It has excellent fuel economy in the same category.

Performance parameters

Walking system:
Equipped with three levels of walking speed.
The maximum forward speed is approximately 9.6 km/h, and the maximum backward speed is about 12.5 km/h.
It can be flexibly selected according to the operation requirements.

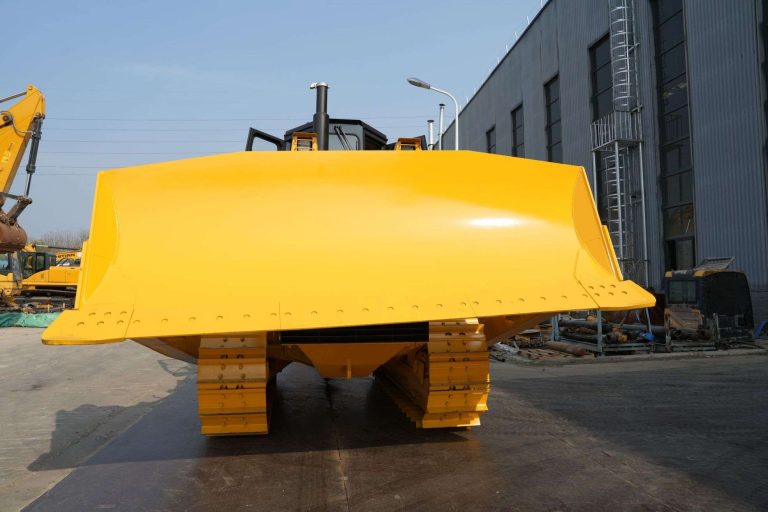

Working device:

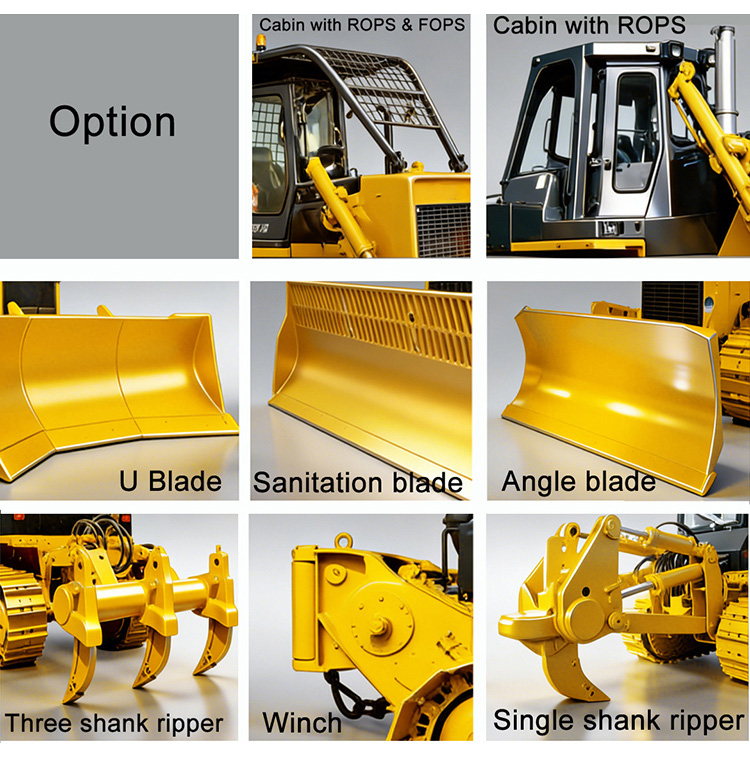

Available options include straight bucket, angle bucket or semi-U bucket.
The bucket capacity ranges from 4.3 to 5 cubic meters, meeting various operation needs such as earthmoving, leveling, and material collection.

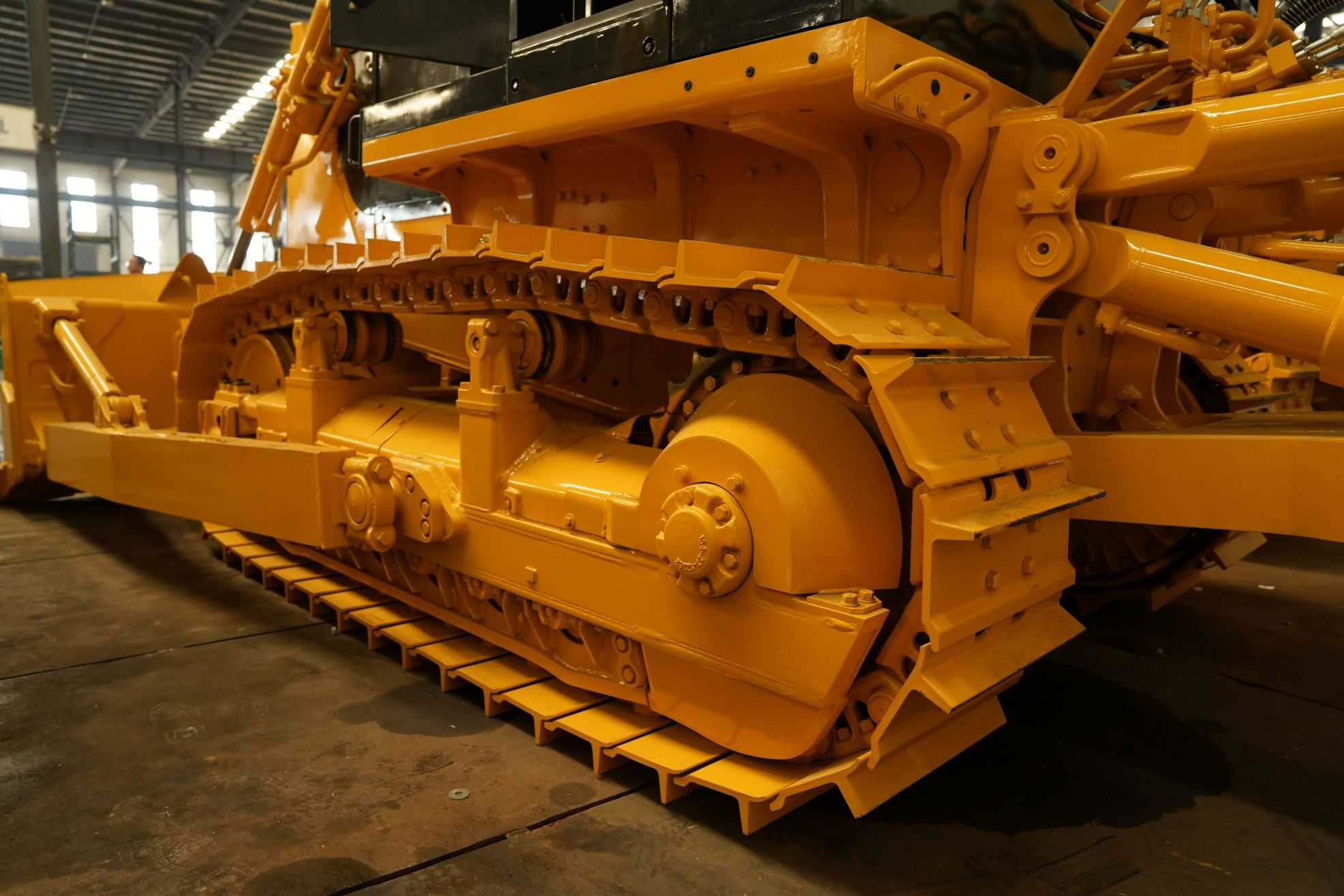

Chassis configuration:
Each side has 6 supporting wheels and 2 guide sprockets.
It is equipped with 37 single-tooth track plates, with a track width of 1880mm, ensuring excellent stability and grip.

Service Assurance

METDEEMFully aware of the significance of continuous operation of equipment.
METDEEM has established an efficient global spare parts supply system.
Commonly used spare parts are in ample stock, and can respond to orders quickly.
At the same time, we provide professional online technical support and installation guidance.
The customer service team is available 24/7, ready to answer all kinds of questions you encounter during use and fully guarantee your construction progress.

Regarding us

METDEEM is an enterprise specializing in the research and manufacturing of construction machinery.
METDEEMlocated in Yantai, Shandong Province.
We always prioritize product quality and reliabilityand we have obtained ISO9001 certifications.
With solid workmanship and stable performance, our products have been exported to many countries all over the world, and we are committed to providing practical equipment solutions for customers in different fields.
