Engine Rated Power : 212/2000 kw/rpm
Operating weight : 37000 kg
Bucket Capacity : 1.62-1.82 m³
Experts recommend：The METDEEM 380-9 Large Excavator is highly recommended for its exceptional performance and unwavering reliability in heavy-duty engineering applications. Ideal for mining, large-scale earthmoving, and major infrastructure projects, the METDEEM 380-9 maintains consistent and stable performance even in the most challenging working conditions. It is the top choice for professional teams that prioritize productivity, efficiency, and long-term return on investment.
Energy saving and environmental protection
pure electric mode, strong power and cost saving.

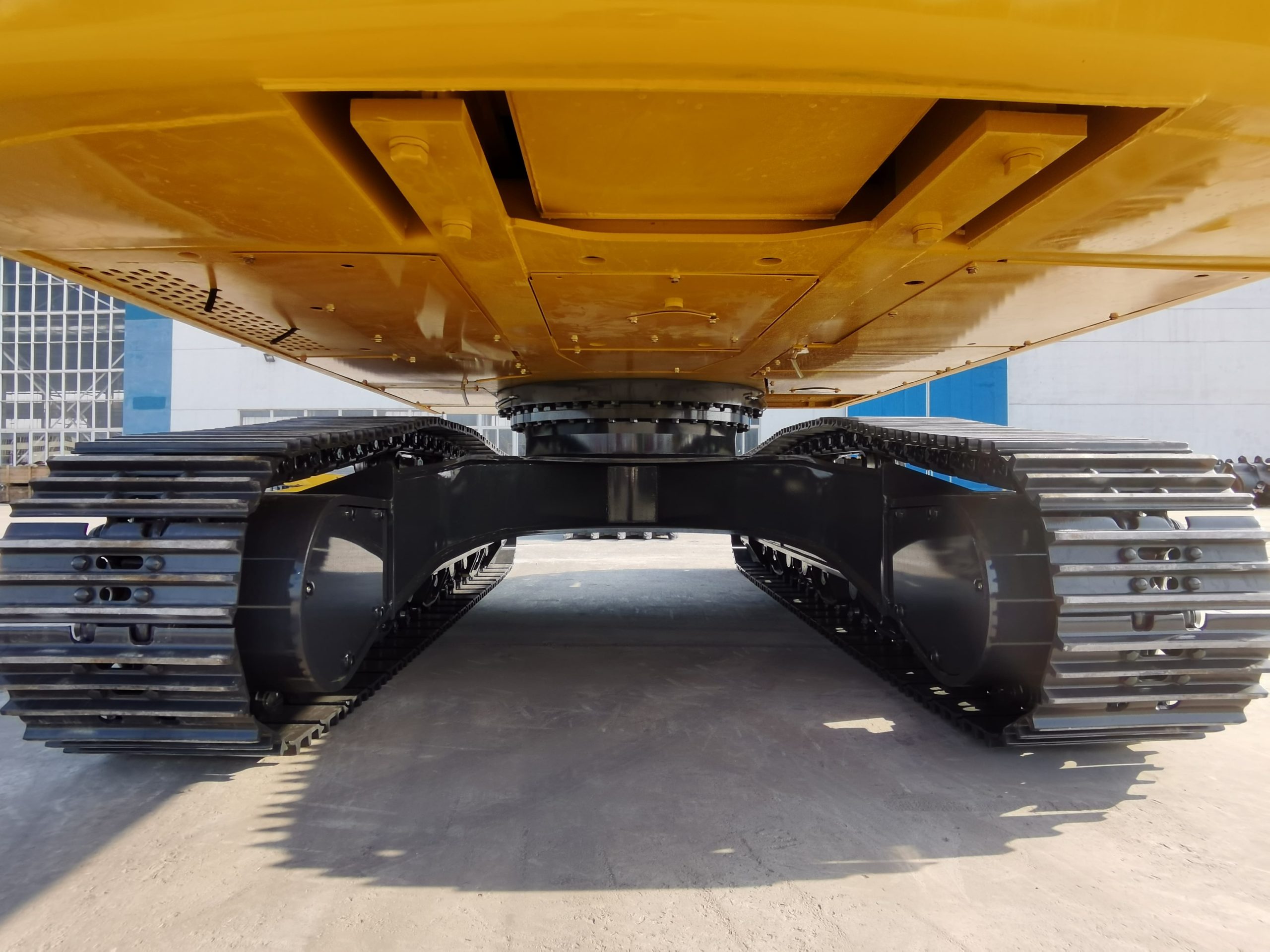

Adjustable Pitch Traveling Frame
Improves the stability of the excavator and facilitates the transportation work by providing a walking frame with adjustable spacing for transportation.
Integrated suspension seat
The two-stage slide-to design has a larger adjustment range to meet the needs of different operators. Adoption of cascading damping damping device can effectively offset bad vibration and effectively reduce driver fatigue.
Easy and comfortable operation
The operating handle is carefully designed according to the driver’s height and operating habits, allowing you to maximize the pleasure of driving. Convenient and durable hydraulic locking lever, to maximize the security while saving the time of getting on and off the excavator.
Fully automatic air conditioning
Dual-layer control function realizes a comfortable environment with cool head and warm feet Intelligent control and multi-directional air vents.
| 基本参数 Basic parameters | 性能参数 Performance specifications | ||
| 工作重量（ KG）Workingweight | 37000 | 行走速度（高/低km/h） Travel speed | 5.0/3.0 |
| 发动机额定功率(kw/rpm) power | 212/2000 | 回转速度(rpm) Swing speed | 9.7 |
| 铲斗容量（ m3）Bucket Capacity | 1.62-1.82 | 爬坡能力（ 35°) Gradeability | 70% |
| 液压系统Hydraulic System | 林德Linde | 燃油箱容量（ L） Hydraulic tank capacity | 580 |
| 行走马达 Walking motor | 力士乐/OK | 排量（ L） Displacement | 7.79 |
| 发动机型号 Engine Model | 五十铃6HK1X | ||
| 整机尺寸 Dimensions | 作业范围 Working scope | ||
| 总长（运输时） (mm) Overall length | 11161 | 最大挖掘高度(mm) Max. digging height | 11056 |
| 总宽度(mm) Overall width | 3200 | 最大卸载高度(mm) Max. dumping height | 6905 |
| 总高度（动臂顶部）(mm) Transport height | 3347 | 最大挖掘深度(mm) Max. digging depth | 6755 |
| 上部宽度(mm)Overall width of upperstructure | 3195 |
最大垂直臂挖掘深度(mm) Max. vertical wall digging depth | 6452 |
| 总高度（驾驶室顶部）(mm) Overallheight of cab | 3293 | 最大挖掘距离(mm) Max. digging reach | 10645 |
| 标准履带板宽度(mm) Shoe width | 600 | 最小回转半径(mm) Min. swing radius | 4418 |
| 最小离地间隙(mm) Min.groundclearance | 565 | ||
| 尾部回转半径(mm) Tail swing radius | 3438 | ||
| 履带接地长度(mm) Track ground length | 5872 | ||
Energy saving and environmental protection
pure electric mode, strong power and cost saving.
Adjustable Pitch Traveling Frame
Improves the stability of the excavator and facilitates the transportation work by providing a walking frame with adjustable spacing for transportation.
Integrated suspension seat
The two-stage slide-to design has a larger adjustment range to meet the needs of different operators. Adoption of cascading damping damping device can effectively offset bad vibration and effectively reduce driver fatigue.
Easy and comfortable operation
The operating handle is carefully designed according to the driver’s height and operating habits, allowing you to maximize the pleasure of driving. Convenient and durable hydraulic locking lever, to maximize the security while saving the time of getting on and off the excavator.
Fully automatic air conditioning
Dual-layer control function realizes a comfortable environment with cool head and warm feet Intelligent control and multi-directional air vents.
| 基本参数 Basic parameters | 性能参数 Performance specifications | ||
| 工作重量（ KG）Workingweight | 37000 | 行走速度（高/低km/h） Travel speed | 5.0/3.0 |
| 发动机额定功率(kw/rpm) power | 212/2000 | 回转速度(rpm) Swing speed | 9.7 |
| 铲斗容量（ m3）Bucket Capacity | 1.62-1.82 | 爬坡能力（ 35°) Gradeability | 70% |
| 液压系统Hydraulic System | 林德Linde | 燃油箱容量（ L） Hydraulic tank capacity | 580 |
| 行走马达 Walking motor | 力士乐/OK | 排量（ L） Displacement | 7.79 |
| 发动机型号 Engine Model | 五十铃6HK1X | ||
| 整机尺寸 Dimensions | 作业范围 Working scope | ||
| 总长（运输时） (mm) Overall length | 11161 | 最大挖掘高度(mm) Max. digging height | 11056 |
| 总宽度(mm) Overall width | 3200 | 最大卸载高度(mm) Max. dumping height | 6905 |
| 总高度（动臂顶部）(mm) Transport height | 3347 | 最大挖掘深度(mm) Max. digging depth | 6755 |
| 上部宽度(mm)Overall width of upperstructure | 3195 |
最大垂直臂挖掘深度(mm) Max. vertical wall digging depth | 6452 |
| 总高度（驾驶室顶部）(mm) Overallheight of cab | 3293 | 最大挖掘距离(mm) Max. digging reach | 10645 |
| 标准履带板宽度(mm) Shoe width | 600 | 最小回转半径(mm) Min. swing radius | 4418 |
| 最小离地间隙(mm) Min.groundclearance | 565 | ||
| 尾部回转半径(mm) Tail swing radius | 3438 | ||
| 履带接地长度(mm) Track ground length | 5872 | ||
