Powerful and durable 23-ton crawler excavator METDEEM DM230LC Earthwork excavation and mining operations

Powerful and durable 23-ton crawler excavator METDEEM DM230LC Earthwork excavation and mining operations3

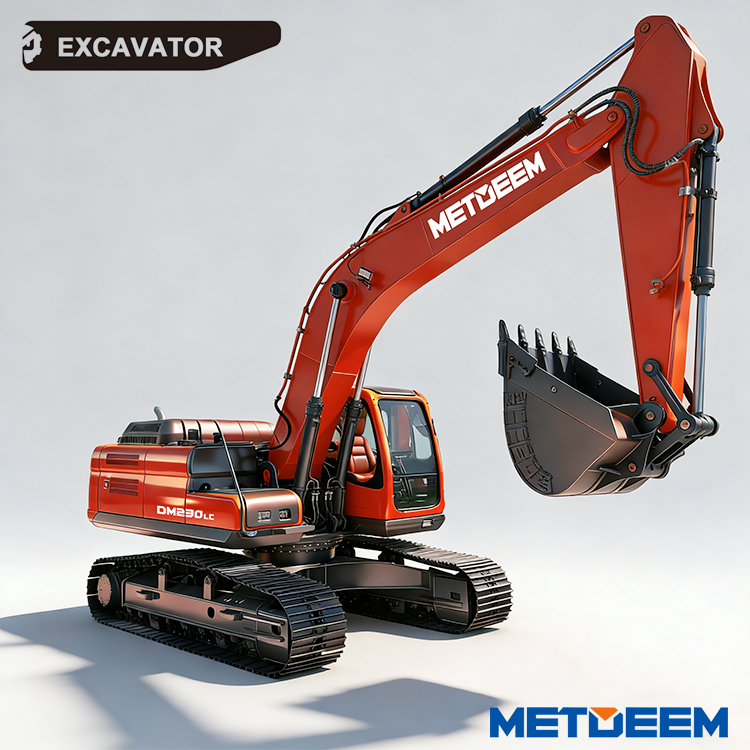

Powerful and durable 23-ton crawler excavator METDEEM DM230LC Earthwork excavation and mining operations4

Powerful and durable 23-ton crawler excavator METDEEM DM230LC Earthwork excavation and mining operations

Brand: METDEEM
Origin: Manufactured in Yantai, Shandong Province
Application scenarios: Suitable for large-scale earthwork operations such as earth and rock excavation, mine stripping, river regulation, and general infrastructure construction.
Customization: We can customize the working device, chassis configuration, and power form according to your specific construction needs.
After-sales: We provide stable spare parts supply and clear technical support to ensure the equipment operates reliably and continuously on your construction site.

Chat Now

Chat Now

Powerful and durable 23-ton crawler excavator METDEEM DM230LC Earthwork excavation and mining operations

Technical features

Solid configuration, efficient operation

The core components of DM230LC are selected from mainstream brands.
It is equipped with Isuzuengine and Kawasaki hydraulic pump, providing ample power and quick response.
Under standard conditions, the fuel consumption is about 12 liters per hour.
Combined with a 1.1 cubic bucket, the unit fuel consumption output is solid.

High adaptability, customizable as needed

In addition to the standard configuration, various devices can be selected based on specific working conditions.
Whether it’s a telescopic arm or a long arm for building demolition, or a material handling machine, a pile driver, a water-land amphibious version, or even a pure electric drive solution, they can all be customized as needed to achieve multi-purpose operation with one machine.

Emphasize safety and durability

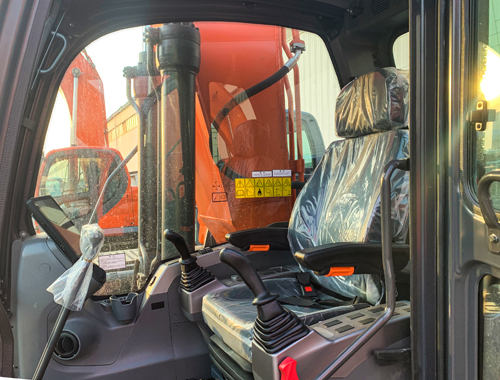

The cab has passed ROPS and FOPS certifications, and is equipped with shock-absorbing seats and safety belts.
The boom and bucket are reinforced with Q355B manganese plates.
The width of the crawler plates can be selected up to 1000 millimeters.
The design of key structural components focuses on reliability under long-term heavy loads.

Global applicable, user-friendly

Depending on the emission stage, the instrument system supports multi-language display.

From physical buttons to LCD touch screens, the operation interface is clear and intuitive, making it suitable for operators in different regions to quickly adapt.

Core performance and configuration

Overall specifications:

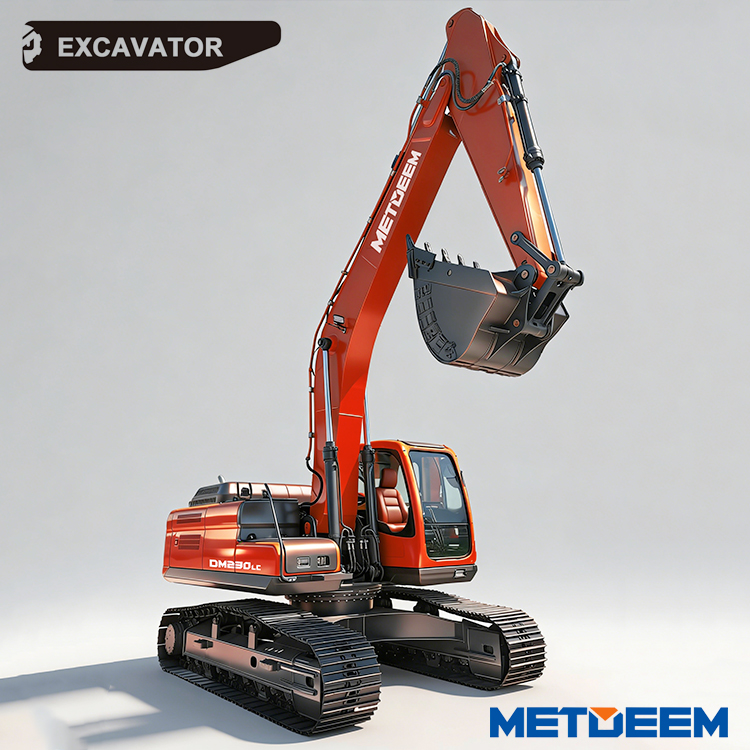

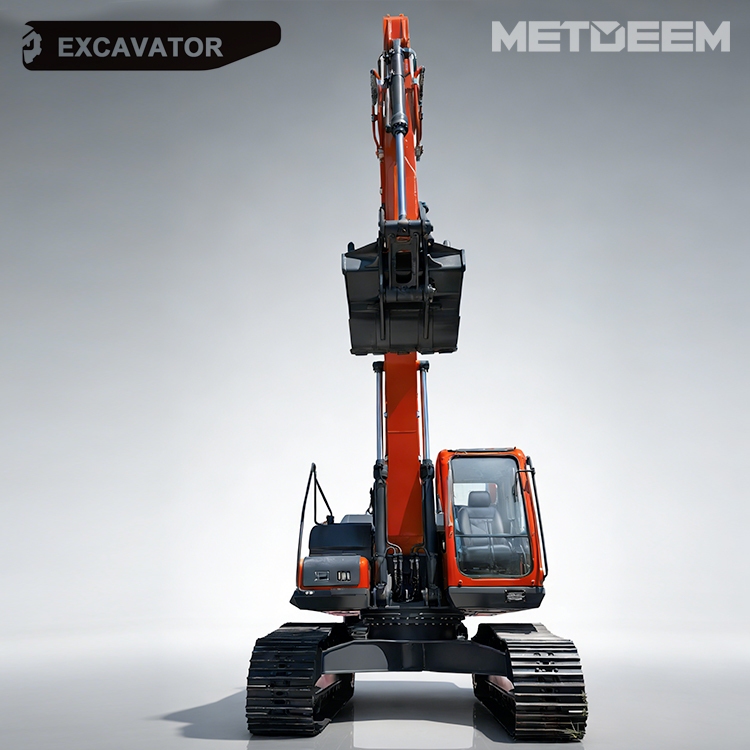

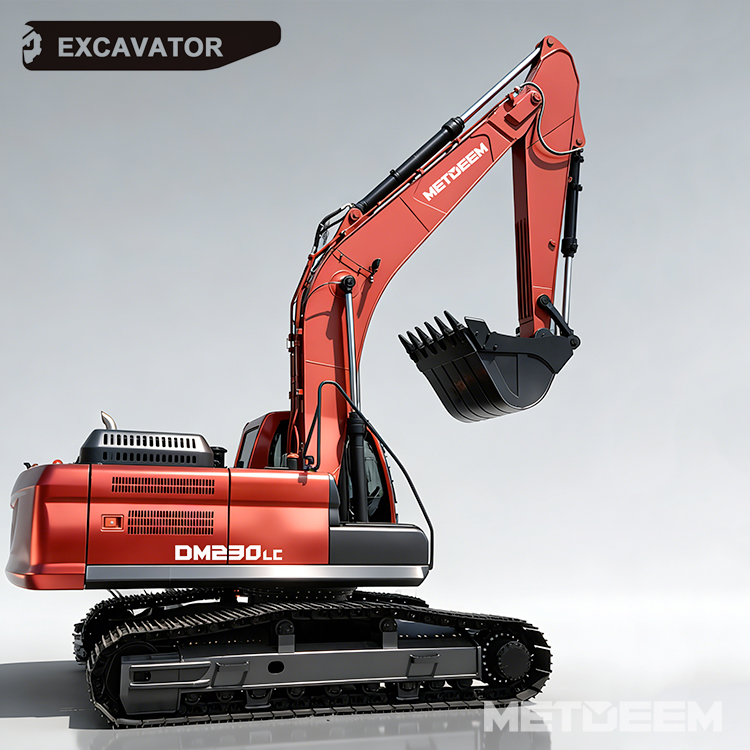

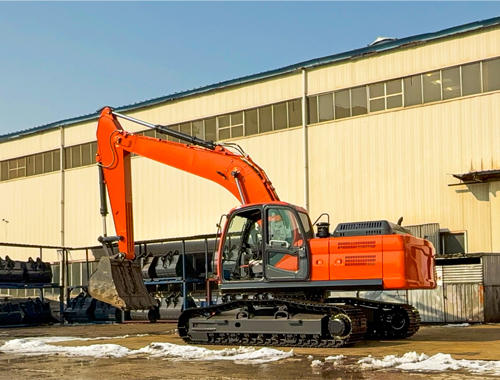

The machine weighs 23 tons and comes with a 1.1 cubic bucket.
The total length of the boom and slewing arm is 8.6 meters, the width of the chassis is 3 meters, providing a good working range and stability.
Power and hydraulics:
Equipped with a Isuzu 4HK1 engine with a rated power of 133 kilowatts.

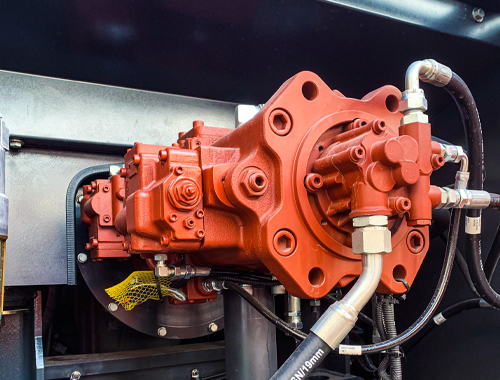

The hydraulic system uses Kawasaki main pump and control valves, combined with Doosan traveling motor, with good system coordination.
Chassis and structure:

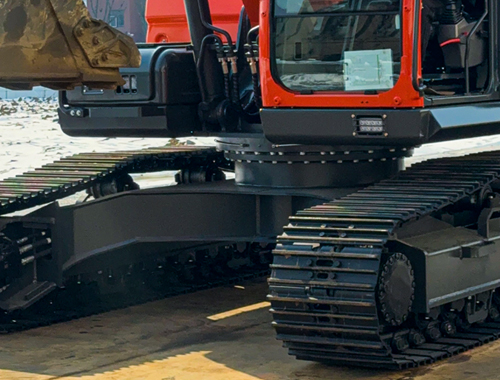

Standard 600 mm wide track plate , 49 links on each side, with a layout of 9 upper and 2 lower support wheels.
The frame and working device are strengthened with Q355B manganese steel to cope with heavy-duty conditions.

Optional Configurations and Certifications

Custom Options:
In addition to the standard configuration, we can offer practical accessories such as broken pipe protection, safety nets, and rearview cameras. Various professional configurations such as extended arms, telescopic arms, material grabbers, and pure electric drives can also be selected based on the working conditions.
Safety and Standards:
The cab has passed ROPS/FOPS certification, and key components such as the cylinders are supplied by domestic leading suppliers. The entire machine complies with ISO9001 and CE certification requirements and meets most international market entry conditions.
Our service support：
We have established stable supply channels for core components and consumables, and provide operation and basic fault diagnosis guidance.
In case of technical issues with the equipment, we can offer remote support through professional means or coordinate on-site services, aiming to help you maintain the equipment’s availability rate.

Regarding the manufacturer

METDEEM is an engineering machinery manufacturing enterprise located in Yantai, Shandong Province.
It focuses on the research and production of excavators and other earthmoving equipment.
We pay attention to starting from actual working conditions, strictly controlling the aspects of structural design, component selection and overall machine testing.
Our products have been applied in various construction scenarios both at home and abroad, and we are committed to providing users with sturdy and durable equipment options.
