Experts recommend:
METDEEM Hydraulic Rotation Steel Grabs are dedicated to the clamping operation of renewable resource materials.
Unique mechanical detail design:
1.larger opening,stronger grip,larger gripping capacity,ultra flexible rotation operation.
2.more wear-resistant protection design, enhanced service life,and equipped with safety protection valve to prevent material detachment,making use more reassuring.

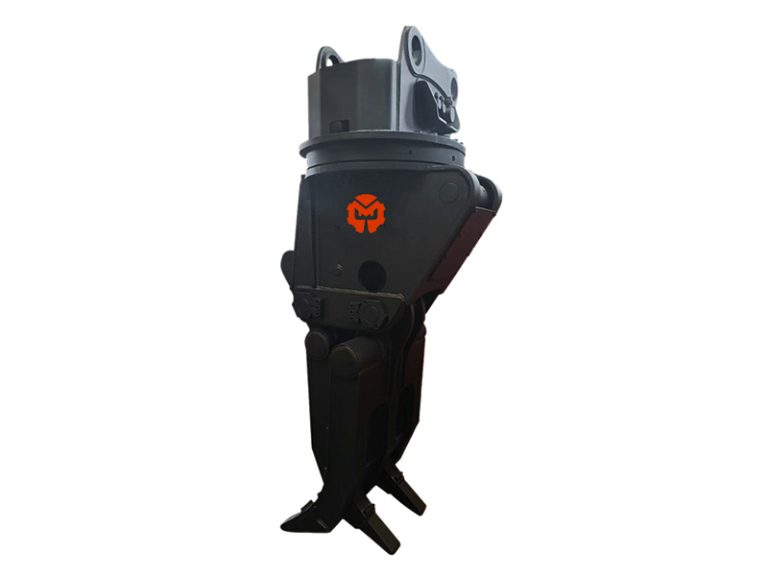

Metdeem Hydraulic Rotation Steel Grab
|
Item/Model |
Unit | DMRO4 | DMR06 | DMR08 | DMR10 |
| Weight | kg | 450 | 1015 | 1600 | 1700 |
| Heigt | mm | 1380 | 2050 | 2600 | 2600 |
| Width | mm | 425 | 560 | 720 | 820 |
| Oil Pressure | Kg/cm² | 120-160 | 150-170 | 160-180 | 160-180 |
| Set up Pressure | Kg/cm² | 180 | 190 | 200 | 210 |
| Operating Flue | L/min | 50-100 | 90-110 | 100-140 | 130-170 |
| Suitable Excavator | ton | 7-11 | 12-16 | 18-24 |
24-30 |
♥ The Specifications of this equipment are subject to change for improvements.
Our Services
Warranty
METDEEM Hydraulic Rotation Steel Grabs are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
