Metdeem Hydraulic and Electric Orange Peel Grapple for PC CAT Excavator for Large-capacity grasping work

Metdeem Hydraulic and Electric Orange Peel Grapple for PC CAT Excavator for Large-capacity grasping work

Experts recommend:

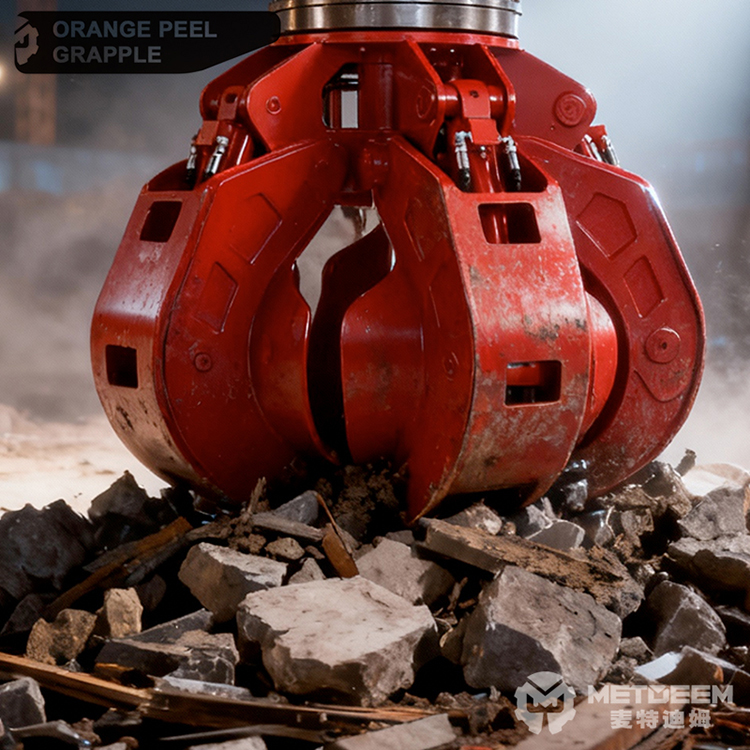

METDEEM Orange Peel/Lotus Grabber is an “intelligent and flexible hand” for handling loose and fragmented materials. Its multi-petal design is like a blooming lotus. When it closes lightly, it can grasp a large amount of stone materials, wood chips, thin steel, etc., and the closure is tight without any spillage.
It offers multiple modes such as rotation, swing and fixed, as well as built-in and external cylinder options, perfectly adapting to various demanding indoor and outdoor Spaces. It adopts imported motors and top-grade hydraulic seals, ensuring precise and smooth operation and excellent durability. This multi-functional machine enhances the efficiency of bulk material handling and adaptability to the site significantly , making it an excellent investment tool for improving operational flexibility.

Chat Now

Chat Now

Metdeem Orange Peel Grapple

It is specially designed for bulk materials such as stone, wood chips, and thin steel.
They are very suitable for handling the grasping and loading/unloading operations of bulk and fragmented materials.After multiple sections are closed, they form highly efficient containers. They have a large grasping capacity, tight closure, and the materials are less likely to spill.
The grappling flap can be designed with four or five grapple It features a semi-enclosed design for grasping large formed materials and a fully enclosed design for supporting small and fragmented materials. One machine can adapt to various material forms.
There are three modes : 360-degree infinite rotation, free swing, and mechanical fixation, meeting different operation requirements such as precise alignment, rapid tilting, and stable handling.

It can be applied to different working conditions both indoors and outdoors.

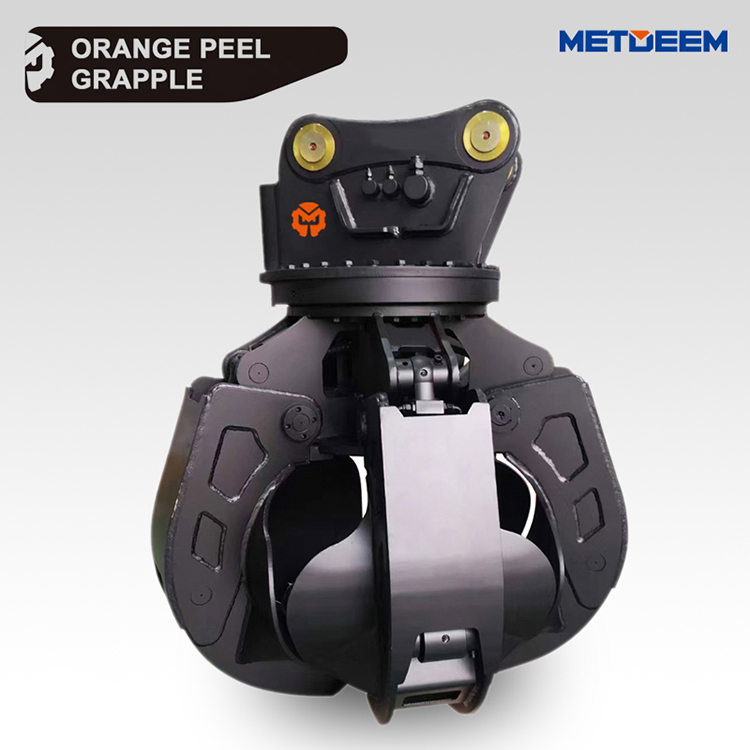

METDEEM ORANGE PEEL Built-in cylinder type can reduce the overall height, making it an ideal solution for indoor Spaces such as factories and warehouses or areas with height limitations, allowing for flexible and unobstructed movement.

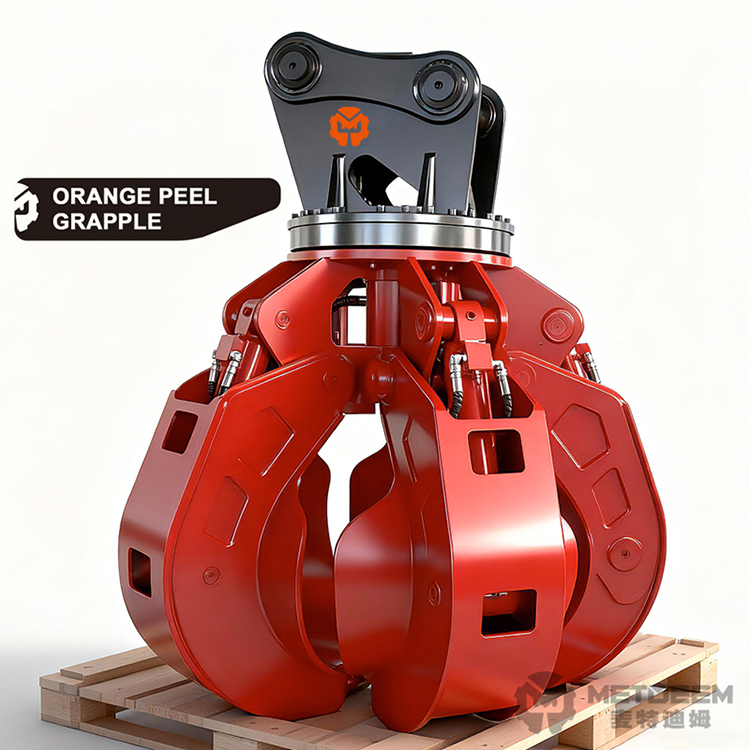

METDEEM ORANGE PEEL Exposed standard type structure of the oil cylinder is more convenient for maintenance and heat dissipation, suitable for the mostmajority of outdoor open areas, and has high reliability.

Durable material, large grasping capacity and strong grasping force
METDEEM rotating typeis equipped with an imported high-torque rotating motor and a braking system, ensuring smooth rotation, immediate stop and precise control.
Using special alloy steel, the pin has good strength and high toughness. And the oil cylinder useprecision honing tubes and imported oil seals, featuring excellent sealing performance, smooth operation and a long service life.
The entire structure is made of high-strength wear-resistant steel, ensuring lightness while enhancing the wear resistance of frequently rubbed areassignificantly , making it less prone to deformation and wear.

Safe and intelligent, easy to operate
METDEEM ORANGE PEEL hydraulic system responds sensitively and operates flexibly. The rotary braking function effectively prevents the load from swinging unexpectedly, enhances the safety of the operation, and is especially suitable for crowded or precise operations.

Metdeem Orange Peel Grapple

— how to select a lotus grip that is suitable for excavators? Please refer to the parameter standards of METDEEM lotus grips

Select based on the material characteristics, operation scenarios, and action requirements

For handling fine bulk materials such as crushed stones, wood chips, and scrap metal shavings, the fully enclosed grabber is the first choice to achieve “no leakage at all”.
For the treatment of small and medium-sized stones, wood and molding waste, semi-enclosed grab discs are chosen, which take into account both grasping force and passability.
For indoor, low-rise Spaces and warehouses, choose compact models with built-in oil cylinders and give priority to the overall height parameters.
For outdoor open areas, material yards and docks, the standard type with exposed oil cylinders can be selected, which is convenient for maintenance and has wide adaptability.
If you need precise stacking and arbitrary Angle placement, you can choose the 360-degree rotating type, which is flexible to operate.
For rapid loading and unloading and dumping operations, choosing a swing type or a fixed type may be more cost-effective.

2.match based on the parameters of the excavator or crane

According to the tonnage and model of the equipment, the lotus grab has a clear range of suitable equipment tonnage. It is essential to ensure that the lifting/operating capacity of the excavator or crane matches it, and overloading is strictly prohibited.
Match the compatibility of the hydraulic system, confirm the hydraulic flow rate, rated working pressure, maximum working pressure and other parameters of the main equipment, and confirm the drive requirement parameters of the lotus oil grab cylinder and the rotary motor to ensure parameter matching and maximize the working performance.

3.Verification of Key Performance Parameters

The capture capacity (m³) determines the single operation volume.
The opening and closing diameter (mm) determines the grasping range.
The self-weight (kg) must be within the allowable operating weight range of the main equipment.
Rotation torque (Nm) : The ability to determine the rotational load.

Item/model	Unit	DM-04	DM-06	DM-08	DM-10
Weight	kg	510	800	1560	1800
Max jaw opening	mm	1600	1700	1950	2180
Height of losed graple	mm	1440	1540	1650	1860
Set up pressure	bar	260	260	260	260
Operating flux	lpm	20-70	60-120	60-120	60-120
Cylinder Volume	litre	400	600	800	1000
No.of Jaw	piece	4-5	4-5	4-5	4-5
Suitable excavator	Ton	5-11	12-18	18-25	26-35

Our Services– Manufacturer Service

In-depth analysis of working conditions and customized solutions: We offer free technical consultation. Based on your specific materials, space constraints, and efficiency targets, we recommend the most suitable flap form (four-flap/five-flap, semi-sealed/fully sealed), action type, and cylinder layout plan. Full customization is supported.
Global integrated export delivery: We are responsible for the full set of international logistics from the Chinese factory to the destination port or construction site you specify, including container transportation, insurance, export customs declaration and the processing of all compliance documents (such as CE certification, test reports, certificates of origin).
Digital Technology Delivery Package: It provides 3D model diagrams, hydraulic and electrical connection diagrams, detailed installation and commissioning manuals in multiple languages, and high-definition video tutorials. It supports remote video connection guidance for installation and initial commissioning.
Operation and Maintenance Empowerment Training: We can provide standardized electronic courseware on safety operation procedures (SOP) and videos on key points of maintenance and care to help your team get on duty quickly and safely and extend the service life of the equipment.

Warranty– After-sales guarantee

One-year long-term quality warranty period, mainly covering the main components of the lotus grab such as the grab flap, core structural parts, oil cylinder, and rotary motor housing.
Spare parts warehouses are set up at major logistics hubs around the world to ensure the rapid supply of key consumable parts and spare parts such as wear-resistant grab plates, rotary seal assemblies, and hydraulic cylinder repair kits.
24/7 online customer service, international technical service hotline and online support, can provide various fault diagnosis, emergency handling online guidance or consultation.
Please provide the model of your host equipment, sample photos or descriptions of the materials you often handle, as well as the main indoor or outdoor operation scenarios. Our customer service advisors will conduct precise virtual matching and selection recommendations for you to help you make the best decision.
