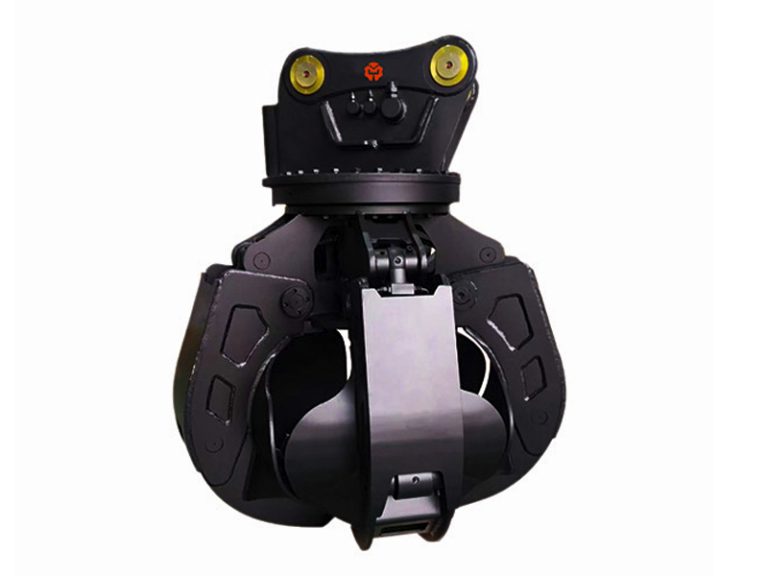

Metdeem Orange Peel Grapple

Experts recommend：

Metdeem Orange Peel Grapples

are designed with compact structure as compared with wide opening width. Cylinder demonstrates the strong power and has excellent durability. JAW which is made of strong quality of the material and heat treatment is light and has excellent abrasion-resistant. Really simple head adjustment device maximize the operation efficiency

Chat Now

Chat Now

▶Using NM500 wear-resistant steel,lightweight and wear-resistant;

▶The pin shaft is made of 42CrMo alloy steel with an internal oil channel,which has high strength and good toughness;

▶Optional Swiss imported rotary motor;

▶The rotary type uses a vertical car motor rotation system,with 360°rotation and brake function;

▶ The oil cylinder adopts honing tube and imported HALLITE oilseal,with short working cycle and long service life.

Metdeem Orange Peel Grapple

Item/model	Unit	DM-04	DM-06	DM-08	DM-10
Weight	kg	510	800	1560	1800
Max jaw opening	mm	1600	1700	1950	2180
Height of losed graple	mm	1440	1540	1650	1860
Set up pressure	bar	260	260	260	260
Operating flux	lpm	20-70	60-120	60-120	60-120
Cylinder Volume	litre	400	600	800	1000
No.of Jaw	piece	4-5	4-5	4-5	4-5
Suitable excavator	Ton	5-11	12-18	18-25	26-35

Our Services

We can offer a comprehensive range of excavator logging attachments such as wood grappler, forestry grapple, backhoe log grapple, excavator timber grabber, log grab for mini digger, mini-excavator log gripper, log grapple attachment for excavator, small log grapple, etc…
You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.
We will keep your business information confidential.
We promise to reply to you upon receipt of your inquiry within 12 hours.
The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.
OEM/ODM，Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty

Metdeem Orange Peel Grapples are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
