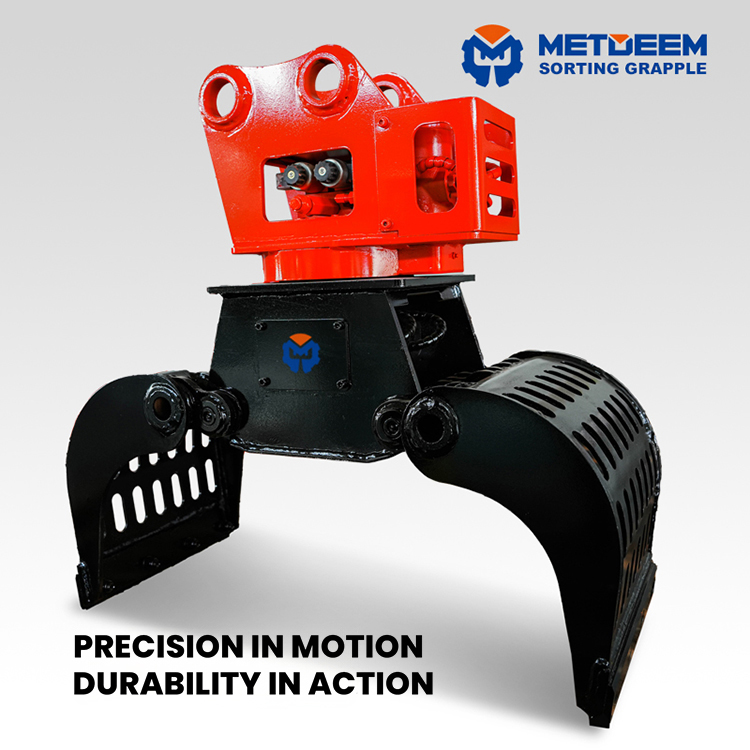

METDEEM Powerful DM04 Hydraulic Demolation Sorting Grapple for CAT PC Excavator Diversified grasping Work

METDEEM Hydraulic Demolation Sorting Grapple1

METDEEM Hydraulic Demolation Sorting Grapple

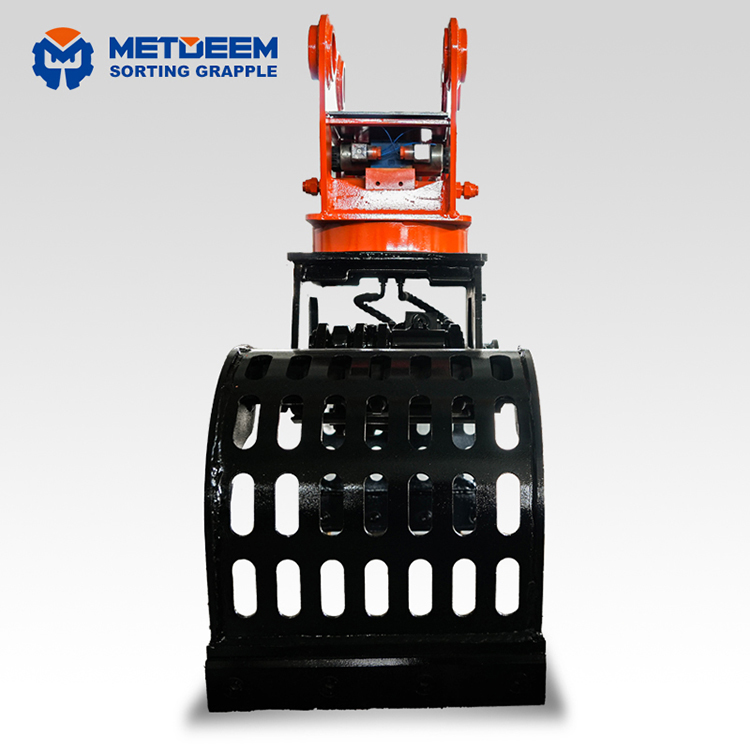

METDEEM Hydraulic Demolation Sorting Grapple2

METDEEM Hydraulic Demolation Sorting Grapple3

METDEEM Powerful DM04 Hydraulic Demolation Sorting Grapple for CAT PC Excavator Diversified grasping Work

Experts recommend：

METDEEM demolition sorting rotary grab is an all-round solution in the field of engineering recycling. Its core advantage lies in integrating efficient sorting, powerful grasping and 360° infinite rotation, significantly expanding the functional boundaries of excavators.

It adopts imported special alloy steel motors, which are powerful and extremely wear-resistant and durable, and can easily handle heavy and harsh working conditions such as metal recycling and building demolition. With professional global customized services and after-sales guarantees, it ensures that customers can enjoy stable and efficient equipment performance and return on investment anywhere in the world. It is an ideal equipment for achieving automated handling and cost reduction and efficiency improvement.

Chat Now

Chat Now

Metdeem Hydraulic Demolation Sorting Grapple –Core Highlights of the Product

The product integrates three core functions: sorting, grasping and rotating. It is not only a powerful disassembly tool but also an efficient material handling and loading/unloading tool, often used for grasping and loading/unloading operations of scrap metals, recycled plastics, recycled paper, thin and light materials, etc.
The imported rotary motor is made of special alloy steel, providing powerful and stable hydraulic power. In heavy and high-intensity material grasping operations, it has stronger wear resistance, impact resistance and structural toughness, and its service life can also be effectively extended.
Rotary design model, through high-performance rotary motor, can achieve bidirectional infinite rotation. The operator can easily complete multi-directional and precise grasping and placement in the cab, which is particularly suitable for operation in narrow Spaces and complex working conditions.
Specifically designed for heavy materials, the jaw plate structure is optimized, featuring a large grasping capacity and strong closing force. Some key structural components of the product have undergone multiple processing techniques, which can easily handle the challenges of hard and irregular materials such as scrap metals and large pieces of construction waste, making it sturdy and durable.
Hydraulic drive, flexible adaptability, and highly integrated with the hydraulic system of excavators. It needs to be replaced with a bidirectional foot valve that can be adapted to excavators of various brands and tonnages, and transformed into an excavator tonnage.

Product Model Parameters and Excavator Compatibility Selection Guide

METDEEM offer products suitable for different excavator models. It is excellent performance with high durability. The core parameters include: jaw plate capacity, maximum opening width, closing force, working pressure, total weight, and the tonnage range compatible with excavators.

How to correctly select your excavator?

Clarify the tons of the excavator to determine the appropriate model of grab and screening bucket.
Verify the working pressure and flow rate of the hydraulic system required for the product to ensure compatibility with the output parameters of your excavator’s hydraulic system, so as to guarantee the best performance and efficiency of the grab and screening bucket.
Select the model based on the working conditions

For light materials such as waste paper and plastic, standard models suitable for excavators can be selected, with emphasis on grasping volume and speed.
For heavy or large materials (such as scrap steel and stone), it is recommended to choose a model that is slightly heavier than the lower limit of the excavator’s compatibility, or select a reinforced type to achieve greater structural strength and closing force, ensuring operational stability and durability.

For operations that require extreme flexibility such as loading and unloading and fine sorting within the warehouse, choose models equipped with 360° rotation function.

Demolition and Sorting Grapple
Category	Unit	DM01	DM02	DM04	DM06	DM08	DM10
Rotation angle		360	360	360	360	360	360
Motor Pressure	kg/cm²	90-110	110-120	110-120	130-150	130-150	130-150
Motor Flow	lpm	20-35	30-55	30-55	40-70	40-70	40-70
Oil Cylinder FORCE	ton	4	8	9	15	16	18
Oil Cylinder Pressure	kg/cm²	110-140	160-200	160-200	180-230	180-230	200-250
Operating flow	lpm	25-40	30-55	50-100	90-110	100-140	90-150
Excavator weight	ton	3-4	4-6	6-9	12-16	17-25	26-35
Open width A	mm	1160	1400	1500	1700	1950	2400
Width C	mm	450	500	600	800	1030	1200
Weight	kg	200-220	310-330	440-460	900-960	1350-1500	1700-2100

♥ The Specifications of this equipment are subject to change for improvements.

Our Services

METDEEM offers complete export documents including commercial invoices, packing lists, certificates of origin, and customs clearance certificates that meet destination requirements, as well as professional English packaging and clear labels to ensure smooth customs clearance of goods.
METDEEM can provide non-standard customization based on the excavator model, hydraulic system parameters and working conditions required by the customer.
METDEEM offers detailed operation manuals or installation videos, as well as online technical guidance to ensure that customers can install and use the equipment correctly.

Warranty–After-sales service

METDEEM guarantees long-term stable supply of core vulnerable parts such as jaw teeth, shaft sleeves, and seals, as well as hydraulic motors, and delivers them quickly through international logistics.
All products undergo strict testing before leaving the factory and come with a 12-month warranty on core components (depending on the model). During the warranty period, if any malfunction is caused by product quality issues, free repair or part replacement will be provided.
Provide 7× 24-hour online technical consultation. For customers’ inquiries about installation and usage, we promise to provide a solution within 48 hours.
