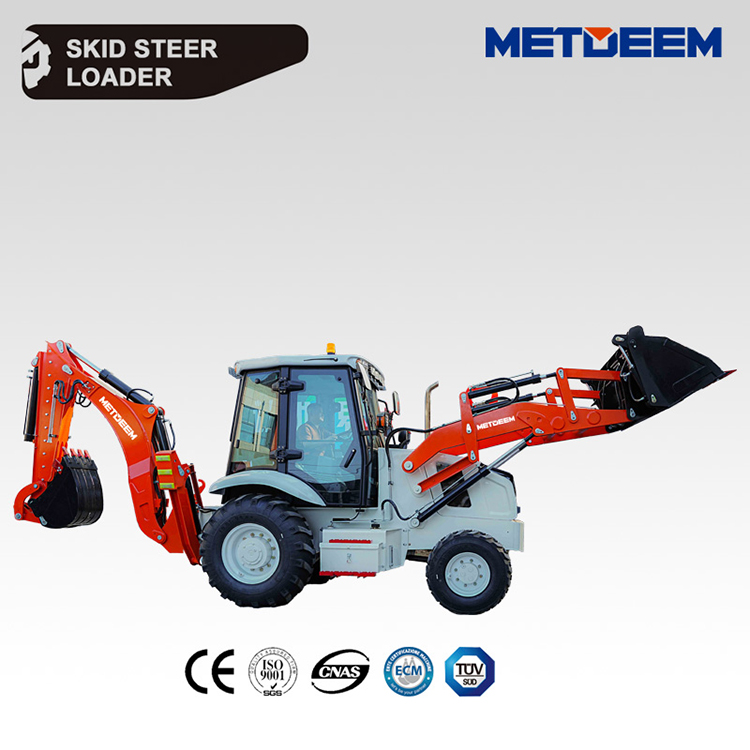

Flexible multi-purpose Dual-function front and rear mining loader METDEEM DM3CX

Brand: METDEEM
Origin:Shandong, Yantai, China
Application scenarios: Usedfor small-scale civil engineering, farmland water conservancy, municipal maintenance, and courtyard renovation, etc. With just one machine, it can alternately complete tasks such as digging ditches, loading, leveling, and transportation.
Customization: We support customizing attachments or partial configurations according to your specific construction needs.
After-sales: Stable supply of accessories, providing technical support to ensure that your equipment can receive assistance when needed.

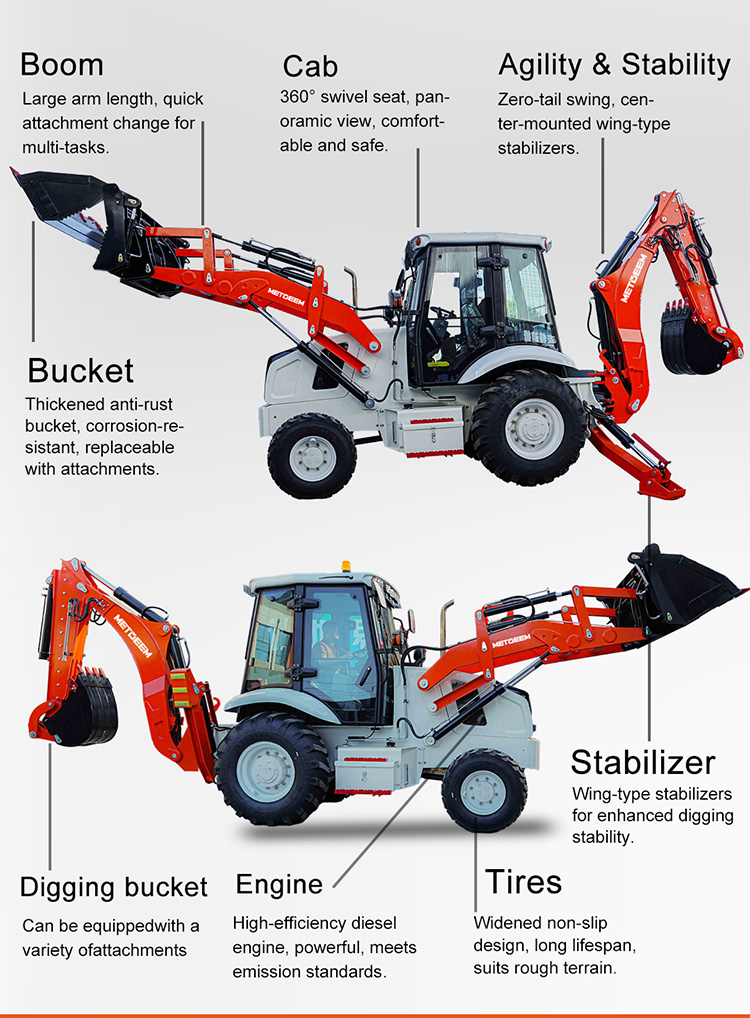

Technical features

First Section: Product Selling Points and Features

Dual-purpose, saving space and effort

One machine can handle the functions of two, making it particularly suitable for jobs with limited space and complex procedures.
The most practical aspect of the DM3CX is that there are tasks to be done on both the front and the back.

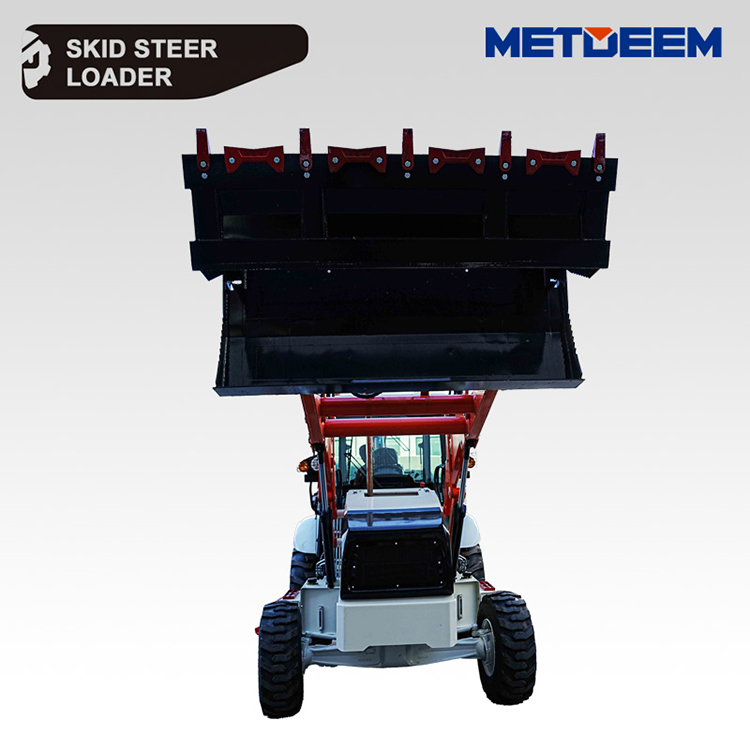

The front is equipped with a bucket, allowing for easy tasks such as loading and transporting.

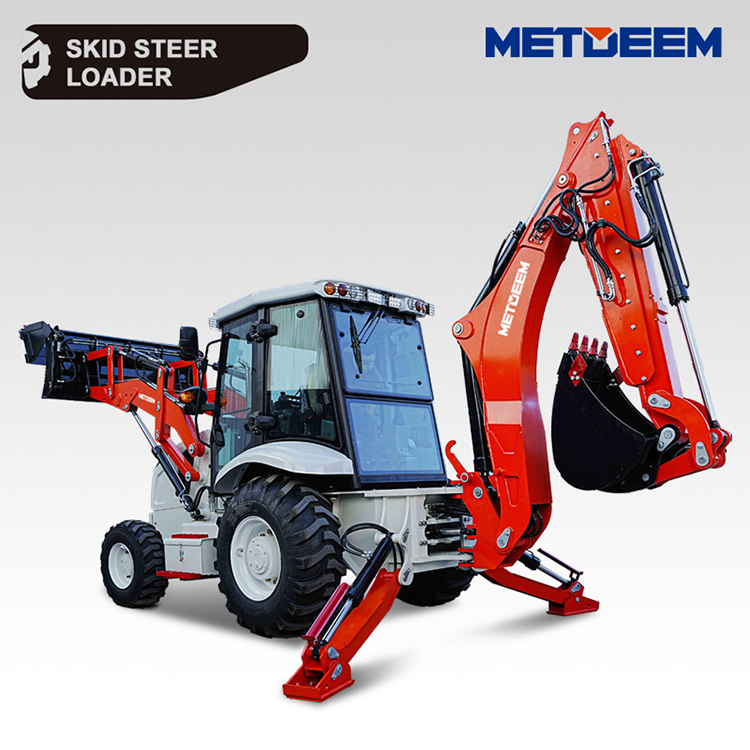

The back has an excavating arm, making it capable of digging ditches, preparing the ground, and clearing debris.

The interior is bright and the operation is smooth.

The driver’s cabin is quite spacious, with large glass areas and clear views all around.
Various control levers and buttons are arranged conveniently.
The seats can be adjusted, and there are also fans and heaters.
Even if you stay in the vehicle for a long time, you won’t feel too uncomfortable, and you can work more concentratedly.

Strong bones and durable reliability

The entire machine is equipped with an enhanced heavy-duty frame.
The plates and shaft sleeves in key areas have been strengthened, making it more resilient to uneven roads and repeated heavy-duty operations.
From a structural perspective, the materials are solid and the durability is guaranteed.

Safety is not compromised

The cab has passed rollover and debris prevention certifications.
The iron shell gives a sense of security. It is equipped with LED headlights, which illuminate a large area at night and can also be optionally equipped with a rearview camera for better control during reversing and observing the rear.

The attachments are numerous and versatile.

In addition to the standard bucket and digging bucket, it can also be equipped with hydraulic breaker hammers, rotating grabs, quick couplings, and even agricultural tools.
The installation is convenient and it can handle a wider range of tasks such as crushing, grasping, and land cultivation.

Key dimensions and performance

DM3CX complete machine weighs approximately 9.5 tons.
Transportation mode：6 meters long and 2.26 meters wide, with good maneuverability.
The front bucket：holds 1.5 cubic meters and can lift 2.8 tons of materials;
The rear bucket：3 cubic meters and has a digging force of 38 kilonewtons, with a maximum digging depth of 4.1 meters.

Core system composition

Power and transmission：
—Engine：Yuchaiturbocharged, with a power output of 85 kilowatts, providing ample power.
The vehicle can reach a maximum speed of 30 kilometers per hour on the road.
–It is matched with a hydraulic torque converter and a fixed-axis gearbox, featuring 4 forward and 4 reverse gears.

Hydraulic and operation:
The main hydraulic system has a pressure of 22 megapascals.
The lifting, lowering, and discharging of the bucket are quicklycarried out , with short cycle times and high working efficiency.
Chassis and braking:
It adopts air-powered hydraulic calipers for disc brakes, with self-adjustment and self-balancing functions.
The braking is stable. Additionally, there is an independent emergency braking system, providing an extra layer of safety.

After-sales service

If you encounter any problems during use, you can contact us at any time. We are committed to being your reliable back-up support for your equipment.
Clear warranty commitment: The entire machine is provided with a warranty period in line with industry standards. Core components such as the engine, transmission system, and hydraulic main pump enjoy a longer quality guarantee period. The specific warranty policy is clear and transparent, allowing you to use it with greater peace of mind.
Timely supply of accessories: Common maintenance parts, wear-prone parts, and key assembly parts maintain sufficient inventory, supporting quick inquiries and global shipping, minimizing downtime caused by waiting for parts.
Adequate technical support: We offer 7×24-hour online technical consultation. Whether it’s operational questions, fault diagnosis, or maintenance guidance, professional personnel will answer your questions. For complex issues, local service resources can be coordinated or engineers can provide remote support.

Regarding us

METDEEM is based in Yantai, Shandong Province.
It is a company specializing in construction machinery and hydraulic components. We have always prioritized the reliability and practicality of our equipment.
The products we produce should enable users to actually make money.
Our products, ranging from small excavators to those used for both front and rear operations, have been sold to many countries, and it is precisely this practicality that has enabled us to succeed.
