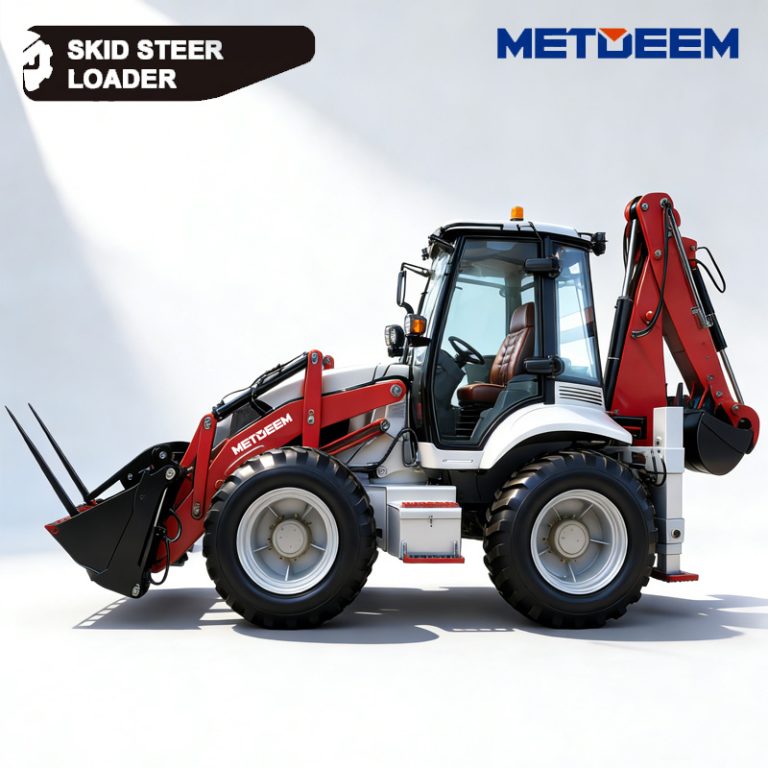

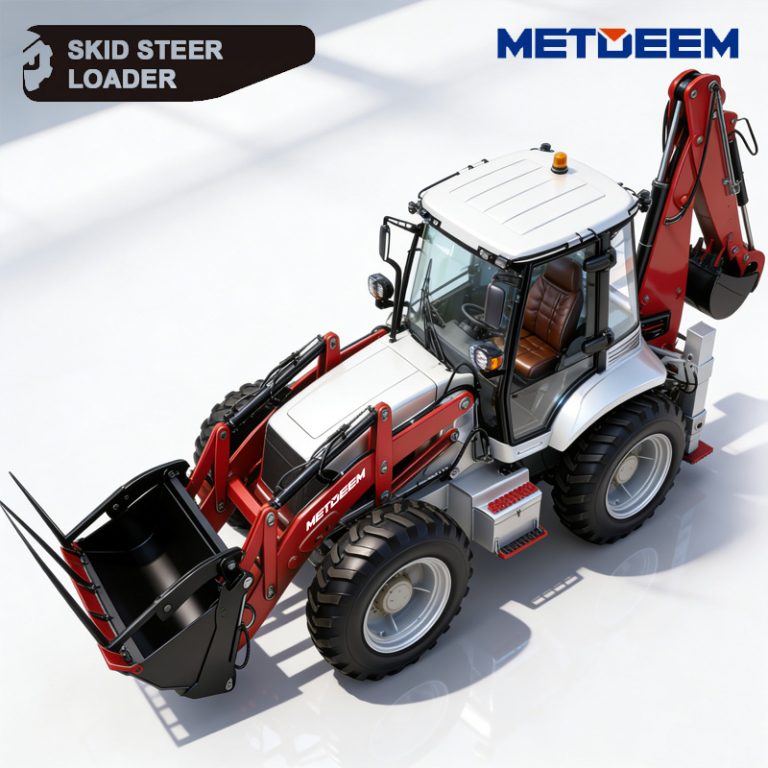

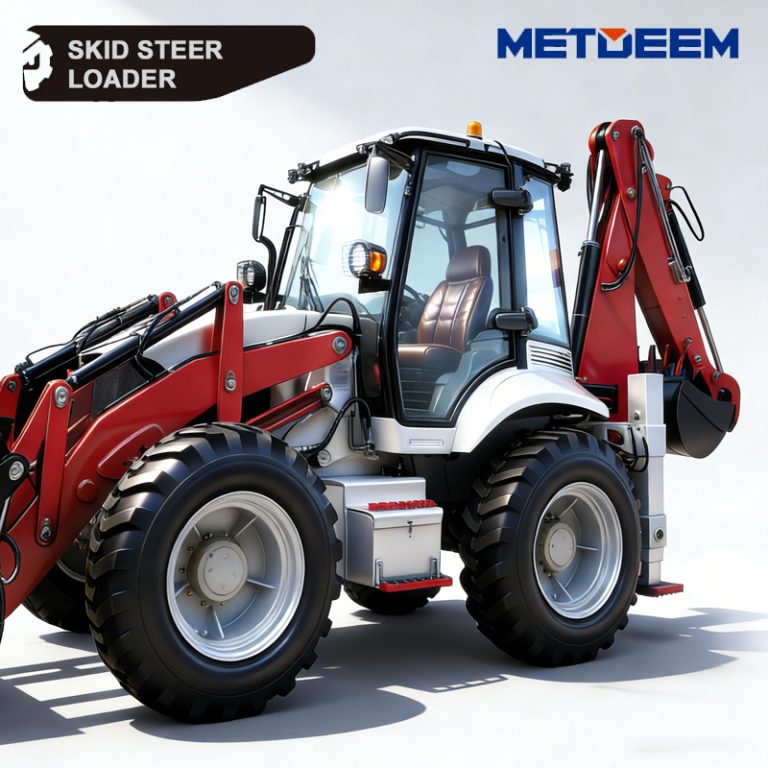

High-efficiency dual-action Multi-directional mode mining loader METDEEM DM4CX

Brand: METDEEM
Origin:Manufactured in Yantai, Shandong Province
Application scenarios:
This “dual-purpose” machine is particularly suitable for small-scale infrastructure projects, municipal pipelines, farmland water conservancy, and site reclamation, etc.
With just one machine,it can handle various miscellaneous tasks such as excavation, loading, and transportation.
Customization: We can adjust the attachments or some functions according to your specific construction needs.
After-sales service: We guarantee the timely supply of accessories and provide professional technical support to ensure that the equipment can receive effective support when you need it.

Technical features

Product selling points and features

Power upgrade, working harder

The DM4CX is equipped with an upgraded high-power Yuchai engine, providing greater power reserves. It is more confident in handling heavy loads and continuous operation conditions.
Whether it’s the front loading or the rear digging, it has abundant power and can continuously output.

The core components are solid and the operation is hassle-free.

The vehicle is equipped with the renowned Caralro drive axle and Danfoss load-sensitive hydraulic system.
The transmission is reliable, the hydraulic actions are precise and gentle, not only with high efficiency but also a good operating feel.
It is not easy to get tired after working for a long time.

Three steering options, strong on-site adaptability

It offers three steering modes, making it particularly flexible for turning and moving around in narrow or complex construction sites.
It can help you save a lot of operation time and physical effort, directly improving the overall working efficiency.

Emphasis on safety and comfort in design

Standard equipped with a roll-over and object-impact-proof cab.
An optional integrated control handle for the rotating seat is also available, which not only ensures safety but also makes operation more convenient.
In addition, a body stability system can be selected, effectively reducing bumps during driving, making the ride smoother and more comfortable.

The digging arm can be hydraulically slid, making the operation convenient.

The digging working device at the rear end adopts a hydraulic sliding design, so it doesn’t need to frequently move the entire machine when adjusting the operation position.
It is especially suitable for leveling the ground and shaping the slope, and is more convenient and precise to operate.

Product parameters, after-sales service, company qualifications

Core performance parameters

DM4CX has an overall operating weight of approximately 10.8 tons.
It is compact in size, has a high ground clearance, and excellent off-road performance.
Front loader：has a capacity of 1.2 cubic meters and an uplift force of 47 kilonewtons
Rear bucket：has a capacity of 0.3 cubic meters and an excavation force of nearly 50 kilonewtons.
The maximum traction force is 86 kilonewtons， and the overall performance is balanced.

Detailed Explanation of Main System Configurations

Power Core:
Yuchai YCD4J22T-115 engine： With a rated power of 85 kilowatts and a displacement of 4.8 liters.
Output：a large torque of 400 Newton-meters at low speeds, being both fuel-efficient and powerful.
Transmission and Travel:
Hydraulic synchronous shift gearbox： with 4 forward and 4 reverse gears, with a maximum speed of 38 kilometers per hour.
Paired with a brand-name drive axle, providing strong load-bearing capacity.
Hydraulic and Operations:
Loading and digging hydraulic systems：
They have a working pressure of 20 megapascals, ensuring powerful movements and quick responses.
The maximum digging depth of the digging arm：
It exceeds 5 meters, and the rotation angle reaches 180 degrees, offering a wide range of operations.

The support and services we offer

METDEEM provides efficient component supply, ensuring adequate stock of common and wear-prone parts.
When you need technical consultation or encounter usage problems, our support team will respond promptly and provide practical solutions, striving to minimize the impact of equipment downtime on you.

About the Manufacturer

METDEEM is an engineering machinery manufacturer located in Yantai, Shandong Province.
We focus on research and development as well as production of practical equipment such as mining loaders and small excavators.
We adhere to the principle of starting from the actual working conditions of users, emphasizing the reliability and durability of our products.
Our products have been serving numerous construction sites both at home and abroad, and we are committed to becoming a reliable partner that you can trust.
