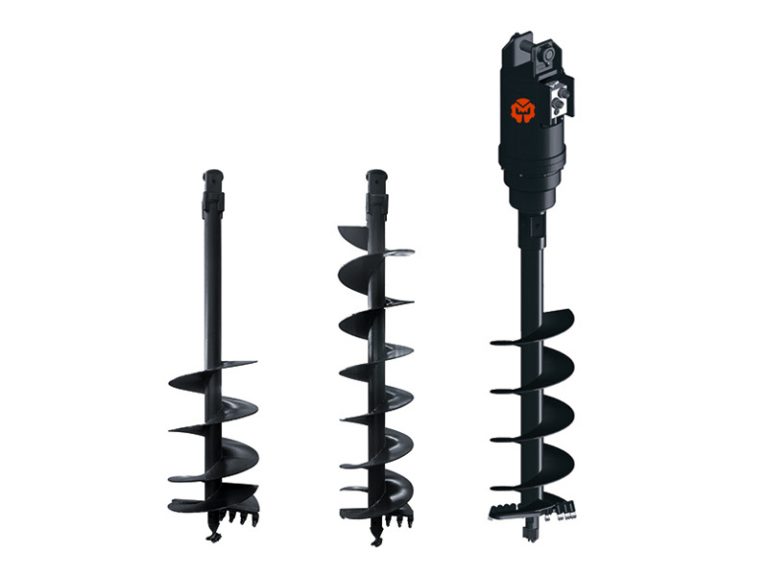

METDEEM Hydraulic DM04 Auger Drill for CAT PC for Excavator

Experts recommend：

Brand/Origin: METDEEM, a high-end engineering attachments brand, has its manufacturing base located in Yantai, Shandong Province, China.
Model/Compatibility: Full range of professional models, precisely compatible with excavators of various brands ranging from 0.8 to 50 tons. Customized drill bits and drill pipes are supported.
Standards/Qualifications: We strictly implement the ISO quality management system. Our products have passed the EU CE safety certification and meet international standards.
Payment/Supply: We accept various flexible payment methods such as telegraphic transfer and letter of credit. With a strong supply chain and inventory system, we ensure prompt delivery and stable supply.
Core advantages of the product: Equipped with imported hydraulic power, it has strong torque. Special alloy drilling tools are adopted, which have strong penetration and are extremely wear-resistant. The modular design meets the drilling requirements of all strata and is a professional tool for enhancing the efficiency of infrastructure construction, greening and engineering operations.

Chat Now

Chat Now

Main features of METDEEM Auger Drill–Core Advantages and Highlights of the Product

Strong imported power, conquering complex strata
The core adopts original imported hydraulic motors and reducers, providing stepless adjustable powerful torque. It can easily handle drilling challenges from soft soil, clay to frozen soil, weathered rock and even strata containing gravel. The power is powerful, stable and reliable.
Special alloy drill tools, extremely wear-resistant and durable
The key drill teeth and drill pipes are made of special alloy steel and undergo a special heat treatment process, featuring extraordinary hardness and wear resistance. They perform exceptionally well when breaking rock strata and pebbles, significantly extending the service life of core working components.
Modular intelligent design, one machine for multiple working conditions
Offers various options such as ordinary helical drill bits and hard alloy rock drill bits, and is equipped with single or multiple sections of high-strength telescopic drill rods. It can be quickly replaced according to different geological conditions and operation requirements such as utility poles, tree planting, and pile foundations, achieving precise matching and efficient operation.
High-strength manganese steel main body, solid and stable guarantee
The main frame of the equipment and key connecting components are all made of high-strength manganese steel plates. The structural design is scientific, with excellent overall rigidity and torsional resistance, ensuring that it will not deform or be damaged during long-term operation under harsh working conditions, and is safe and durable.
Precise and flexible operation, excellent hole quality
The torque and rotational speed are controlled through the excavator’s hydraulic systemprecisely . The lifting of the drill pipe is directly driven by the small arm cylinder, which can precisely adjust the drilling depth and maintain good verticality, ensuring that each hole meets engineering standards.

METDEEM brand Auger Drill — Product Model Parameters and Selection Guide

Geological analysis first: The primary task is to clarify the composition of the main strata in the construction area, whether they are silt, clay, sand, or mixed gravel layers. This is the basis for choosing a standard helical head or a heavy rock drill bit and determining the required torque grade.
Precise matching of the main unit: Select the corresponding model based on the excavator brand you own and the precise tonnage (from 0.8 tons to 50 tons). Please be sure to provide the specific model code of your excavator. Our engineers will verify its hydraulic output (pressure and flow) to ensure a perfect power connection and bring out the best performance of the equipment.
Clarify the requirements for hole diameter and depth: Determine the diameter and maximum depth of the borehole needed for your regular operations. We offer a wide range of drill bit diameter options and telescopic drill pipes of different lengths to meet various specification requirements from small tree pits to large foundation pile holes.
Special working conditions enhanced selection: If frequent operations are carried out in permafrost layers, high-hardness rock layers or dense pebble layers, it is strongly recommended to choose models equipped with reinforced drill pipes and top-grade hard alloy drill teeth to ensure construction efficiency and equipment durability.

Please check the following specifications to choose the right Excavator Auger model.

Hydraulic Earth Drill Auger For Excavators
Parameter	Model No.	DMmini	DM02	DM04	DM06	DM06S	DM08	DM08S
	Excavator Weight (ton)	2.5-4.5	4.5-6	5-8	13-17	15-17	15-20	17-30
	Measurement (mm)	φ200X585	φ270X850	φ270X850	φ300X945	φ300X945	φ345X1155	φ345X1155
	Weight(kg)	60	100	152	170	175	265	272
	Working Pressure(bar)	205	205	205	205	205	205	205
	Max Pressure(bar)	310	310	310	310	310	310	310
	Max Torque(nm)	3760	7300	8240	12300	15200	19800	24920
	Rated Oil Flow(lpm)	150	150	150	150	150	150	150
	Max Oil Flow(lpm)	210	225	225	170	210	210	225
	Diameter of Oil Pipe	G1/2”	G1/2”	G1/2”	G3/4”	G3/4”	G3/4”	G1”
Digging Function	φ150-250 mm	3m	10m	10m	10m	10m	10m	10m
	φ300-400 mm		8m	10m	10m	10m	10m	10m
	φ450-550 mm		6m	8m	10m	10m	10m	10m
	φ600-700 mm			6m	10m	10m	10m	10m
	φ750-850 mm				10m	10m	10m	10m
	φ900-1000 mm					10m	10m	10m

♣The company has been developed to meet the high standards of the current market.
♣These specifications are subject to change without prior notice for the improvement of quality.

♣The demand for high durability and low maintenance costs on hydraulic equipment are combined in the total design of our Excavator Auger Drill Attachment.

Comprehensive Strength of METDEEM Manufacturer

International trade service guarantee
We offer a complete export document package covering commercial invoices, packing lists, CE certifications, certificates of origin, etc., and support mainstream trade terms such as FOB and CIF.
With stable international logistics cooperation channels, we can arrange door-to-door sea freight services for customers and assist in handling customs clearance matters to ensure smooth and worry-free transactions.

A comprehensive after-sales warranty system
We offer a 12-month quality guarantee for imported hydraulic powertrains and spindles.
We have a complete spare parts warehouse and supply vulnerable parts such as drill teeth, drill pipes and seals on a long-term basis.
Youdaoplaceholder4 provides online remote technical guidance and can offer on-site service support plans based on customer requirements.

Flexible OEM&ODM cooperation model
The source factory supports OEM production. At the same time, we open up in-depth ODM cooperation and can carry out customized R&D and production according to your special market requirements, including non-standard sizes, special interfaces and functional optimization.

Outstanding global device compatibility
The product adopts a globally universal quick-change interface design and can be perfectly compatible with international mainstream brand excavators such as Caterpillar, Komatsu, Volvo, Sany and XCMG upon leaving the factory.
Youdaoplaceholder0 We have a comprehensive adaptation database covering all tonnages (0.8-50 tons), and can provide precise connection kits and hydraulic pipeline configuration solutions based on the excavator serial number you provide.

Strong R&D and manufacturing qualifications
METDEEM is a high-tech enterprise and holds a number of utility model patents.
METDEEM factory has equipped with fully automatic CNC cutting, welding and processing centers and has passed the ISO9001 quality management system certification.
METDEEM products are strictly designed and produced in accordance with the EU CE safety directives, and we possess the full-chain capabilities from R&D, testing to large-scale manufacturing.
