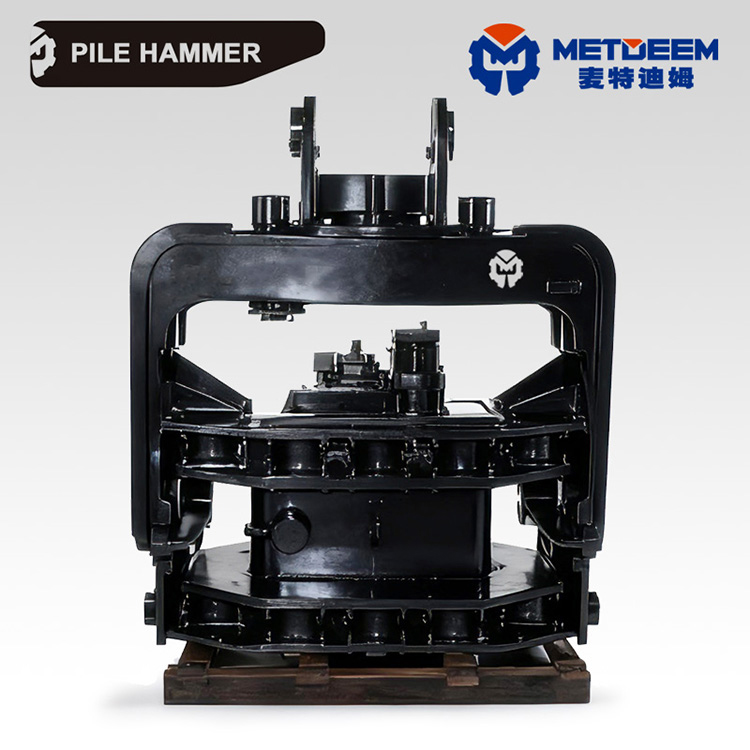

Metdeem hydraulic Pile Hammer for PC CAT excavator loader4

Metdeem hydraulic Pile Hammer for PC CAT excavator loader for Riverbank Piles Power Pole Piles

Experts recommend：

Metdeem Pile Hammers is a specialized piece of equipment designed for driving piles into the ground, commonly used in construction, foundation work, and marine engineering projects.

Brand/Origin: METDEEM brand, manufactured in Yantai, Shandong, China.

Model/Compatibility: All series of models, compatible with excavators of various brands ranging from 0.8 to 50 tons.

Standards/Qualifications: The production process is strictly controlled, and the products have obtained CE certification.

Payment/Supply: We support payment methods such as telegraphic transfer and letter of credit. Our supply is stable and we can accept bulk orders.

Product advantages: It adopts an imported hydraulic vibration system, featuring high efficiency in pile driving and extraction, and a sturdy and durable structure. It is a reliable choice for pile foundation construction in fields such as photovoltaic power station construction and municipal engineering.

Chat Now

Chat Now

Main features of Metdeem Pile Hammer

Vibration force is high-frequency and makes construction easier: By using powerful vibration to quickly liquefy the soil around the pile, it significantly reduces frictional resistance, greatly enhancing the efficiency of pile driving and extraction operations.
One machine and different use: The same equipment can perform both pile driving and pile extraction functions, making it particularly suitable for engineering projects that require the recovery of temporary support piles or the replacement of pile foundations.
Core components are imported, ensuring long-lasting and reliable power: The key vibration motor and rotary motor are both selected from internationally renowned brands, guaranteeing stable power and low failure rate of the equipment during long-term high-load operation.

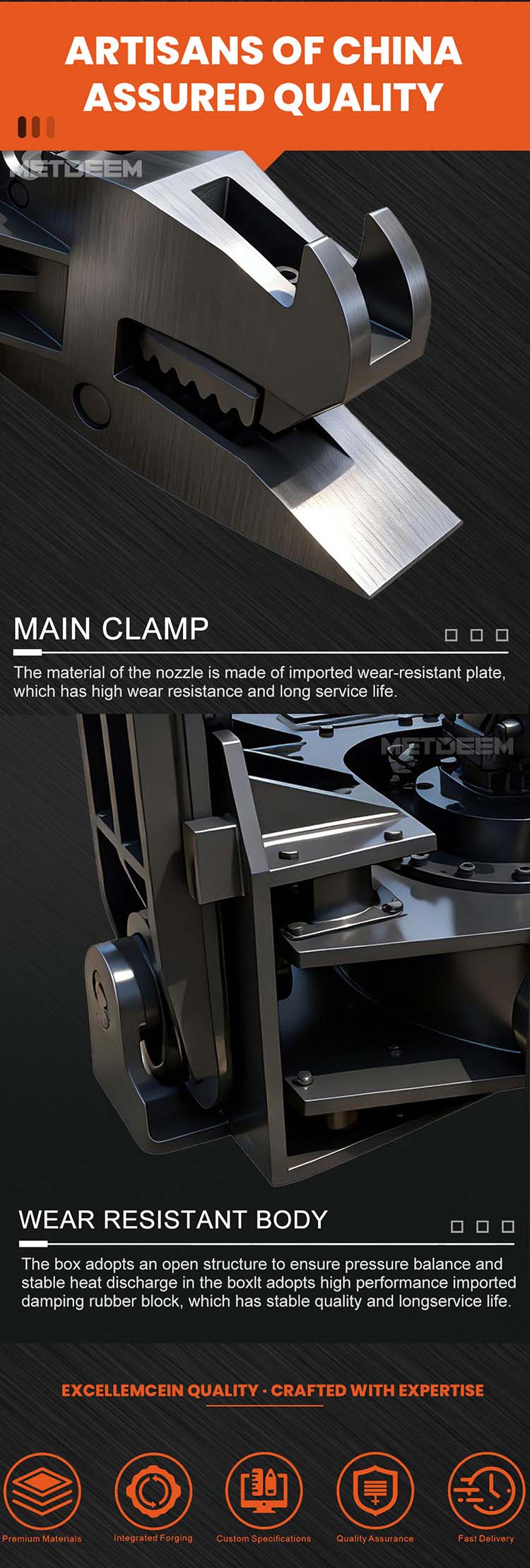

Solid materials, durable and sturdy: The main structure is made of high-strength manganese steel, and the internal pins are made of special alloy steel with built-in oil channels. The overall torsional resistance and wear resistance are excellent, and the service life is long.
The shock absorption design is in place to protect the excavator: Equipped with high-performance rubber shock absorption blocks, it effectively absorbs and isolates the severe vibrations generated during operation, preventing damage to the excavator body.

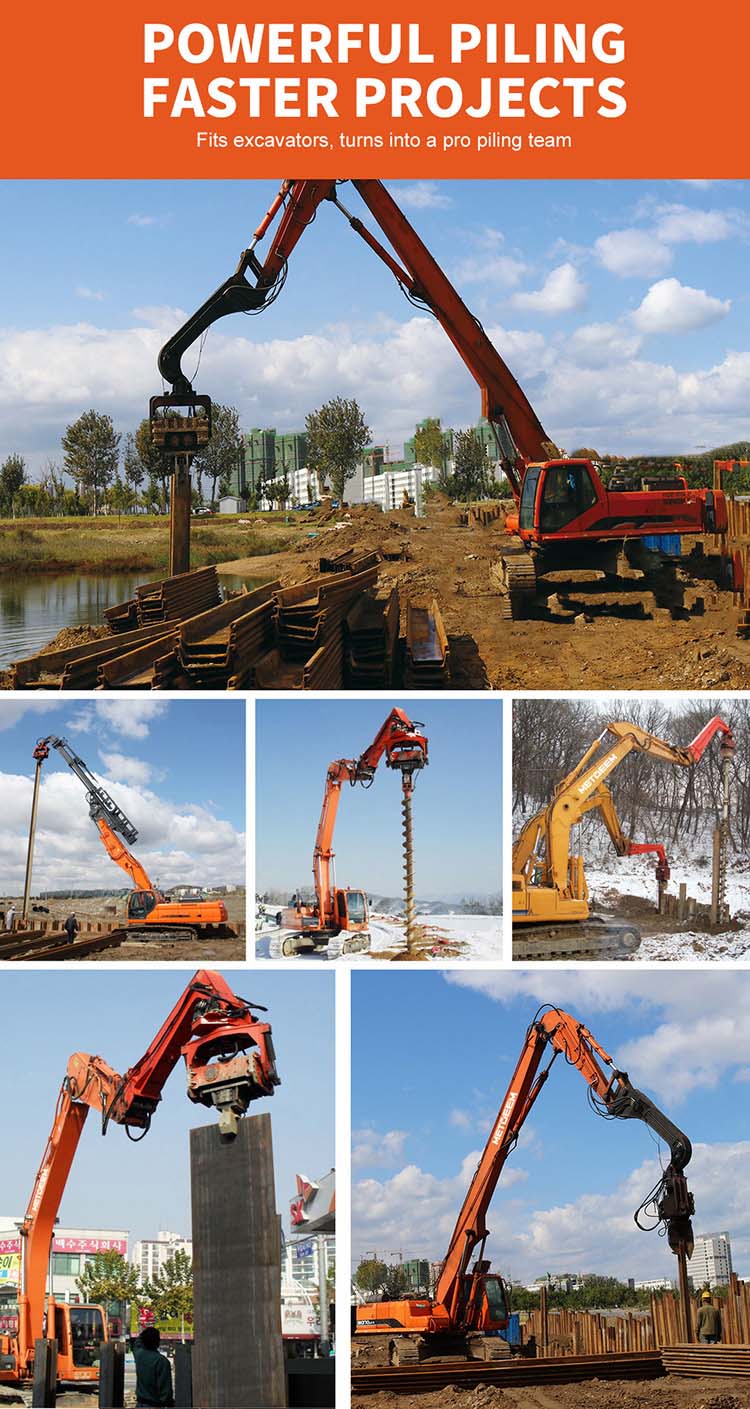

Metdeem Pile Hammers are suitable for Various types of pipe, steel plate and other piling operations.

Model Parameters and Selection Guide:

First look at the construction object and the geological conditions: Clearly identify which type of pile you mainly drive ,the on-site soil conditions, as these determine the magnitude of the vibration force required by the equipment.
Then consider the size of your excavator: Select a matching model based on the weight of your excavator. Generally, small excavators (1-8 tons) are suitable for being paired with light pile drivers to handle photovoltaic piles. For large excavators over 10 tons , models with greater excitation force can be selected to handle engineering piles.
Verify the hydraulic system of the excavator: Please provide the hydraulic working pressure and flow data of your excavator. We will confirm whether the hydraulic requirements of the pile driver match to ensure that the equipment performs at its best.
Confirm whether the rotation function is needed: If the direction or Angle of the pile needs to be precisely adjusted during construction, please choose the model with an imported rotation motor, which is more flexible and convenient to operate.

Item/Model	Unit	DM250	DM350	DM450
Eccentric Moment	Nm	45	70	85
Frequency	Rpm	2800	2800	2800
Centrifugal Force	Kn	360	650	790
Amplitude	Mm	6.8	14	16
Working Pressure	Bar	280	300	300
Oil Flow	L/min	220	300	300
Max Turning	Degree	270	270	270
Main Body	Kg	2080	3000	3200
Extension Boom	Kg	740	740	740
Total weight	Kg	2820	3740	3940
Applicable Excavatpr	Ton	20-30	30-40	40-60

♥ The Specifications of this equipment are subject to change for improvements.

International trade services

We provide a complete set of export documents (invoice, packing list, CE certificate, etc.) to ensure the smooth customs clearance of the goods.
We support regular trade terms such as FOB and CIF, and can cooperate with customers to arrange international sea freight.
A clear English installation guide and operation and maintenance manual will be provided with the goods.

After-sales warranty:

A 12-month warranty is provided for core hydraulic components such as vibration motors and rotary motors.
We provide long-term supply of all vulnerable parts such as shock absorbers, chucks and seals.
Provide professional remote technical consultation and assist in solving problems during the use of the equipment.

OEM&ODM

1.We support OEM private label production and can print brand logos as per your requirements.

We accept ODM cooperation and can customize product functions according to your specific construction requirements.
The product can be adaptively adjusted according to different market standards.

Compatible brand excavators

1.METDEEM products suitable for mainstream brands such as Caterpillar, Komatsu, Volvo, Sany, and XCMG.

2.The product models cover excavators ranging from 0.8 tons to 50 tons, with a wide range of adaptability.

3.We can recommend or customize the most suitable connection solution based on the specific excavator model you provide.

Factory qualification

1. The METDEEM factory is located in Yantai, Shandong Province, and it has a modern production base.

It is produced by precision equipment such as CNC machine tools and developed by a professional team of engineers.
The factory has passed the strict quality management system certification, and the products comply with the CE safety standards.
We have rich experience in the manufacturing and export of construction machinery attachments.
