Metdeem Hydraulic Multi-angle flexibility DM02 Tilting quick hitch for CAT PC Excavator for Attachment replacement

Metdeem Hydraulic Multi-angle flexibility DM02 Tilting quick hitch for CAT PC Excavator for Attachment replacement

Experts recommend：

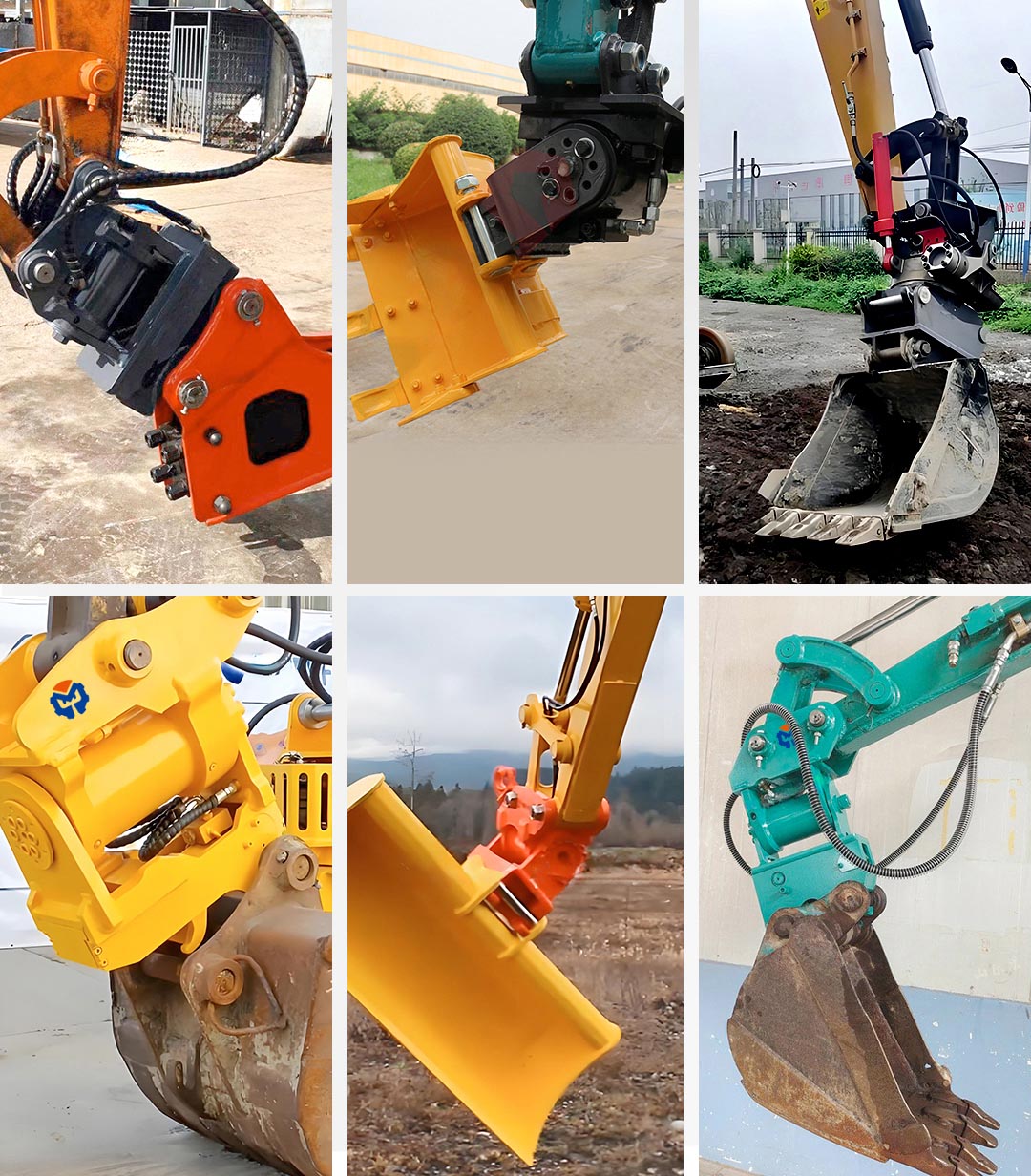

METDEEM Tilting quick hitch is a fully automatic double safety quick coupler. In addition to helping the excavator operator to realize the automatic and fast switching of various attachments such as buckets and breakers in the cab, it can also be 90° left and right, and one direction the maximum 180° tilting bucket can realize excavation in unconventional positions such as under the pipe and at the root of the wall, expand the working range of the machine, save time and improve work efficiency.

Product Introduction:

Brand: METDEEM
Origin: Yantai, Shandong Province, China
Model: Full series (Supports OEM/ODM customization)
Size/Standard: Customized according to the tonnage of the excavator, in compliance with CE safety standards
Payment methods: Telegraphic transfer (T/T), letter of credit (L/C)
Supply capacity: Regular tonnage models are in stock, and custom orders can be delivered promptly
Core advantages: Hydraulic left and right tilting function, fully automatic double safety lock, high-strength alloy steel body, widely compatible with attachments of various brands.

Chat Now

Chat Now

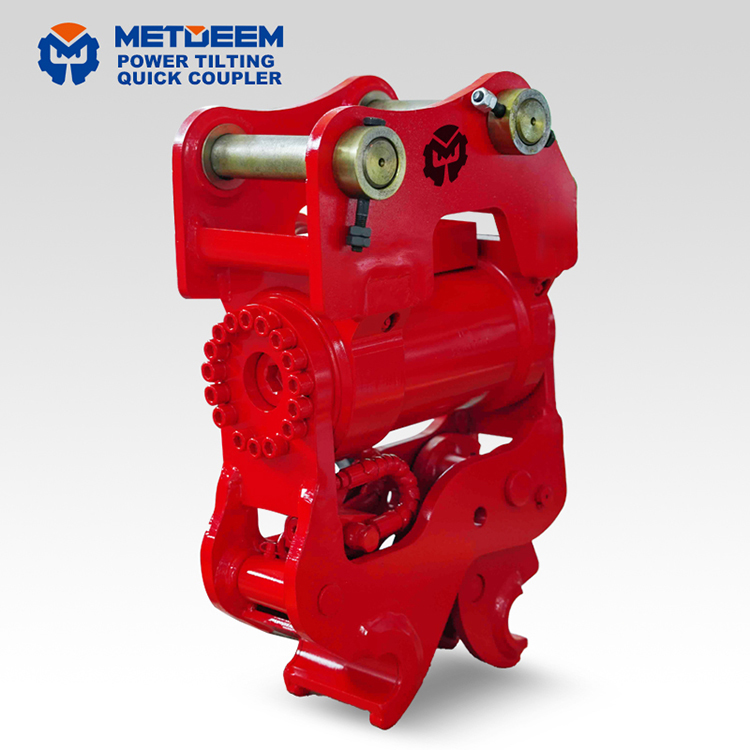

Main features of METDEEM Tilting quick hitch

Tilt cylinder with higher torque, safety design.

Full-automatic Double locking.
Extra high strength steelis used throughout body.
Variable pin centre design.
With a tilt angle of 0-180° for DM00-DM04, 0-140° for DM06-DM08.

Original Japan switch.All spare parts ready for installation ( pins, pipes, solenoid valve, switch, wire harness, manual, kit,bolts and nuts etc).

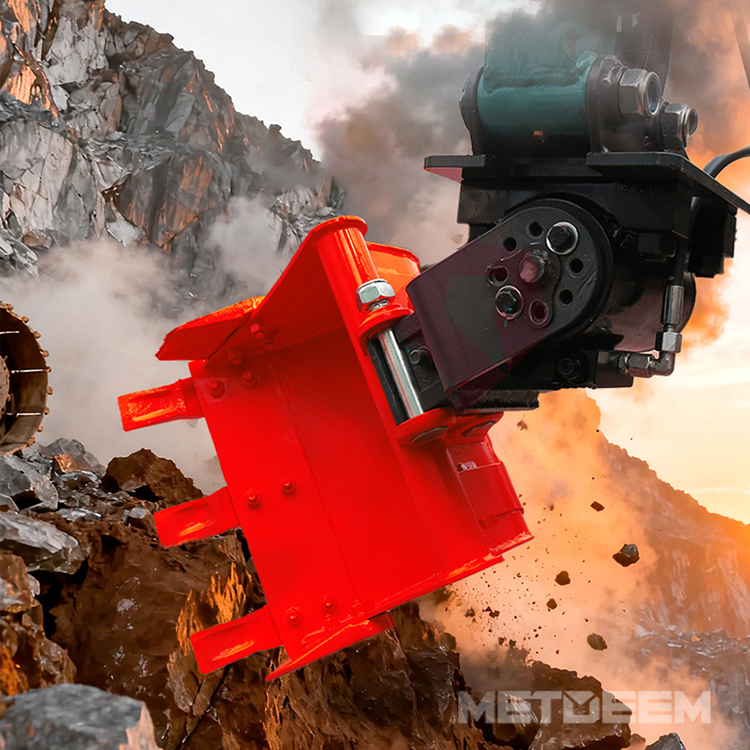

One-click tilt can control different attachments to achieve a 180-degree left and right tilt, perfectly handling complex working conditions such as slope trimming, ditch cleaning, and precise leveling, greatly expanding the functions and application scope of excavators.

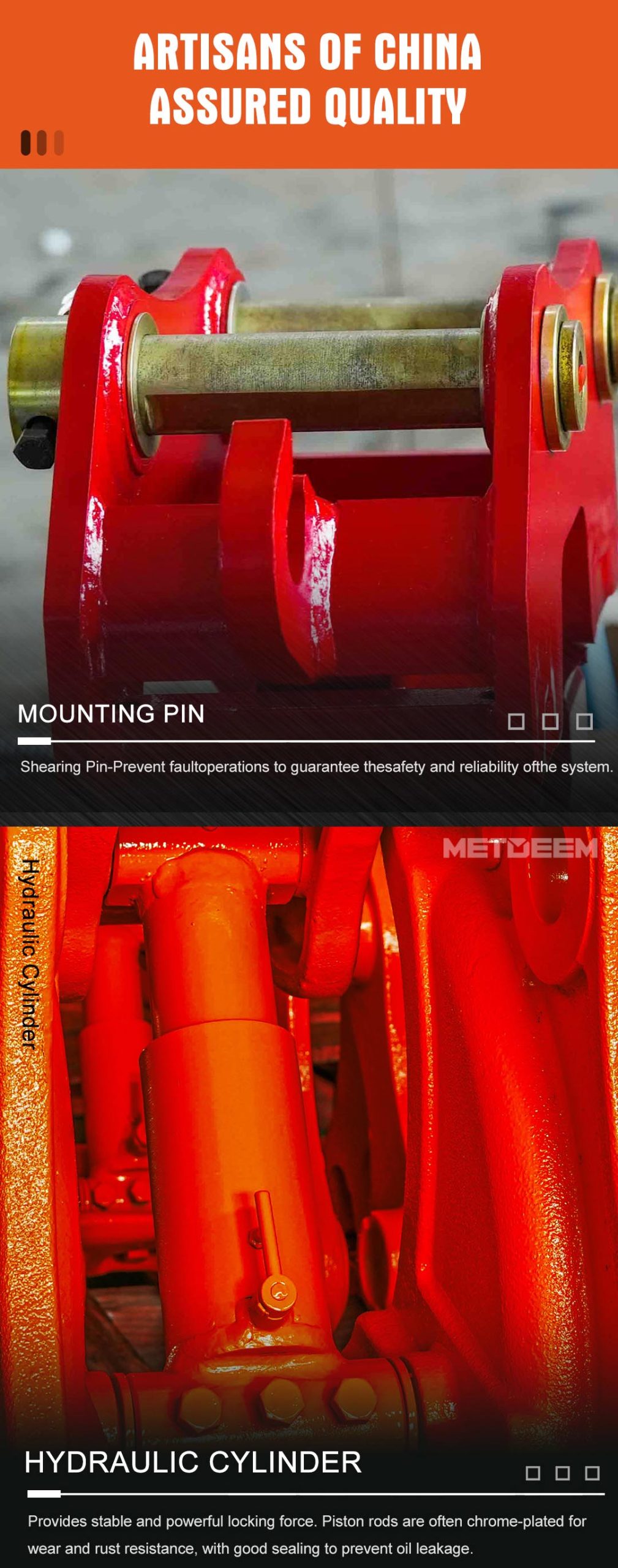

The product usesfully automatic double safety lock design. The hydraulically driven main lock pin ensures a firm locking. The hydraulic or mechanical safety devices serve as secondary insurance to prevent accidental loosening of attachments, providing dual safety guarantees for both the operator and the equipment.
The main structure is made of high-strength alloy steel, which is durable and highly adaptable. The variable pin hole center design allows for fine-tuning of the connection position, enabling it to adapt to attachments of different brands and models, and offering stronger compatibility.
One-click fitting: By pressing the hydraulic button in the excavator’s cab, the attachments can be replaced or locked within tens of seconds, eliminating the hassle and danger of manually tapping the pin shafts, saving working hours and improving equipment utilization.

METDEEM brand excavator tilt hitch makes your excavator attachments have instant tilt capability, which can be completely tilted 90 degrees in two directions, suitable for excavators from 0.8 tons to 25 tons.

Model Parameters and Selection Guide

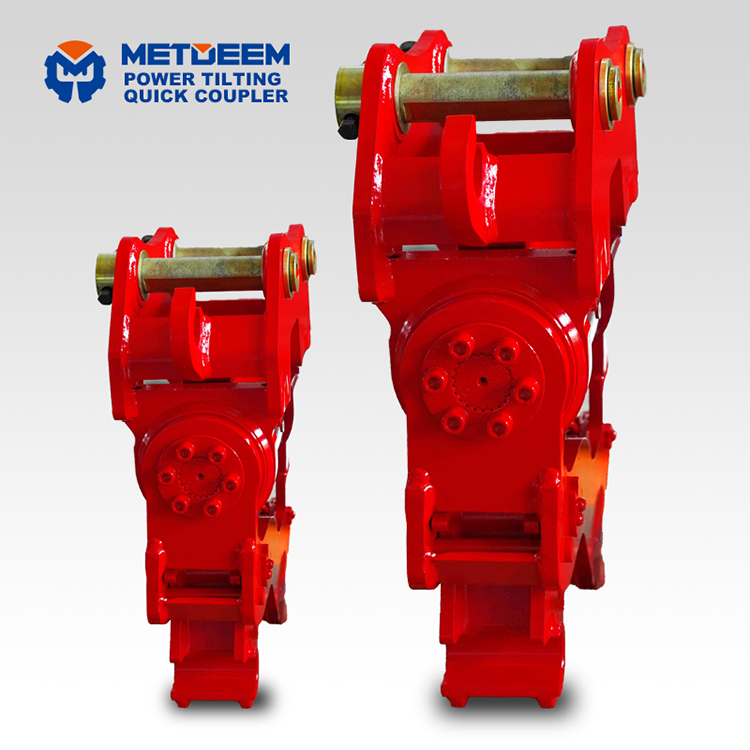

Youdaoplaceholder7 Model overview: We offer a series of tilting quick connectors ranging from 4 tons to 20 tons. Specific parameters such as load-bearing capacity, tilting Angle, and cylinder thrust are customized according to the tonnage and requirements of the excavator.
Selection suggestions:

Micro excavators for light-duty operations, such as landscaping and small trenches, are suitable for models of 4-6 ton mini/small excavators, emphasizing flexibility and precise tilt control.
For general municipal and earthwork projects such as pipeline laying and foundation construction, the model is suitable for medium-sized excavators with a capacity of 10-20 tons, achieving the highest balance in performance, product performance and cost performance.

Tilting Quick Hitch Coupler
Category/Model	DM-00	DM-01	DM-02A/B	DM-02B	DM-04A	DM-04B	DM-06	DM-08A/B
Tilt Degree	180°	180°	180°	180°	180°	180°	140°	140°
Drive Torque	930 NM	2870 NM	4400 NM	4400 NM	4400 NM	7490 NM	10623 NM	18600 NM
Tilt Displacement	0.627 L/MN	0.627 L/MN	1.016 L/MN	1.016 L/MN	1.016 L/MN	1.896 L/MN	2.3 L/MN	3.62 L/MN
Tilt Working Pressure	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar	210 bar
Tilt Necessary Flow	2-4 Lpm	5-16 Lpm	5-16 Lpm	5-16 Lpm	5-16 Lpm	15-44 Lpm	19-58 Lpm	35-105 Lpm
Quick Coupler Working Pressure	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar	25-300 bar
Necessary Flow	15-25 Lpm	15-25 Lpm	15-25 Lpm	15-25 Lpm	15-25 Lpm	15-25 Lpm	15-25 Lpm	15-25 Lpm
Excavator	0.8-1.5 Ton	2-3.5 Ton	4-6 Ton	4-6 Ton	7-9 Ton	7-9 Ton	10-16 Ton	16-22Ton
Overall Dimension (L2W1H1mm)	370280442	477280567	518310585	545310585	541350608	582350649	720450784	858500911
Weight	55 Kg	112 Kg	156 Kg	156 Kg	170 Kg	208 Kg	413 Kg	570/655 Kg

Our Services

METDEEM can offer a comprehensive range of quick hitch, tilt hitch, excavator tilt hitch, hydraulic quick coupler, power tilt hitch, etc…
We offer comprehensive and OEM and ODM customization services. Customized design and production can be carried out according to your size requirements, specific working conditions or safety standards.
METDEEM is located in Yantai, Shandong, China, and has many years of rich experience in the production of excavator attachments.
The company is equipped with an advanced CNC machine tool production line and a professional R&D team, focusing on the design and production of hydraulic quick connectors to ensure that every product meets strict performance standards.
MEEDEEM is a high-tech enterprise and its products have obtained CE certification. The factory operates in accordance with international quality systems and holds relevant utility model patents, providing high-quality products and innovative technical services.

Warranty

METDEEM products come with a 12-month warranty and have a global spare parts supply channel, ensuring a prompt response to customers’ after-sales and technical support needs and guaranteeing the continuous operation of the equipment.
The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.
You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.
METDEEM tilt hitchs are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
