Metdeem Heavy-duty Hydraulic DM10 Shear for CAT PC Excavator

Metdeem Heavy-duty Hydraulic DM10 Shear for CAT PC Excavator

Experts recommend：

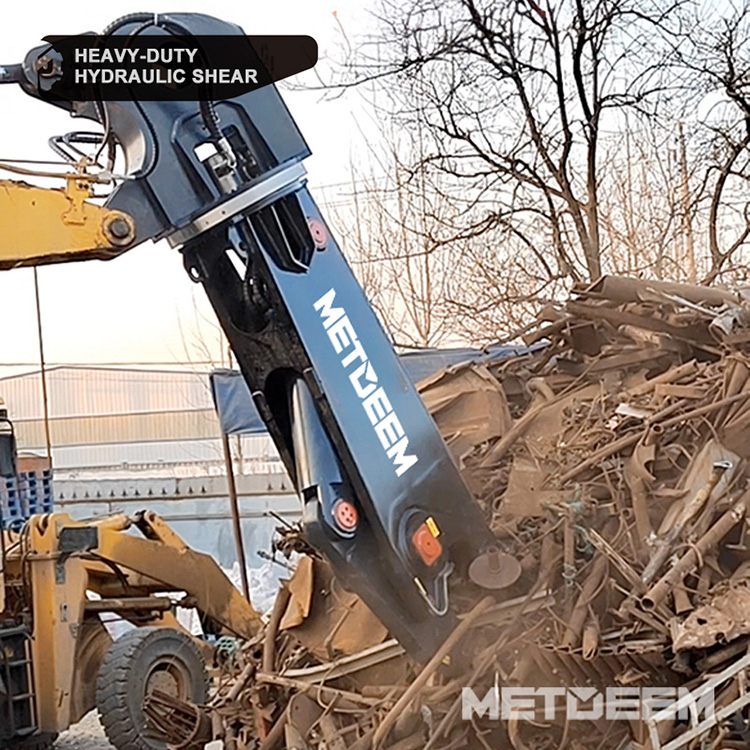

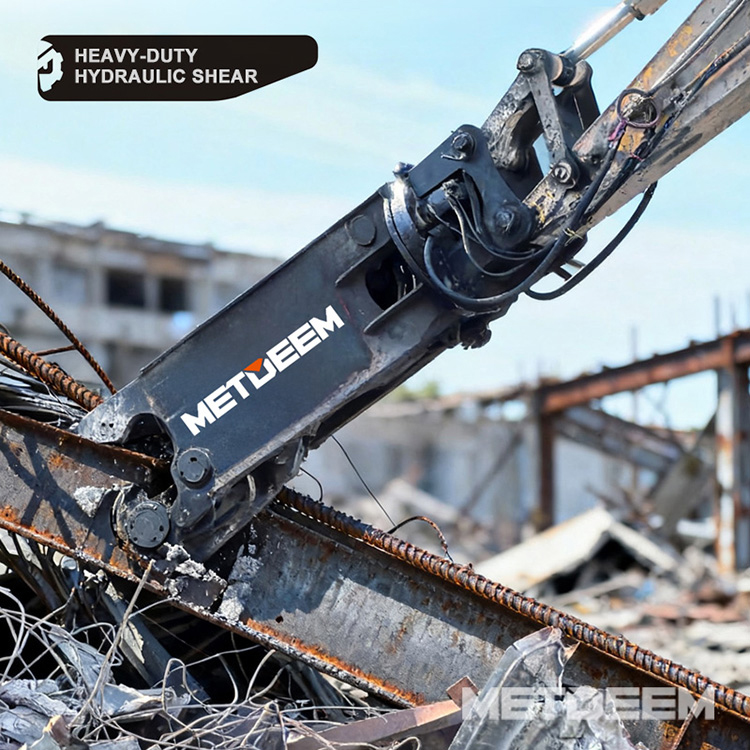

METDEEM Heavy-duty Hydraulic Shears are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition. It is ideal for breaking out concrete from fixed structure，pulverizing concrete，separating different materials for recycling，and cutting reinforced rods and small steel profile.

Brand: METDEEM
Origin: Yantai, Shandong Province, China
Model: Full series (Customization supported)
Size/Standard: Designed according to the tonnage of the excavator, in compliance with CE standards
Payment methods: T/T, L/C
Supply capacity: Regular models are available in stock, and customized production cycles are highly efficient
Core advantages: The wear-resistant alloy knife block remains sharp for a long time, the imported hydraulic components are stable and reliable, and it operates efficiently with 360-degree full rotation. It is widely compatible with excavators of various brands.

Chat Now

Chat Now

Main features of Metdeem Heavy-duty Hydraulic Shear

Core Advantages and Highlights of the Product

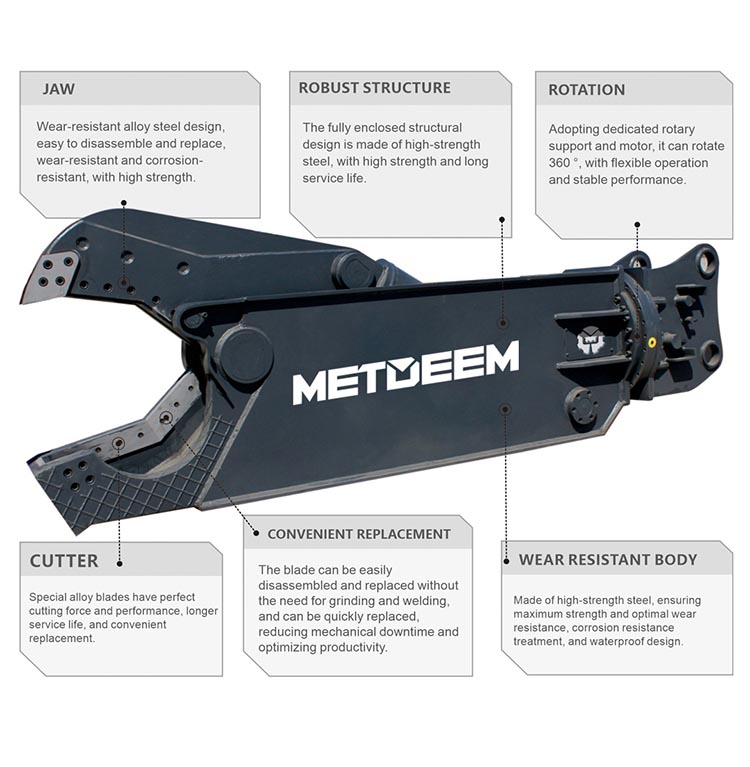

The wear-resistant alloy steel used for the core shearing blade block, after undergoing a special heat treatment process, combines extremely high hardness with impact toughness. Ensure that it remains sharp for a long time when shearing steel bars and steel plates, resist high temperatures and deformation, and significantly reduce the frequency of replacement and usage cost.
Imported hydraulic motor provides smooth and powerful 360-degree unlimited rotation power, with precise and flexible control. The hydraulic cylinder is equipped with precision honed tubes and imported high-quality oil seals, featuring low internal resistance and excellent sealing performance. This significantly extends the cylinder’s service life and eliminates oil leakage.
The main body is made of wear-resistant steel plateswith high-strength , achieving a lightweight design while ensuring structural strength, reducing the load on the excavator, and enhancing operational efficiency and mobility. The key connecting pin shaft is made of special alloy steel, which is of high strength and good toughness, and can withstand huge shearing capacity.
The product can be matched with excavators of different brands and can quickly adapt to excavators of unknown tonnage, such as Caterpillar, Komatsu, Volvo, Sany, XCMG, etc., with a high return on investment.

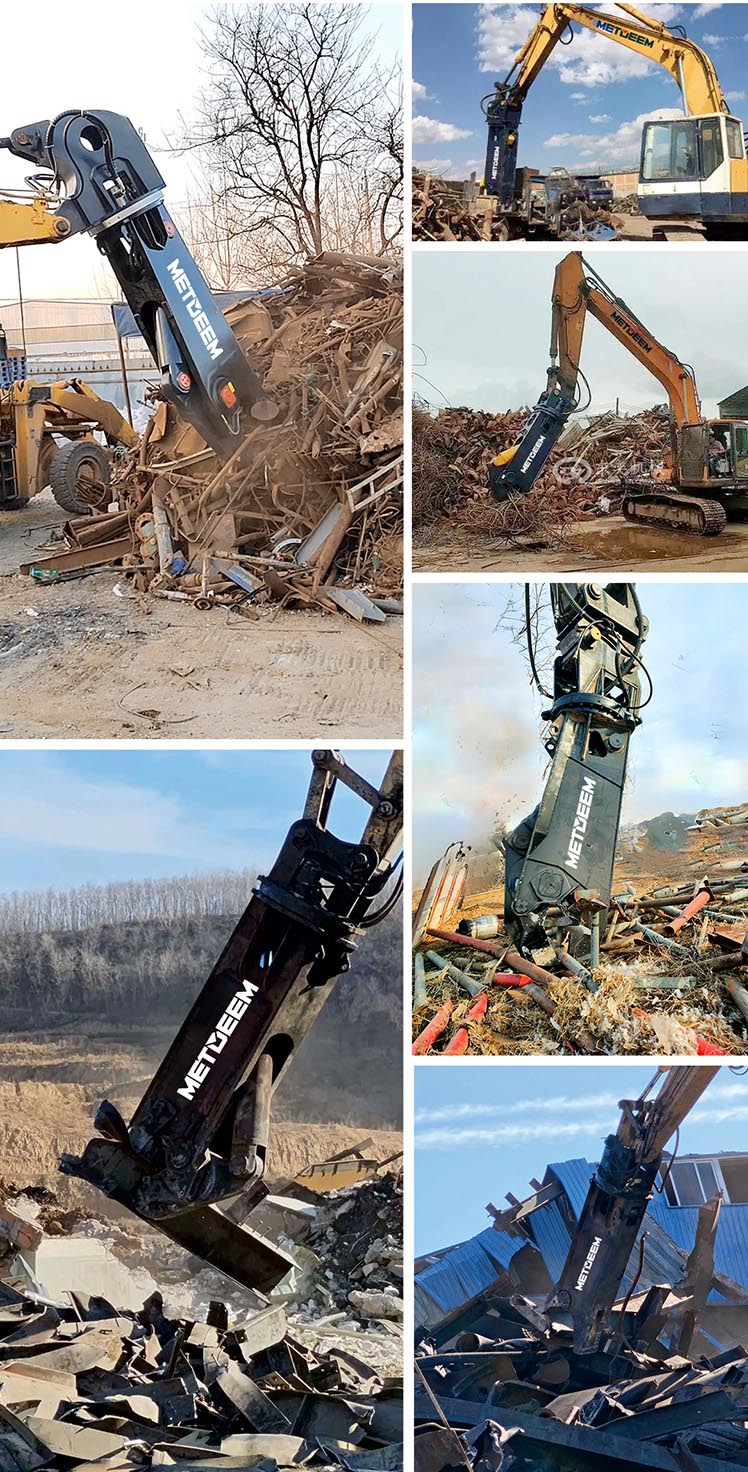

Metdeem Heavy-duty Hydraulic Shears are used for cutting operations of H,I steel,automotive beams,factory support beams,etc.
Model Parameters and Selection Guide：

Complete range of models to match excavators of different tonnages. The specific opening size, shear force, working pressure and other parameters need to be customized according to the excavator model and the working materials.
Selection suggestions:

For scrapped cars and light structural componentsdisassembly and recycling, it is recommended to use the eagle-beak shears suitable for 10-20 ton small excavators, emphasizing flexibility and precise cutting.
For truck frames, medium-sized steel materials, pipes，the general scrap steel processing, it is recommended to choose the model that is compatible with medium-sized excavators ranging from 20 to 35 tons. It strikes a balance between shear force and mobility, making it the most versatile option.
For heavy industrial disassembly, such as large storage tanks, I-beams, building structures, etc., heavy-duty hydraulic shears that are compatible with large excavators of 35-50 tons or more must be selected, equipped with reinforced blade blocks and oil cylinders to ensure sufficient shearing force, biting force and durability.

Item/Model	Unit	DM260	DM360	DM460	DM560
Weight	kg	2250	3000	3800	6000
Opening	mm	460	600	780	1000
Cutting Deepth	mm	530	650	750	850
Height	mm	3030	3400	4260	5200
Width A/B	mm	950/700	1200/700	1350/700	1700/1850
Driving Pressure	kg/cm²	280-320	280-320	280-320	320-350
Cyele Tine	sec	7-15S	9S	15S	15-20S
Cutting Force F1/F2/F3	ton	80/100/130	100/120/150	120/150/190	150/190/260
Suitable Excavator	ton	20-28	28-40	30-49	45-60

♥ The Specifications of this equipment are subject to change for improvements.

Comprehensive Strength of METDEEM Manufacturer

METDEEM Heavy-duty Hydraulic DM10 Shear is located in Yantai, Shandong Province, China. It is equipped with a modern CNC machine tool production line and a professional engineering and technical team, specializing in the research and development and manufacturing of hydraulic attachments. We conduct full-process control from materials science, heat treatment processes to structural design to ensure product performance.
We are a high-tech enterpriseand we have passed the strict CE certification and ISO quality management system certification. Our products meet international safety and performance standards. Meanwhile, through the unremitting efforts of our R&D team, we have obtained multiple utility model patents.
We offer mature OEM and ODM services. According to customer requirements or specific working conditions, we can provide in-depth customization in terms of appearance, structure and performance, and become your reliable production partner.
We can supply a comprehensive range of Metdeem Heavy-duty Hydraulic Shear, excavator shear, Hydraulic scrap shear, Hydraulic Crusher, hydraulic concrete pulverizer, hydraulic pulverizer excavator, hydraulic rotary pulverizer, rotating hydraulic pulverizer, concrete pulverizer attachments.

Global Trade and worry-free after-sales service

We have rich experience in international trade and provide professional export support.
The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.
The company offers a 12-month core component warranty for its products and has established a global spare parts warehouse to ensure rapid response and technical support, eliminating customers’ worries.
