METDEEM Heavy Duty Hydraulic DM20 pulverizer for PC CAT Excavator Construction Machine

METDEEM Heavy Duty Hydraulic DM20 pulverizer for PC CAT Excavator Construction Machine

Experts recommend：

METDEEM Hydraulic Pulverizer are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.
It is ideal for breaking out concrete from fixed structure，pulverizing concrete，separating different materials for recycling，and cutting reinforced rods and small steel profile.

Comprehensive Product Introduction

Brand/Origin: METDEEM brand, with its manufacturing base located in Yantai, Shandong Province, China.
Model/Compatibility:Full range of products, precisely covering excavators of various brands from 0.8 to 50 tons, with optional rotation function.
Standards/Qualifications:The production process strictly follows the quality management system, and the products have passed the CE safety certification.
Payment/Supply: Supports multiple international trade settlement methods, has a mature and stable supply chain, and is capable of rapid delivery and bulk order supply.
Core advantages of the product:Strong crushing force for hard concrete, reliable and durable core components; Optional acceleration and rotation functions adapt to complex working conditions; The modular design of vulnerable parts reduces usage costs and is a professional solution for efficient dismantling operations.

Chat Now

Chat Now

Core Advantages and Highlights of the Product

With a high-performance hydraulic system,METDEEM Pulverizer providing powerful impact energy and enabling efficient crushing of reinforced concrete structures. For large-scale demolition demands, models DM08 and above are equipped with hydraulic accelerators, significantly enhancing the closing speed and impact force of the jaw plates, and easily handling high-strength components such as columns and beams.
The key structure is made of high-strength manganese steel, combined with an inverted cylinder design, effectively preventing the piston rod from being scratched. The core pin shaft is made of special alloy steel and is equipped with an internal lubrication channel, ensuring the stability and durability of the equipment under long-term and high-impact operation in every detail.
It can be optionally equipped with an imported rotary motor to achieve 360-degree operation without blind spots. In complex or narrow construction site environments, the excavator can complete precise positioning and multi-angle operations without frequent movement, greatly enhancing operational flexibility and coverage.

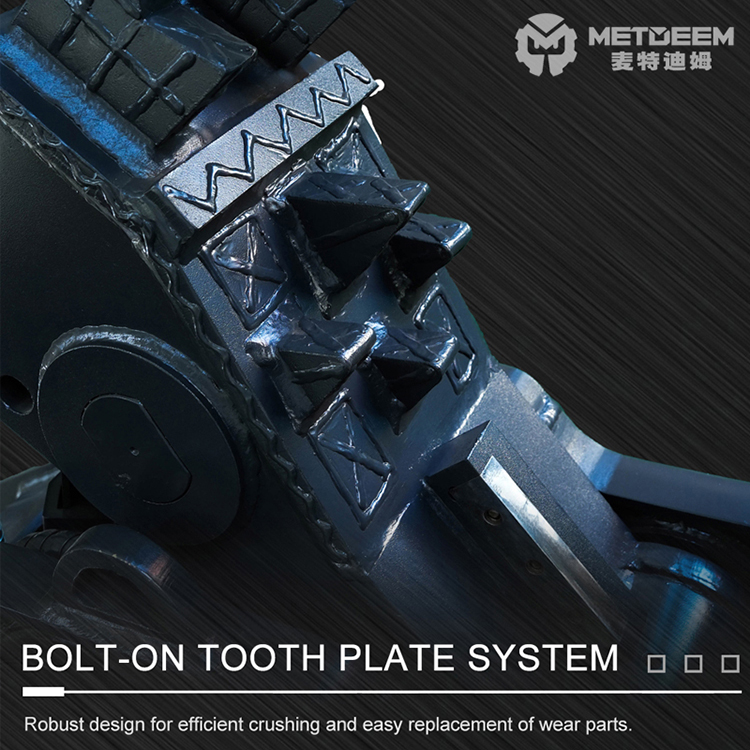

The knife block is made of special wear-resistant alloy steel and is designed as an independently replaceable module. The matching quick-replaceable bucket teeth make daily maintenance more convenient and significantly reduce the cost and time for replacing worn parts that have been used for a long time.
The product series are adapted to different tonnages of excavators. Different models correspond to different working pressures, opening sizes and theoretical crushing forces, ensuring that each piece of equipment can achieve the best performance match with the main machine and maximize working efficiency.

METDEEM Series Pulverizers are designed to reduce the size of debris, clear up a job site, and separate concrete from rebar at ground level after demolition.

Product Model Parameters and Selection Guide

Based on the working weightof the excavator, select the corresponding model range. Small excavators (such as 1-6 tons) correspond to light and efficient models, while medium and large excavators (over 8 tons) need to be matched with models with stronger structures and greater crushing force to ensure safety and efficiency.
If the daily task is mainly to break floor slabs and walls, the standard model is sufficient. If it is necessary to frequently handle heavy and high-difficulty working conditions such as bridge piers, foundations, and high-grade concrete, it is essential to consider the DM08 and above models equipped with hydraulic accelerators to achieve faster operation cycles and stronger instantaneous crushing force.
In indoor demolition, space-constrained or structurally complex construction sites, it is strongly recommended to select imported rotary motors. This function can greatly expand the working range of the equipment, achieve fine crushing and material grasping, and avoid frequent adjustments of the excavator’s posture.
Inform us of the specific brand and model of your excavator, as well as the type, strength and approximate dimensions of the main materials to be processed. Our engineers will make a comprehensive calculation and recommend the most suitable model, opening size and whether the wear-resistant parts configuration needs to be upgraded for you.

METDEEM Hydraulic Pulverizer for excavator
	Unit	DM02	DM04	DM06	DM08	DM08S	DM10
Max Open	mm	420	600	750	860	900	1100
Cutter Length	mm	75	95	112	180	180	360
Crushing Force	Kn	170	260	470	994	994	1350
Working Pressure	Mpa	24	24	31	32	32	32
Oil Flow	Lpm	80-120	100-140	120-180	180-250	180-250	200-300
Carrier	Ton	3-5t	6-9t	10-15t	18-25t	20-30t	30-40t
Weight	kg	270	480	880	1600	1980	2700

♥ The Specifications of this equipment are subject to change for improvements.

Comprehensive Strength of METDEEM:

International trade services

We have successfully sold our products to over a dozen countries around the world and accumulated rich experience in cross-border trade.
We can provide a complete set of export documents that meet the requirements of customs in various countries and support flexible trade terms.
The company has stable international logistics partners and can plan efficient sea routes for customers to ensure the punctual and safe delivery of goods.

After-sales warranty

We promise to provide solid after-sales support. We offer a 12-month warranty for imported rotary motors, main cylinders and core structural components.
The company has a long-term reserve of all vulnerable parts, including wear-resistant knife blocks, bucket teeth, special pins and complete sets of seals, to ensure a rapid response to the accessory demands of international customers.
If customers have maintenance or installation and usage needs, the company can provide online customer service consultation and technical guidance.

OEM&ODM cooperation

Relying on a professional R&D team and precise production lines, we can not only carry out standard OEM production, but also support ODM customized development.
We can jointly design and develop exclusive models based on your specific construction standards for working conditions, common material characteristics or special functional requirements, to achieve precise matching between products and the market.

Compatible with brand excavators

METDEEM products are compatible with excavators of multiple brands and are suitable for international mainstream brand excavators such as Caterpillar, Komatsu, Volvo, Sany, and XCMG.
We continuously update the hydraulic and installation data of various brand models, and can provide you with proven connection solutions and pipeline configurations for your specific equipment, ensuring immediate installation and use without any loss of performance.

Factory qualification

METDEEM Factory is the high-tech enterprise with multiple independently developed utility model patents, demonstrating its continuous innovation capabilities.
METDEEMfactory is equipped with modern CNC machining centers, automated welding and precision assembly lines to ensure the accuracy of product manufacturing.
The entire management system has been certified by ISO, and all products have also obtained the EU CE certification. The quality is reliable and meets the international mainstream market access standards.
