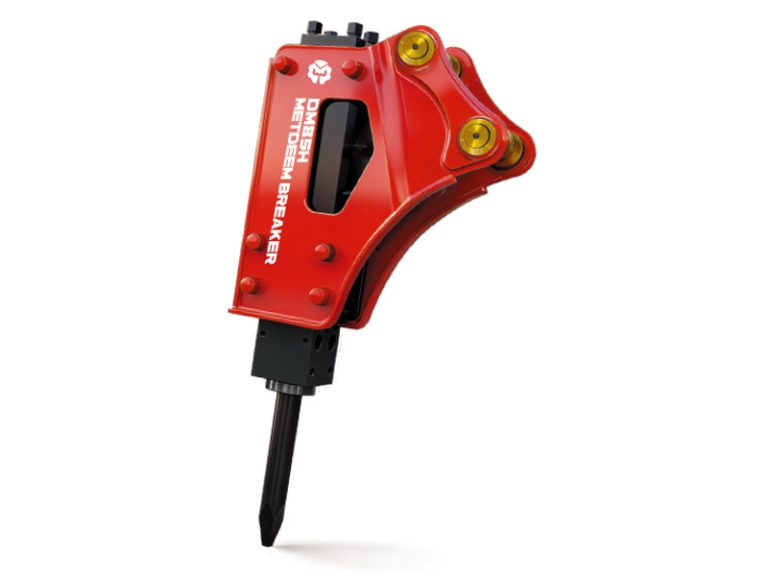

DM45 Hydraulic Breaker Side Type

DM45 Hydraulic Breaker Side Type

Experts recommend：Hydraulic breaker(pecker) hammers are used formining, demolition, construction, quarry.They can be mounted on all common hydraulic excavators as well as mini-excavator and other carriers like skid steer loader, backhoe loader, crane, telescopic handler, wheel loader, and other machinery.

Chat Now

Chat Now

1.Cylinder & valves: prevents scuffing with precision finishing treatment.

2.Piston: every piston tolerance machined perfectly according to each cylinder.

3.Chisel: 42CrMo, exceptional performance and reliability;

4.Seal kit: original NOK

5. High-quality and durable wear parts.

6. Advanced manufacturing facilities, introduced from South Korea.

7. High energy and impact frequency (high performance).

8.Low maintenance, less breakdown, long using life.

METDEEM brand Soosan Series Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Please check the following specifications to choose the right hydraulic breaker hammer model.

Hydraulic Breakers hammers for Excavators
Model No.	Excavator Weight	Body Weight	Working Flow Rate	Working Pressure	Nitrogen	Impact Rate	Hose Dia.	Chisel Dia.
Model No.	(ton)	(kg)	(L/min)	(Mpa)	KG/cm³	(bpm)	(inch)	(mm)
Light Type Hydraulic Breaker(pecker) for diggers
DM05	0.8	79	15-20	8-12	12	700-1200	1/2	35
DM10	1.5-1.7	89	15-20	12-15	12	700-1200	1/2	40
DM20	2-2.5	99	20-40	12-15	15	700-1200	1/2	45
DM30	3.5-4.5	132	25-50	12-15	15	500-1100	1/2	53
DM40	4.5-7	275	40-70	16-18	16	500-900	1/2	68
DM43	7-9	418	60-80	16-18	16	400-800	1/2	75
DM45	10-14	561	80-100	16-18	16-18	400-800	1/2	85
DM50	11-16	842	80-100	18-22	16-18	400-650	3/4	100
Medium Type Hydraulic Hammers
DM60	14-16	1400	80-100	20-24	16-18	400-650	1	125
DM70	16-18	1609	160-200	20-24	22-25	400-650	1	135
DM81	19-24	1950	160-200	20-24	22-25	400-800	1	140
DM81A	19-25	2000	160-200	20-24	22-25	400-800	1	140A
DM121	26-35	2655	180-240	24-26	24-26	250-400	1	155
Heavy Type Hydraulic Rock Hammers
DM131	35-40	3200	180-240	24-26	24-26	250-400	1.1/4	165
DM151	40-49	4000	220-280	26-28	26-28	250-350	1.1/4	175
DM190	50-60	5500	260-300	30-32	28-32	230-320	1.1/4	190
DM195	50-60	5700	260-300	30-32	28-32	230-320	1.1/4	195
DM200	55-65	6400	260-320	30-32	30-34	230-320	1.1/4	200
DM210	65-70	7000	280-320	32-35	30-34	230-320	1.1/4	210
DM230	75-100	9500	300-330	34-36	35-37	230-320	1.1/4	230

The listed Hydraulic breaker excavator productivity is based on 8-hour shifts. The above figures are for general estimation purposes only. The actual work results may depend on the quality and structure of the broken material, the material reduction size reduction, installation, carrier conditions, job site conditions, transportation, operator skills, etc.

Our Services

We can offer a comprehensive range of excavator attachments such as excavator hammer, mini-excavator hammer, rock breaker hammer, hydraulic hammer for backhoe, quick hitch, log grapples, plate compactor, earth drill auger, orange peel grab, demolition grapple, grab bucket, ripper, etc…
You may rest assured that all of our products can be supplied in a wide range of designs, and the product can be customized according to your personalized requirements. Meanwhile, we can offer an excellent after-sale service.
We will keep your business information confidential.
We promise to reply to you upon receipt of your inquiry within 12 hours.
The order will be produced exactly according to your detailed requirements and bucket dimensions. Each attachment will be tested before delivery. Our QC will submit the inspection report before shipment.
ODM，Offer your design documents or tell us your ideas and our R&D team will do the rest.

Warranty

METDEEM Excavator Hydraulic hammers are guaranteed against failure due to defective design, materials, or workmanship for a period of one year or 2,000 hours. Within the first 6 months, we offer a free replacement service.
