METDEEM Factory Customizable DM195 Hydraulic Breaker Side Type for CAT JCB Excavator

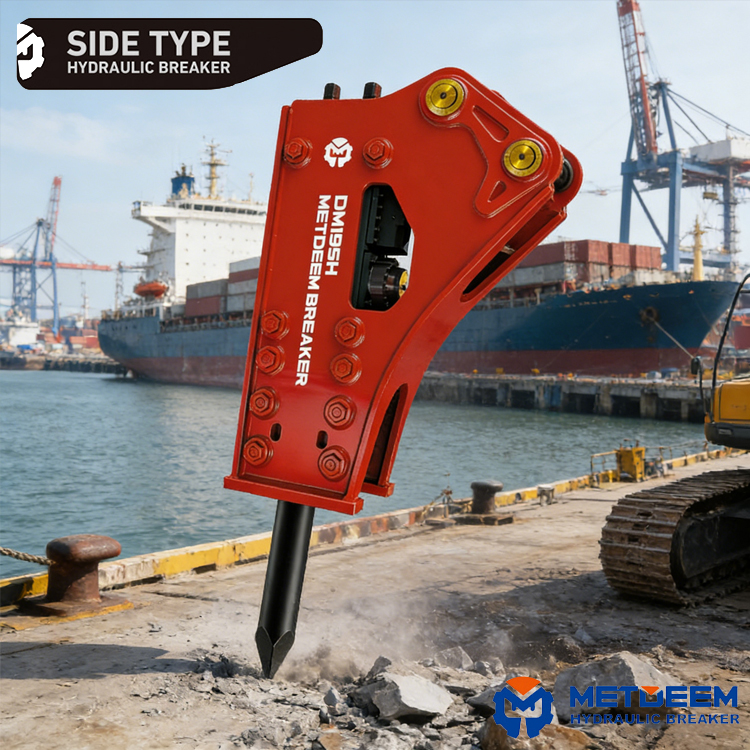

METDEEM Factory Customizable DM195 Hydraulic Breaker Side Type1

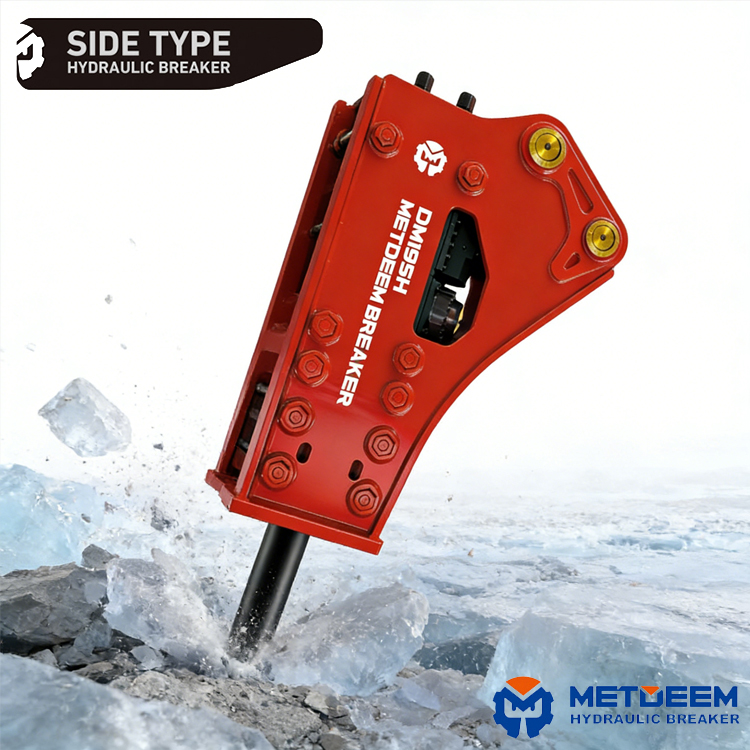

METDEEM Factory Customizable DM195 Hydraulic Breaker Side Type 2

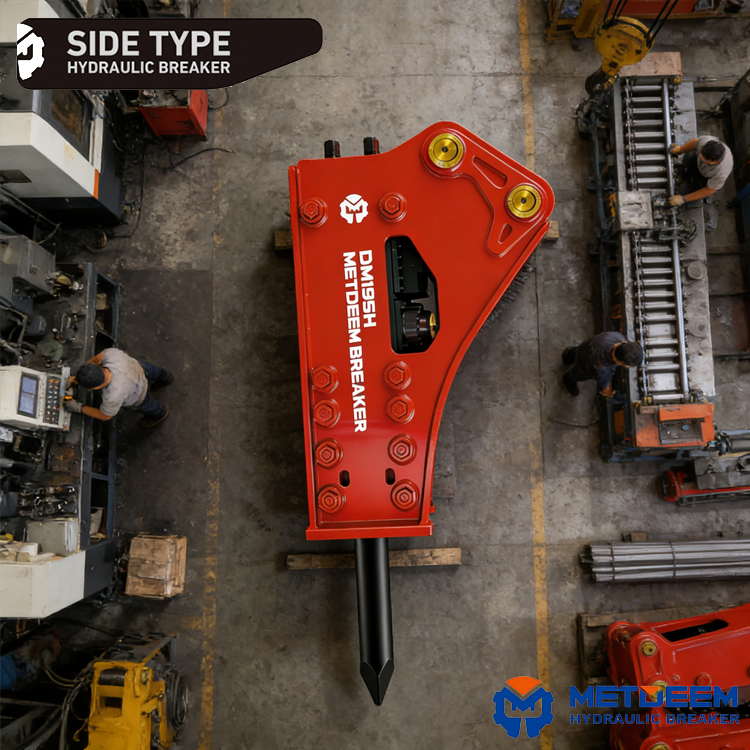

3METDEEM Factory Customizable DM195 Hydraulic Breaker Side Type

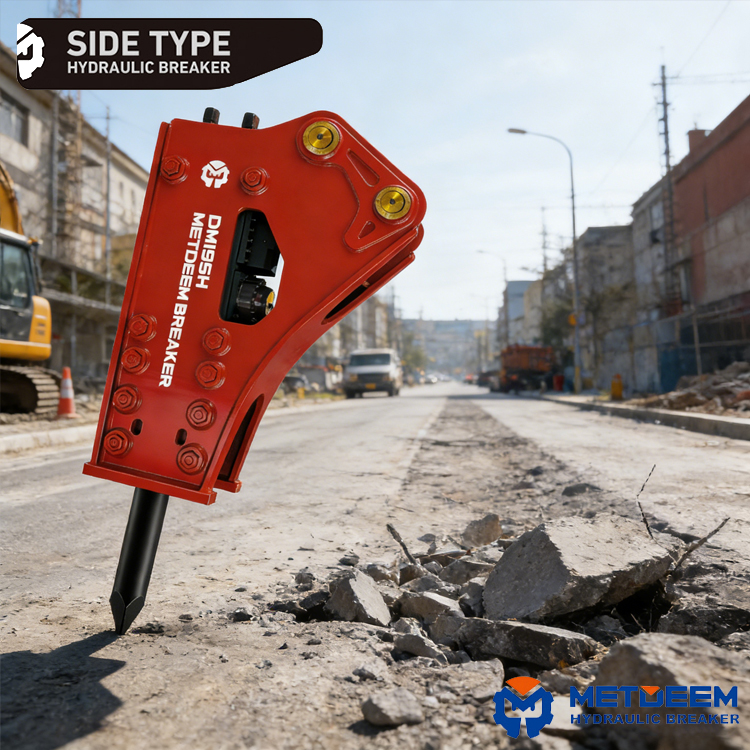

METDEEM Factory Customizable DM195 Hydraulic Breaker Side Type for CAT JCB Excavator

Experts recommend：

Brand— METDEEM.

Origin— Yantai, Shandong Province, China.

Model— Hydraulic Breaker Side Type DM195.

Size– Diameter of the chisel 195mm.

Standard– CE certification.

Payment method– Supports business negotiations for bulk purchases.

Supply capacity— The heavy-duty production line can meet the order requirements.

Core advantages— The Nemesis of extremely hard rock layers, with a peak impact force of 25,475 joules. Specifically designed for the mining of extremely hard minerals such as granite and quartzite, it helps break through the bottleneck of production efficiency.

Chat Now

Chat Now

Core advantages and Highlights of the Product

The enhanced Modelfor extremely hard rock strata
Based on DM190, the impact energy is further increased to 25,475 joules, specifically optimized for crushing extremely hard ore veins such as granite and quartzite.
The enhancement of the single strike force means that more hard rock can be processed within the same period of time, directly improving the mining efficiency.
Optimize the energy transmission path
The key components on the energy transmission chain, such as the impact piston and the bushing of the chisel, have undergone material and process upgrades, reducing energy loss during transmission and ensuring that more impact energy acts on the rock rather than being consumed inside the equipment.
Designed for continuous high-intensity operation
All reinforced designs revolve around one goal– to achieve longer trouble-free operation time under extremely high impact loads.
Its reliability has been verified through bench fatigue tests that are more rigorous than industry standards.

METDEEM brand Soosan Series Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Product Model Parameters：

Compatible excavator tonnage–50-55 tons
Working weight–5,400 kilograms
Required oil flow rate–240-290 liters per minute
Set pressure–280-300 bar
Working pressure–230-260 bar
Impact energy–25,475 joules
Impact frequency–130-180 times per minute
Oil pipe diameter–1-1/4 inch
Noise level–125 decibels
Diameter of the chisel–195 millimeters

Factory Strength – Global Delivery

Service
Provide “Specialized Analysis for Hard Rock Working Conditions”. Based on the rock samples or mechanical parameters provided by the customer, our technical team can assess the expected crushing efficiency and wear rate of consumables (chisels) of DM195 under this working condition, providing decision-making references for the customer.
After-sales warranty
METDEEM afford 1 year warranty for the product,meet the after-sales service demands of customers
For the DM195’s application in the mining of extremely hard rock, the “Enhanced Warranty for Core Power Components” option is provided, offering more favorable warranty conditions for components such as pistons and cylinder blocks that bear the maximum load.
OEM&ODM
We can provide customers specializing in hard rock mining with the “Super Wear-resistant chisels” jointly developed by us.
Their lifespan is significantly longer than that of conventional products, serving as a complete hard rock crushing solution package.
Compatible Brand excavator
The compatible Modelis the same as the DM190, but the factory pressure setting is recommended to be higher to fully leverage its potential of 25,475 joules.
We offer targeted guidance on debugging parameters.
Factory Qualification
The R&D center of our national high-tech enterprise has carried out microalloying improvements on the piston material of DM195 and adopted ultra-deep frequency quenching technology, making the toughness and wear resistance of its core impact components reach the top level in the industry.
