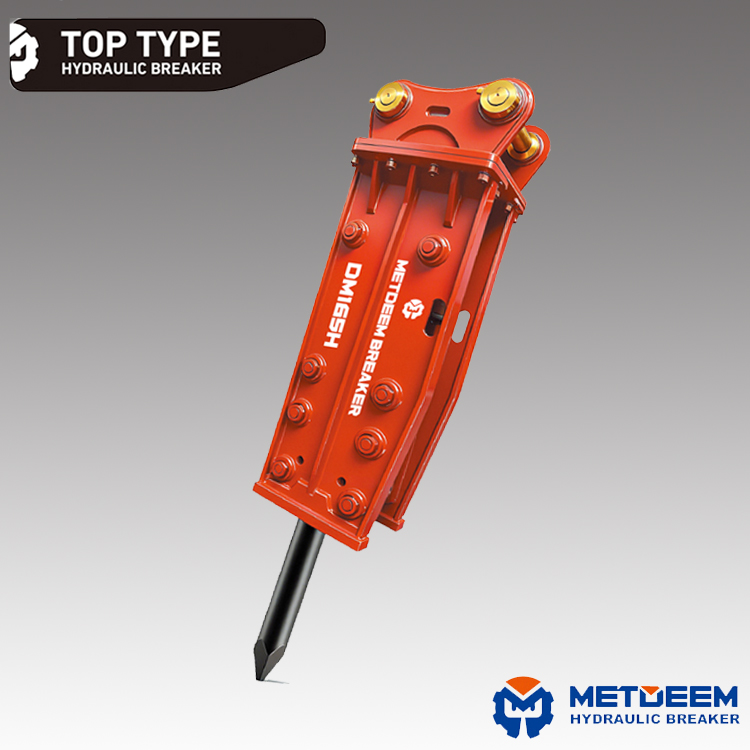

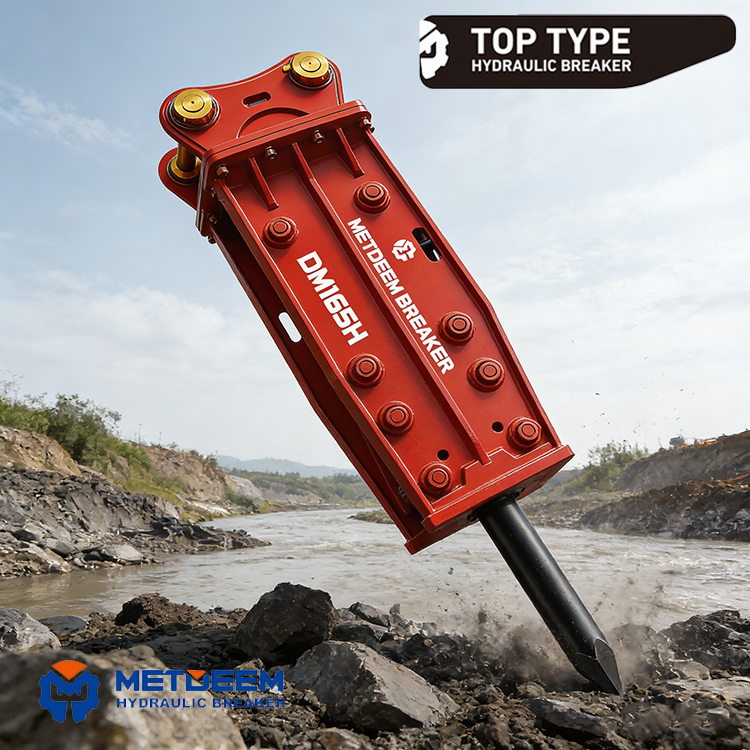

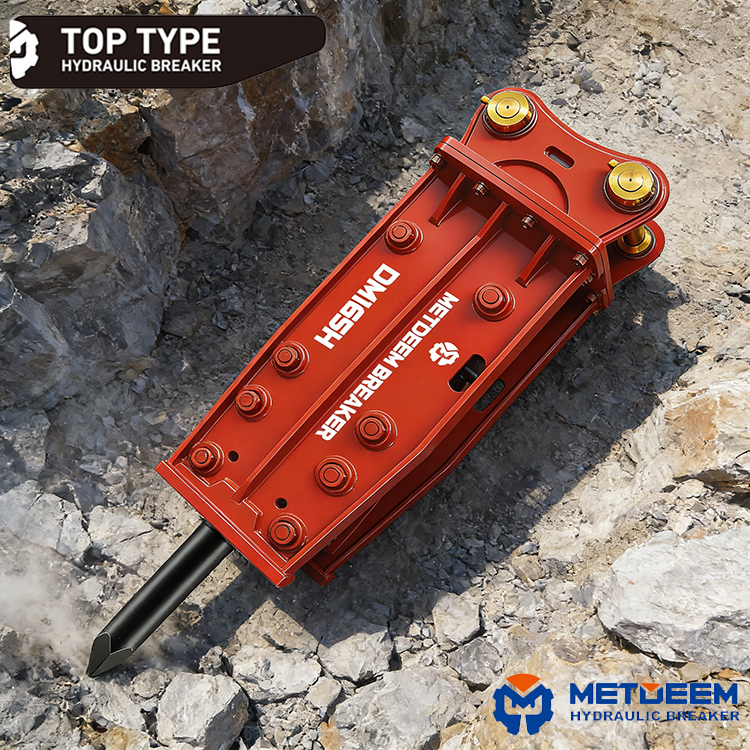

METDEEM Factory Customizable DM165 Hydraulic Breaker Top Type for CAT SANY Excavator

METDEEM Factory Customizable DM165 Hydraulic Breaker Top Type for CAT SANY Excavator

Experts recommend：

Brand–-METDEEM
Origin–Yantai, Shandong Province, China.
Model–Top type breaker
Size–The Diameter of the chisel is 165mm.
Standard–CE certification.
Payment method–Provide bulk purchasing solutions suitable for mining customers.
Supply capacity–Specialized production is carried out according to the order plan, with stable quality.
Core advantages–Flexible heavy equipment for hard rock mines, 8812 joules dedicated to heavy impact, fully reinforced structure, specially designed for hard rock mining in complex terrains and precise secondary crushing.

Chat Now

Chat Now

Core advantages and Highlights of the Product：

- Flexible heavy equipment for hard rock mines—
  With an Impact energy as high as 8812 joules, 30-40 ton excavators can penetrate the mine at right angles, efficiently crushing the edges, bottoms or narrow areas of hard ore veins.
  Its flexibility makes up for the operational limitations of large triangular hammers in some complex mining terrains, achieving precise mining that “hits exactly where you point”.
- Low frequency and high energy, remarkable impact effect—
  With an Impact frequency of 250-400 times per minute, it focuses on fully transmitting huge energy.
  Each strike is steady and powerful, with an immediate effect on the crushing of hard rocks such as granite and basalt, effectively enhancing the control level of ore Size and the efficiency of secondary crushing.
- Designed for high-intensity lateral impact—
  In response to the frequent lateral crushing conditions in mines, the box body, rotating mechanism and all connecting components have been comprehensively strengthened.
  By adopting alloy materials of higher strength and a more scientific force-bearing structure, the equipment remains robust and durable even when subjected to huge lateral reaction forces for a long time.

METDEEM brand Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Product Model Parameters:

Compatible excavator tonnage–30-40 tons
Working weight–2,983 kilograms
Required oil flow rate–200-260 liters per minute
Set pressure–240-260 bar
Working pressure–180-200 bar
Impact energy–8812 joules
Impact frequency–250-400 times per minute
Oil pipe diameter–1-1/4 inch
Noise level–123 decibels
Diameter of the chisel–165 millimeters

Factory Strength – Global Delivery–Integrated&Open Type

Service
We offer online access to the “Mine Working Conditions Application Knowledge Base”, which includes practical content such as suggestions on drill pipe selection for DM165 in hard rock mining and techniques for crushing angles under different rock strata, helping operators quickly improve their operational skills.
After-sales warranty
We are fully confident in the quality of the structural components of DM165.
We offer 12monthwarranty options for the main load-bearing structural components.
Our global logistics network ensures the efficient transportation of heavy accessories, such as box assemblies, to major mining areas.
OEM&ODM
We can provide large mining groups with a “mine customized version” of DM165, such as enhanced anti-flying rock guard plates and enhanced air filtration systems suitable for high-dust environments, as value-added configurations for selection.
Compatible brand excavators
Perfectly matched with 40-ton heavy-duty excavators such as Liebherr R 938, Caterpillar 349, and Sany SY395.
We understand the core position of these devices in the mine and ensure that DM165 can be their reliable and efficient partner.
Factory Qualification
We produce the core impact components of DM165 by adopting an integrated process of “forging + finishing”.
The streamlined fiber structure is obtained through precision forging and then finely processed by CNC machine tools, making the components possess extremely high strength and precision, ensuring durability from the source.
