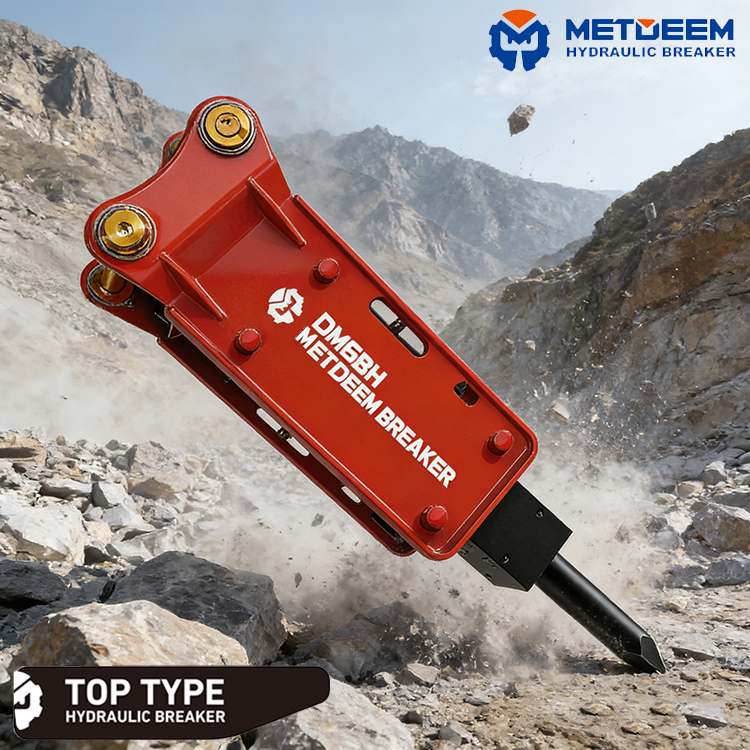

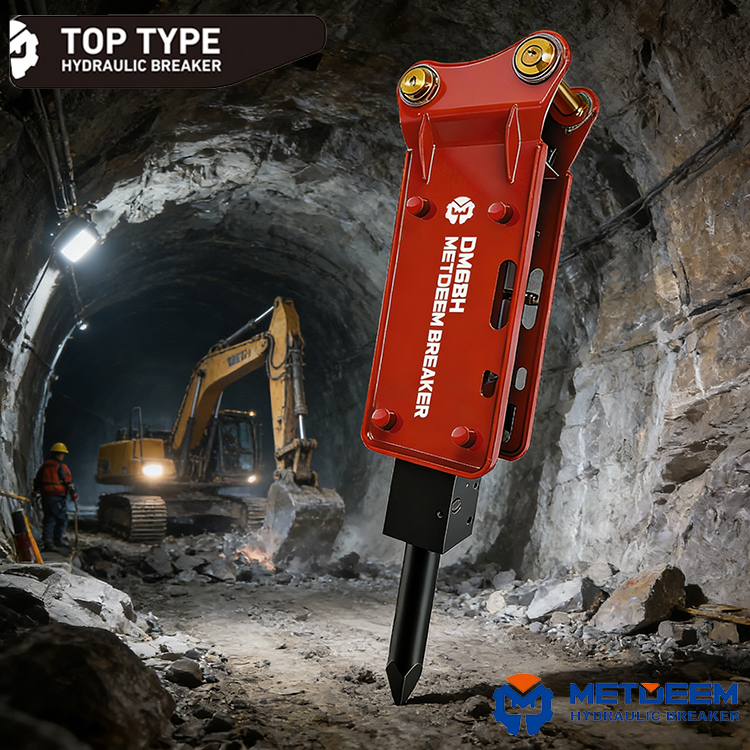

METDEEM High Efficiency DM68 Hydraulic Breaker Top Type for CAT JCB Excavator

Experts recommend：

Brand-– METDEEM.
Origin– Yantai, Shandong Province, China.
Model— Top type breaker DM68.
Size— chisel diameter 68mm.
Standard— CE certification.
Payment method— Mainstream international Payment methods are accepted.
Supply capacity— Stable production capacity, capable of meeting the continuous order demands.
Core advantages— A powerful tool for medium-Sized narrow space operations, with a powerful 542 joule force and a right-angle design for efficient force transmission. Specifically designed for factory renovations, underground projects, and complex terrain crushing.

Chat Now

Chat Now

Core advantages and Highlights of the Product

A powerful entry-level tool for medium-sized narrow working conditions—
With an Impact energy of 542 joules, it endows excavators of 3.0 to 5.5 tons with the ability to handle harder objects in confined Spaces.

For instance, the interior demolition of factory buildings, the renovation of underground garages, or the partial repair of retaining walls along highways, its right-angled shape is a prerequisite for entering these scenarios.

Outstanding force transmission efficiency—

The right-angle design makes it easier for the excavator’s large arm, hammer body and the crushed object to form an ideal force straight line, reducing the deflection loss of energy during transmission and ensuring that each 542 joule strike can be more concentrated on the target point.

Enhanced response to complex reaction forces—

In response to the complex torsional forces that may occur during lateral crushing, the box and connection parts of the DM68 have been specifically strengthened to ensure that the equipment remains stable and reliable as a whole when crushing irregular walls or performing angular operations.

METDEEM brand Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Product Model Parameters：

Compatible excavator tonnage— 3.0-5.5 tons
Working weight— 247 kilograms
Required oil flow rate— 30-60 liters per minute
Set pressure— 150 bar
Working pressure— 100-130 bar
Impact energy— 542 joules
Impact frequency— 500-1000 times per minute
Oil pipe diameter— 1/2 inch
Noise level— 117 decibels
Diameter of the chisel— 68 millimeters

Factory Strength – Global Delivery–Integrated&Open Type

Service
We have professional online technical support engineers who can answer your questions about the best operation techniques of DM68 under specific working conditions such as different wall materials , pressure setting suggestions, and the initial steps for daily fault diagnosis.
After-sales warranty
Metdeem warranty period is 12 months,meet the after-sales service demands of customers.
We guarantee the authenticity and interchangeability of all factory parts.
We provide an electronic part explosion drawing of DM68.
Customers can accurately describe the required accessory numbers based on this drawing to ensure the accuracy of their orders.
OEM&ODM
For regional distributors who wish to establish their own brands, we can offer a complete ODM solution for DM68, including services such as localized design of product nameplates and instruction manuals in accordance with local regulatory requirements.
Compatible brand excavators
Suitable for mainstream 5-ton excavators such as Hyundai, Doosan, and Liugong.
We have accumulated a large amount of adaptation data and can provide reference tables for the matching of hydraulic flow and pressure of common models to help customers optimize equipment Settings.
Factory Qualification
As a national high-tech enterprise, we attach great importance to the reliability design of our products.
The key hinge pin shaft of DM68 is made of special materials and undergoes heat treatment processes, featuring high wear resistance and an extended service life under frequent swinging operations.
