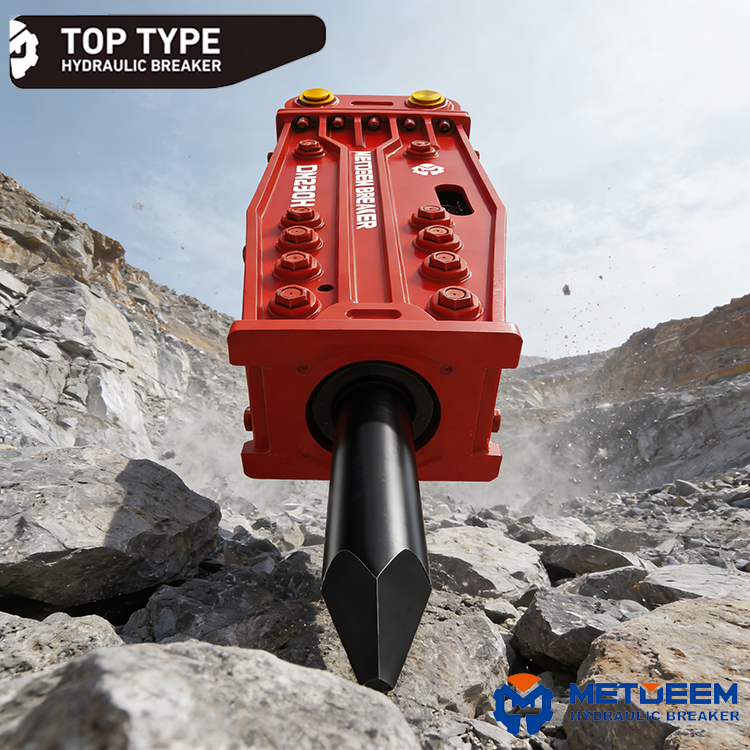

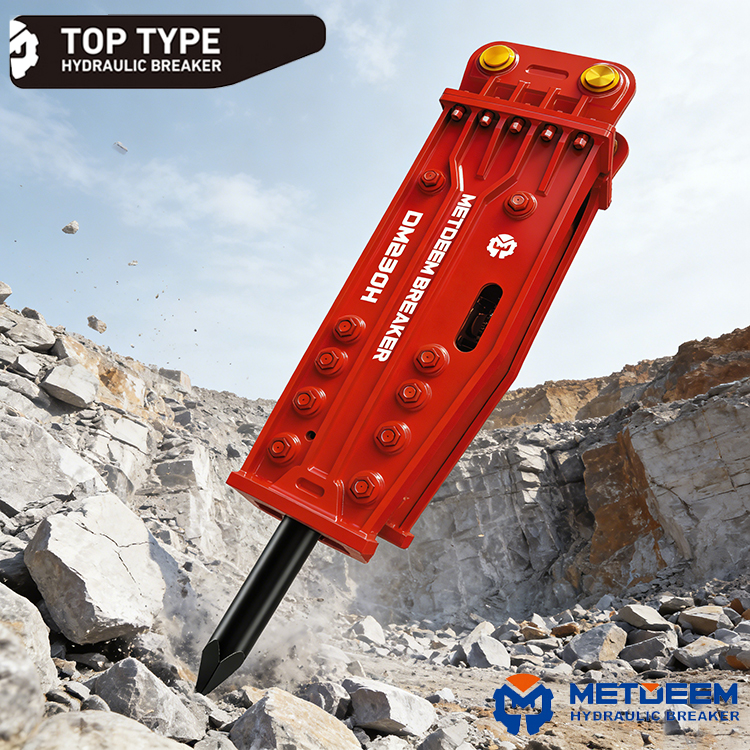

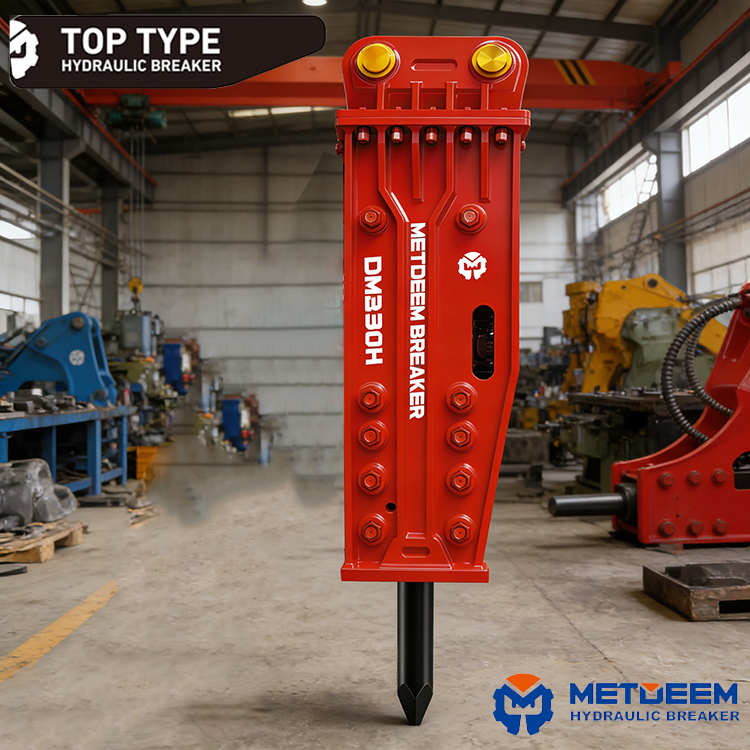

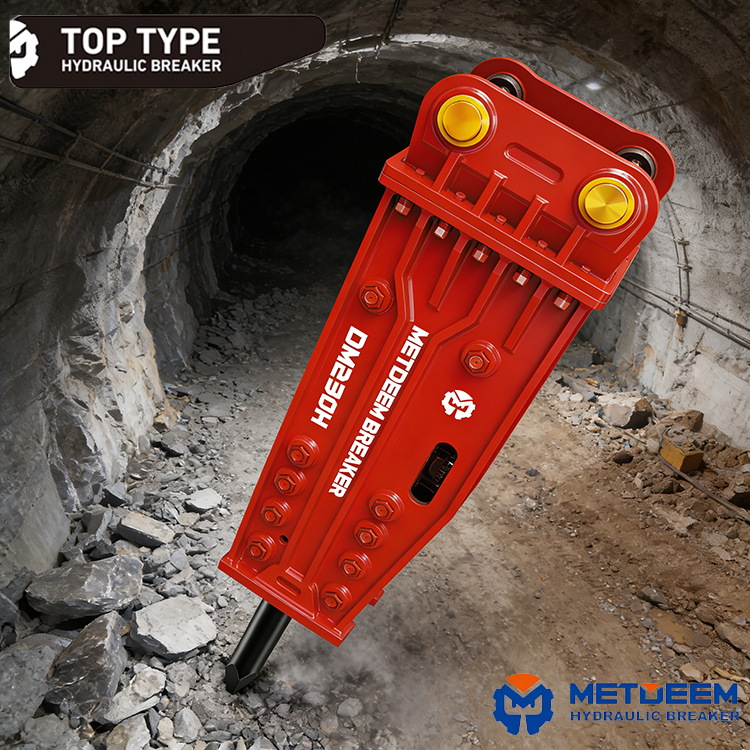

METDEEM Quality Guarantee DM230 Hydraulic Breaker Top Type for CAT JCB Excavator

METDEEM Quality Guarantee DM230 Hydraulic Breaker Top Type for CAT JCB Excavator

Experts recommend：

Brand-– METDEEM.
Origin– Yantai, Shandong Province, China.
Model— Top type breaker DM230.
Size— 230mm Diameter of the chisel.
Standard— CE certification.
Payment method— The terms of the international trade contract applicable to the procurement of super-large equipment.
Supply capacity— It represents the highest manufacturing Standard of our factory and can complete production and delivery as planned.
Core advantages— The ultimate form of power of the right-angle breaker, 40207 joules for splitting mountains and rocks, provides top-level protection while maintaining outstanding flexibility, specially designed for super-large mines and special engineering projects.

Chat Now

Chat Now

Core advantages and Highlights of the Product：

The peak of power in the right-angle form
The Impact energy reaches an astonishing 40,207 joules, making it the undisputed king in the Top type breaker series.
Designed specifically for 70-80 ton super-large excavators, it aims to provide an ultimate solution that combines power and Angle for primary auxiliary crushing and giant obstacle removal in open-pit mines.
Define the structural Standardfor ultimate impact
The repeated action of energy exceeding 40,000 joules poses the ultimate test to the equipment structure.
The DM230 adopts a full-section strengthened design, special alloy materials and the most stringent manufacturing tolerance control. Its structural integrity has set a new benchmark for durability in the industry.
A Modelof systematic engineering protection
The core system composed of a large external displacement directional valve and multiple accumulator groups not only ensures the efficient and continuous output of impact force but also serves as a crucial buffer barrier for the hydraulic system of the excavator’s main body, providing excellent system protection while outputting destructive force.

METDEEM brand Hydraulic Breakers is recognized by global customers because of its high performance in safety and durability.

Product Model Parameters：

Compatible excavator tonnage–70-80 tons
Working weight–10,100 kilograms
Required oil flow rate–350-400 liters per minute
Set pressure–300-320 bar
Working pressure–260-280 bar
Impact energy–40,207 joules
Impact frequency–110-150 times per minute
Oil pipe diameter–1-1/4 inch
Noise level–125 decibels
Diameter of the chisel–230 millimeters

Factory Strength – Global Delivery–Integrated&Open Type

Service
We have equipped the DM230 with an extremely detailed exclusive “Product User Manual” and “Safety Operation Guide”, which clearly and Standardly Standardize the entire process of installation, commissioning, operation, maintenance, transportation and storage in the form of pictures, text and diagrams, to ensure that customers can use the equipment safely and correctly to the greatest extent.
After-sales warranty
We offer a clear guarantee of product quality, the warranty period is 12 months.
For super-large equipment like DM230, we promise that all replacement parts we supply are of original factory specifications to ensure the long-term performance and operational safety of the equipment.
OEM&ODM
As a factory with the capacity to manufacture heavy equipment, we accept OEM inquiries for the DM230 from global mining groups or large engineering companies, and can customize the appearance and interface to a limited extent based on customer requirements.
Compatible brand excavators
The product design is compatible with 70-80 ton super-large excavators of brands such as Caterpillar, Komatsu, and Liebherr.
As a manufacturer, we provide the basic technical data of the products and support professionals in installation and adaptation.
Factory qualifications
Our production system strictly adheres to international Standards, and the CE certification ensures the basic safety requirements of our products.
The dedicated production line for CNC machine tools and the strict process discipline within the factory are the fundamental guarantee for the consistent quality of complex and heavy-duty products like DM230.
