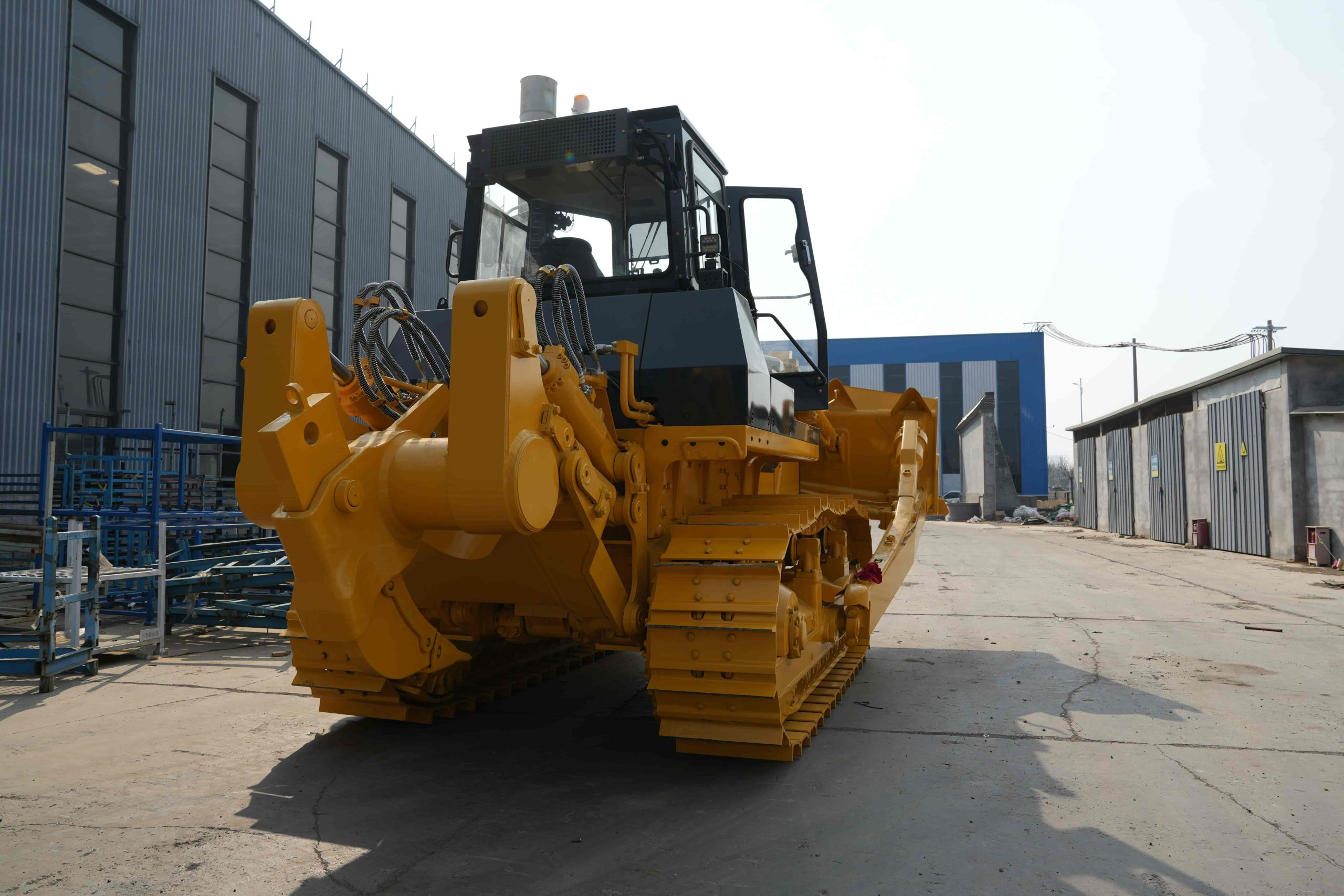

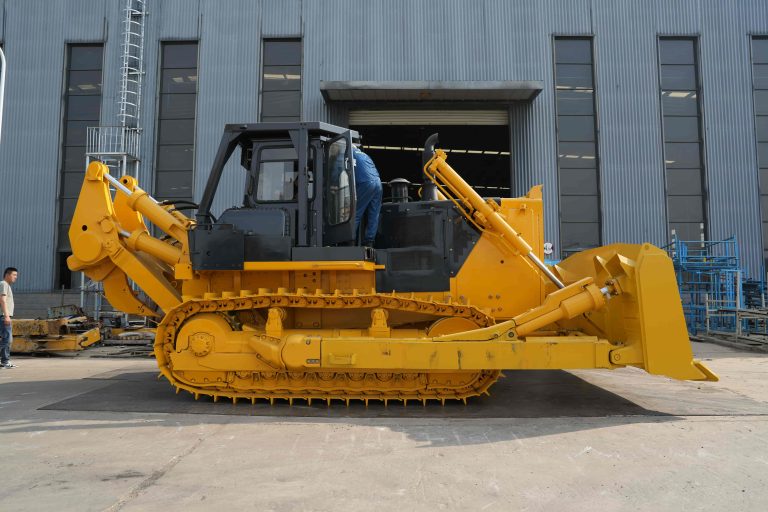

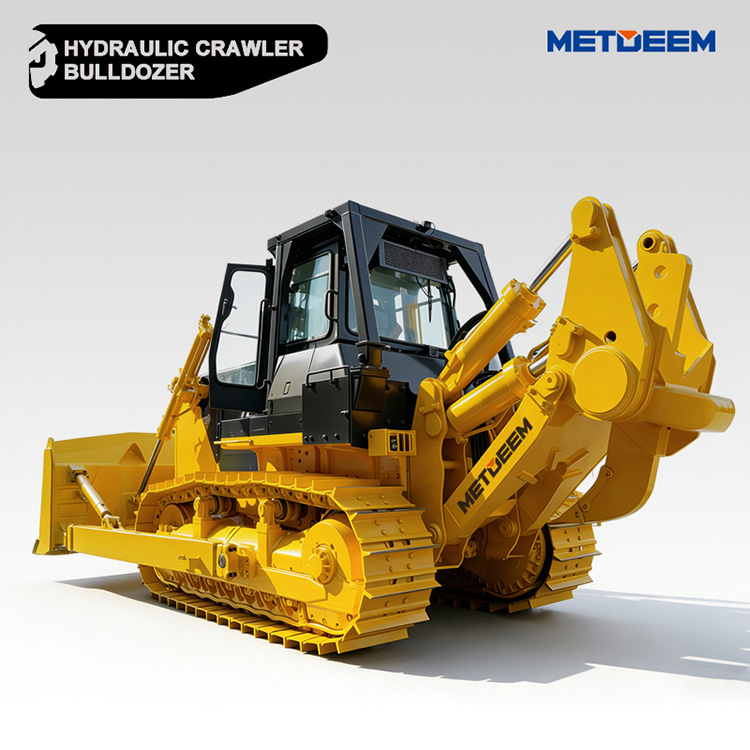

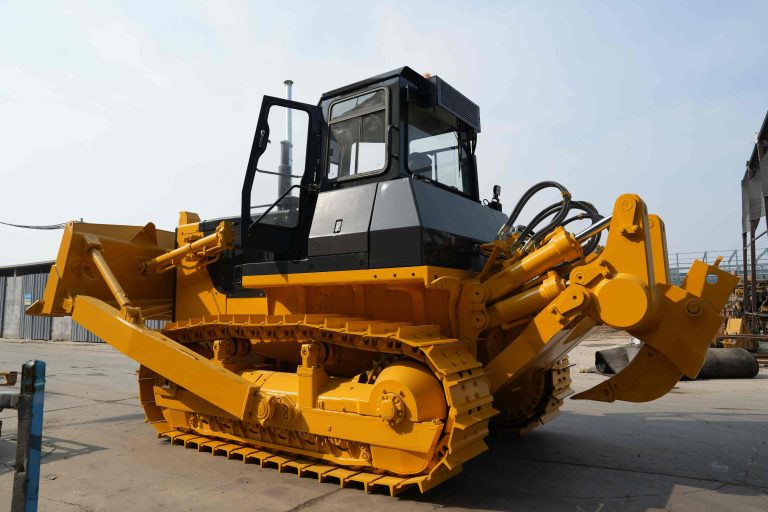

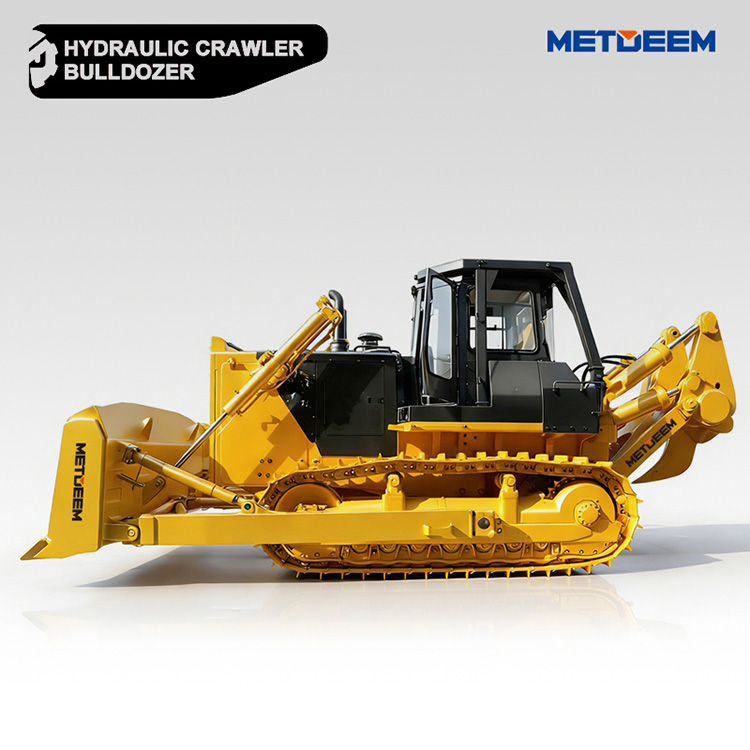

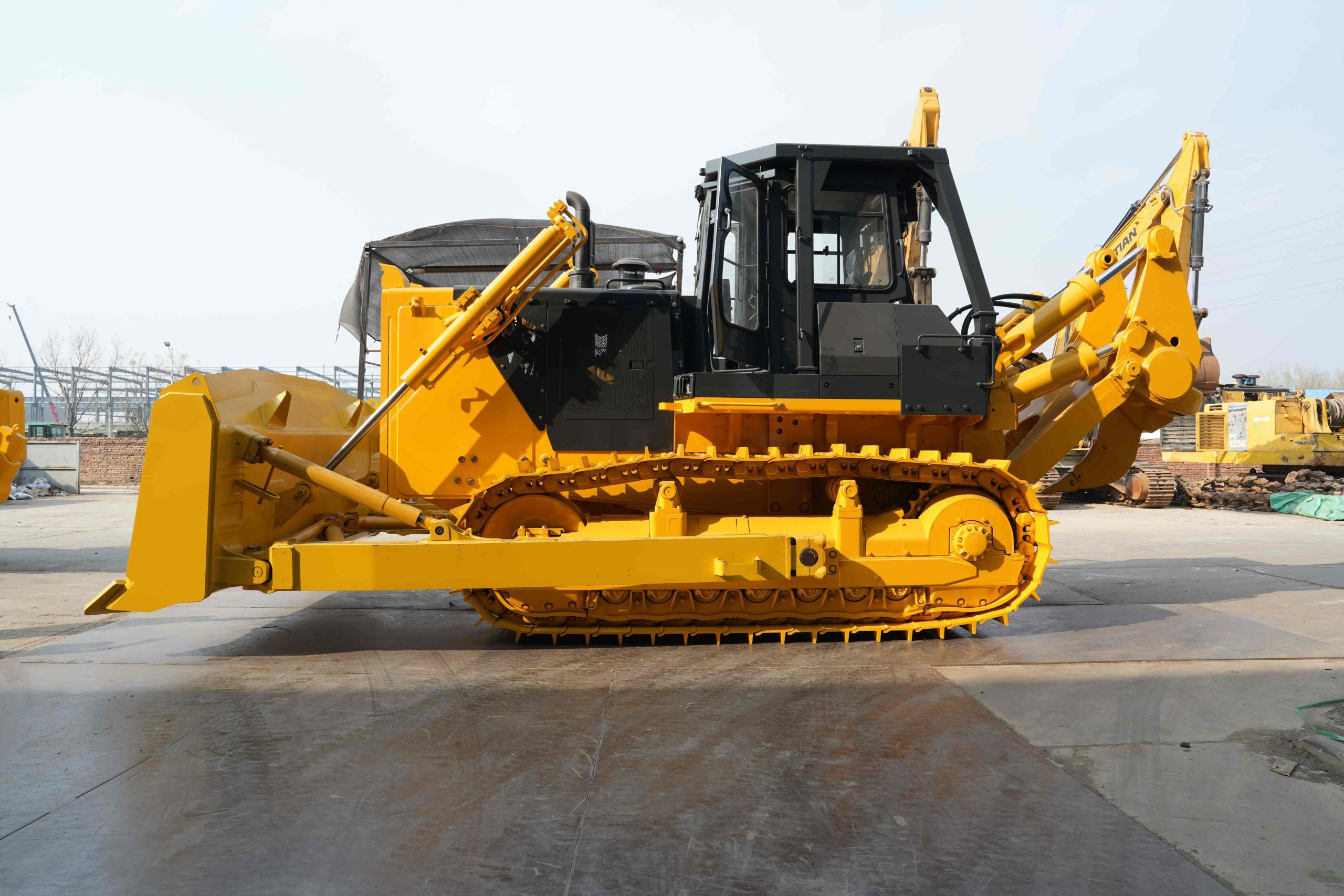

DM32 Bulldozers

DM32 Bulldozers

Overall weight(kg)：37200

Engine brand：Cummins NTA855-C360S10 QSNT-C345S30

Rated power/rated speed(kW/rpm)：257/2000

Experts recommend：The METDEEM®32 bulldozer is an upgraded product developed and designed according to the market situation.
Its technology and reliability have reached the leading level in China. The chassis of the whole machine has been tested by domestic and foreign markets , with excellent quality and stable and reliable performance. It is mainly suitable for water conservancy and hydropower, metallurgical mines, road traffic, ports and docks, oil and coal, forest logging, and is an indispensable mechanical equipment for national defense projects, urban and rural roads and other construction and water conservancy construction.

Chat Now

Chat Now

DM32 Bulldozers

Technical features

Power system

Equipped with WP12/QSNT-C345 electronic control engine, which meets the emission requirements of the national non-road machinery country III, with strong power, high efficiency and energy saving, and low maintenance cost;
The torque reserve coefficient is large, and the rated power reaches 257kW;

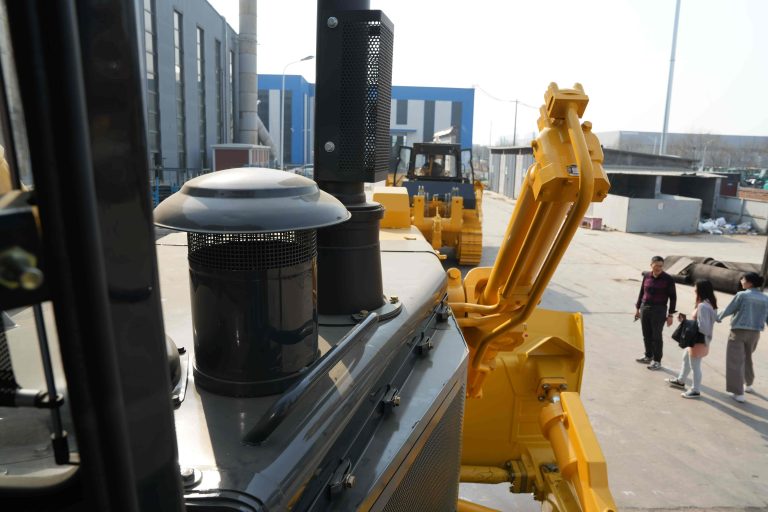

Adopt radial seal air intake system to effectively improve the service life of the engine.

Dynamic system

The transmission system is perfectly matched with the engine curve, with wider high-efficiency area and higher transmission efficiency;
Transmission system has been tested for a long time in the market, with stable performance and reliable quality.

Work adaptability

Stable and reliable chassis system, suitable for all kinds of harsh working conditions;
The product has long grounding length, large ground clearance, smooth driving and good passability;

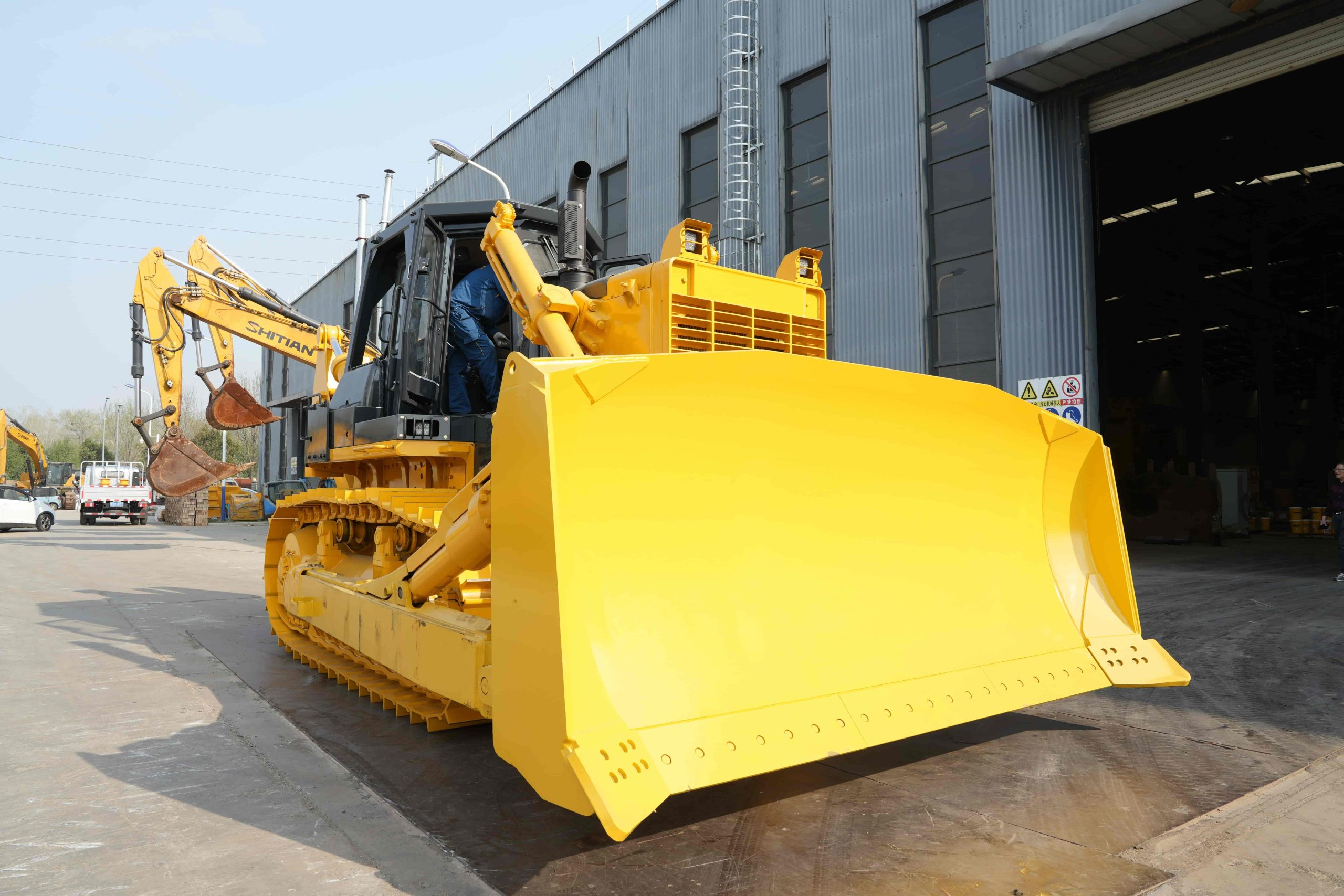

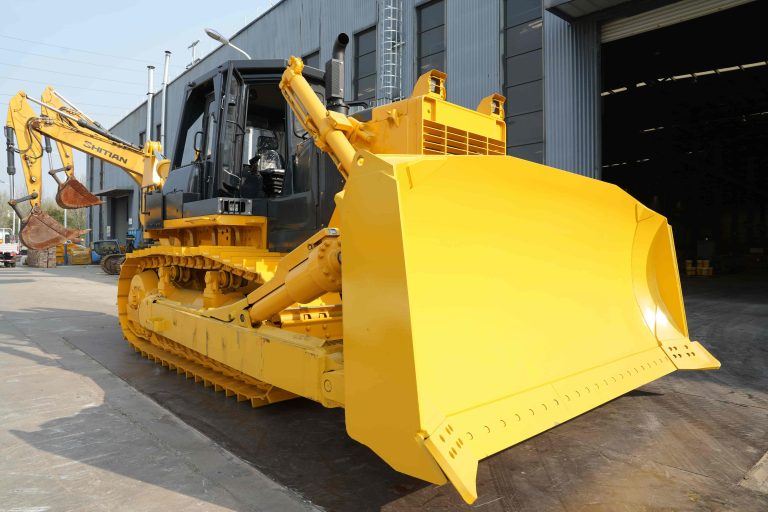

According to the specific working conditions, it can be equipped with a straight shovel, a semi-U shovel, a U shovel, a corner shovel, a coal shovel, a rock shovel, a sanitation shovel, a scarifier, a towing frame, etc., which has stronger working adaptability and comes standard with LED working lights.Improve the lighting ability of night construction, which is safer and more reliable.

Maintainability

The structural parts inherit the excellent quality of mature products of Shanplatinum;
The electrical wiring harness is protected by corrugated pipe, and the wire divider is used to divide the wires, so the protection level is high;
Open side shield for large space, which is more convenient for maintenance;
The lubrication and maintenance point of the whole machine is moved to the outside of the machine body, which makes the maintenance convenient and quick.Driving environment
Hexahedral cab, with large internal space and wide field of vision, can be equipped with FOPS/ ROPS as required, which is safe and reliable;
Electronically control the hand and foot throttles, making the operation more accurate and comfortable;
Equipped with intelligent display and control terminals, heating and cooling air conditioners, etc., to provide a richer humanized driving experience, so that you can know the system status at any time, which is intelligent and convenient.

基本参数(Basic parameters)		性能参数（Performance specifications）
工作重量 (KG)Workingweight	37200	爬坡性能 (°) Climbing performance	30
发动机额定功率 (kw/rpm)power	257/2000	松土器型式 Type of scarifier	单齿三齿
铲刀容量(m3) Blade capacity	直10半U11.7角6.2	松土深度(mm) Loosening depth	单470.三543
发动机型号 Engine Model	Cummins NTA855-C360S10 QSNT-C345S30	松土器提升高度(mm) Lifting height of scarifier	单995.三883
整机尺寸(Dimensions)		作业范围及参数（Operating scope and parameters）
总长(mm) Overall length	6535	铲刀提升高度(mm) Blade lifting height	1560/1560/1703
总宽度(mm) Overall width	4150	铲刀深度(mm) Blade depth	560/560/630
总高度(mm) Transport height	3515	前进各档速度 (km/h) Forward speed of each gear	F1:0~3.6
履带板数量 (每边) Number of track shoes	41		F2:0~6.6
履带板宽度(mm) Track shoe width	560		F3·0~11.5
履带中心距(mm) Track center distance	2140
